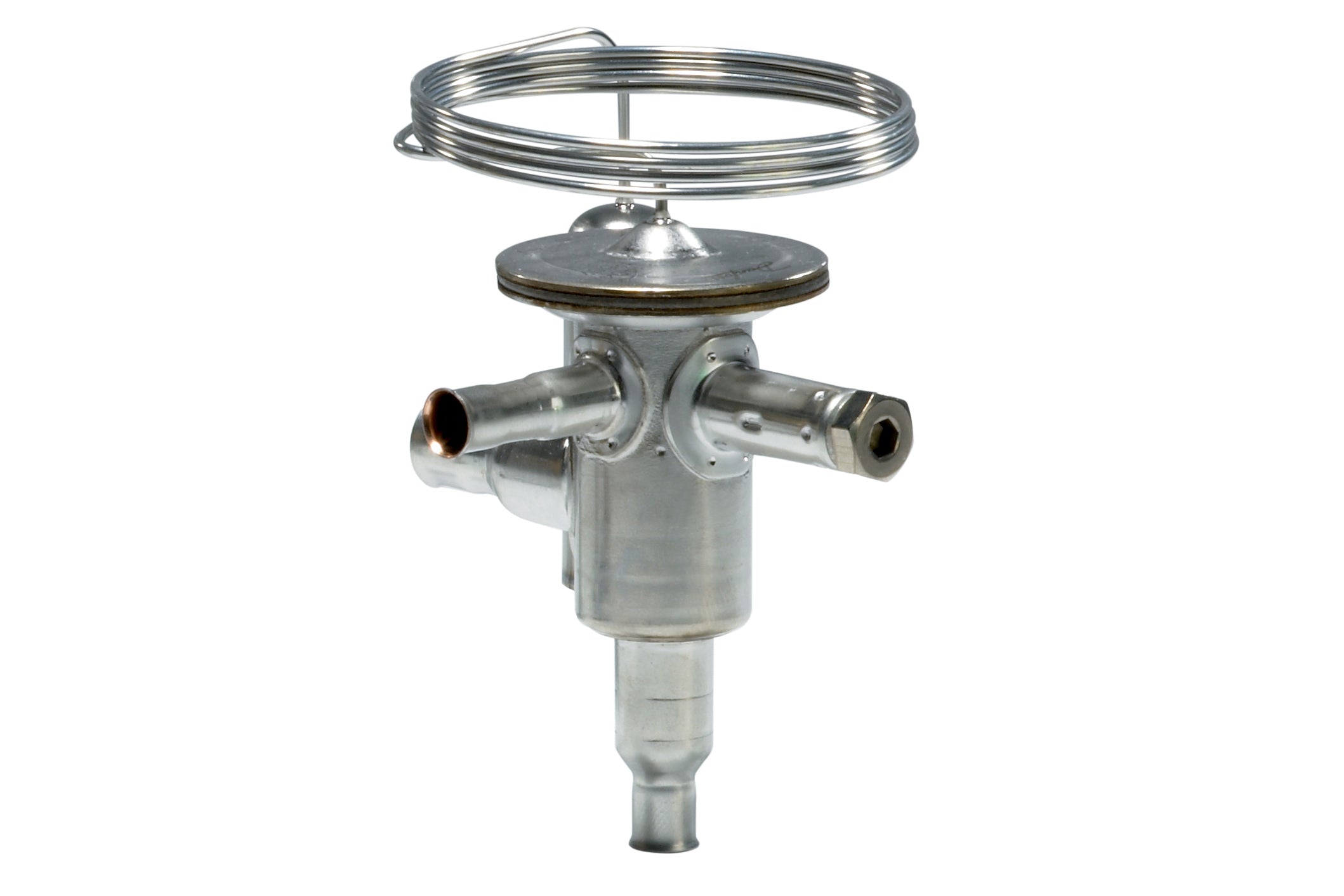

This Danfoss thermostatic expansion valve (TXV) is designed for use with R410A refrigerant. It features an inlet size of 3/8" and an outlet size of 1/2" with ODF solder connections. The TXV regulates the injection of refrigerant liquid into evaporators, responding to the cooling demand by controlling the flow based on the evaporator outlet temperature. This component is commonly used in air conditioning and refrigeration applications to ensure efficient operation and maintain desired temperatures within systems.
|
|
EAC, LLC CDC TYSK, UL |
| Body material |
Stainless steel |
| Capillary tube length [in] |
31 in |
| Capillary tube length [mm] |
800 mm |
| Connection material |
Bi-metal: Steel/copper |
| Direction |
Angleway |
| Equalization connection type |
Solder, ODF |
| Equalization size [in] |
1/4 in |
| Flow direction |
Single-flow |
| Flow direction indicator |
Laser engraved 1-way arrow |
| Identical product |
068U1975 |
| In scope of WEEE and contain batteries |
No |
| Inlet connection type |
Solder, ODF |
| Inlet size [in] |
3/8 in |
| Max. Working Pressure [bar] |
45.5 bar |
| Max. Working Pressure [psig] |
660 psig |
| Orifice capacities [kW] |
26 kW |
| Orifice capacities [TR] |
7.5 TR |
| Orifice size |
9 |
| Outlet connection type |
Solder, ODF |
|
Outlet size [in]
|
1/2 in |
| Parts included |
Bulb strap |
| Pressure equalization |
Externally equalized |
| Rated cap. cond. Range N [IMP] |
OS=7.2 ºF, tcond=100 ºF, tevap=40 ºF, tliq=98 ºF |
| Rated cap. cond. Range N [SI] |
OS=4K, tcond=38 ºC, tevap=4.4 ºC, tliq=37 ºC |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
| Refrigerants |
R410A |
| Serviceable |
No |
| Static Superheat (SS) [°C] |
4°C |
| Static Superheat (SS) [°F] |
7.2°F |
| Superheat setting |
Adjustable |
| Temperature range [°C] [Max] |
10°C |
| Temperature range [°C] [Min] |
-40°C |
| Temperature range [°F] [Max] |
50°F |
| Temperature range [°F] [Min] |
-40°F |
| Type |
TUBE |
| UL approved refrigerants |
R410A |
