Please note this item is made to order and additional lead-times may apply.

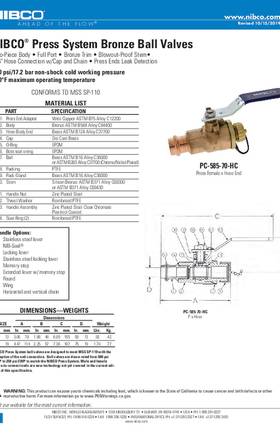

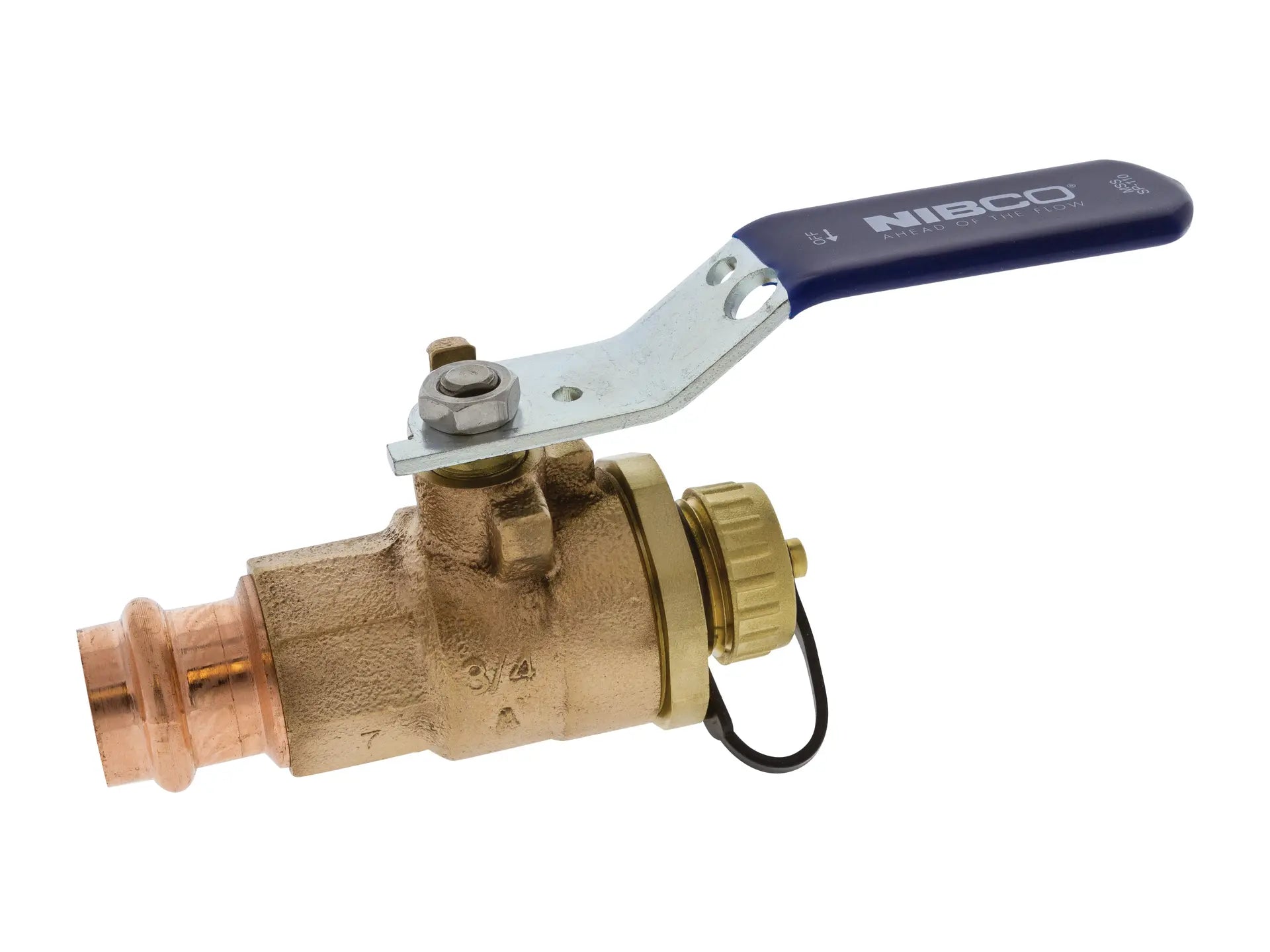

This NIBCO Press System bronze ball valve includes a hose cap and chain attached to the valve. The valve features press-to-connect end connections and a new design that allows a leak to occur during testing if the press connection is not properly crimped. When properly crimped a unique "N" witness mark is clearly visible. The full-port ball valve is ideal for commercial and light industrial applications that require garden hose connections for drainage purposes. The valve is equipped with reinforced PTFE seat rings and a chrome-plated brass ball. This NIBCO Press System is user friendly, quick and easy to install. The press end connections with an inboard bead and EPDM O-rings allow quick and easy joinery to the piping system. Simply applying pressure from a press-fit tool tightens the O-ring onto the tube, ensuring a clean, permanent, watertight seal in seconds, with no flame, solder or flux. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. NIBCO Press System applies the proven performance of press technology to NIBCO valves and fittings - the most specified flow control products in the industry. This NIBCO Press System features a full range of precision engineered copper fittings, bronze valves, accessories, pressing tools, jaws and chains. NIBCO Press System valves are backed by a 5-year limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO is the preferred brand in the industry.
Features
- Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
- Maximum service temperature 250°F
- Two-piece body
- Full port
- Bronze trim
- Blowout-proof stem
- Reinforced PTFE seat rings
- Press female x hose end connections
- Press leak-detection feature
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-110
