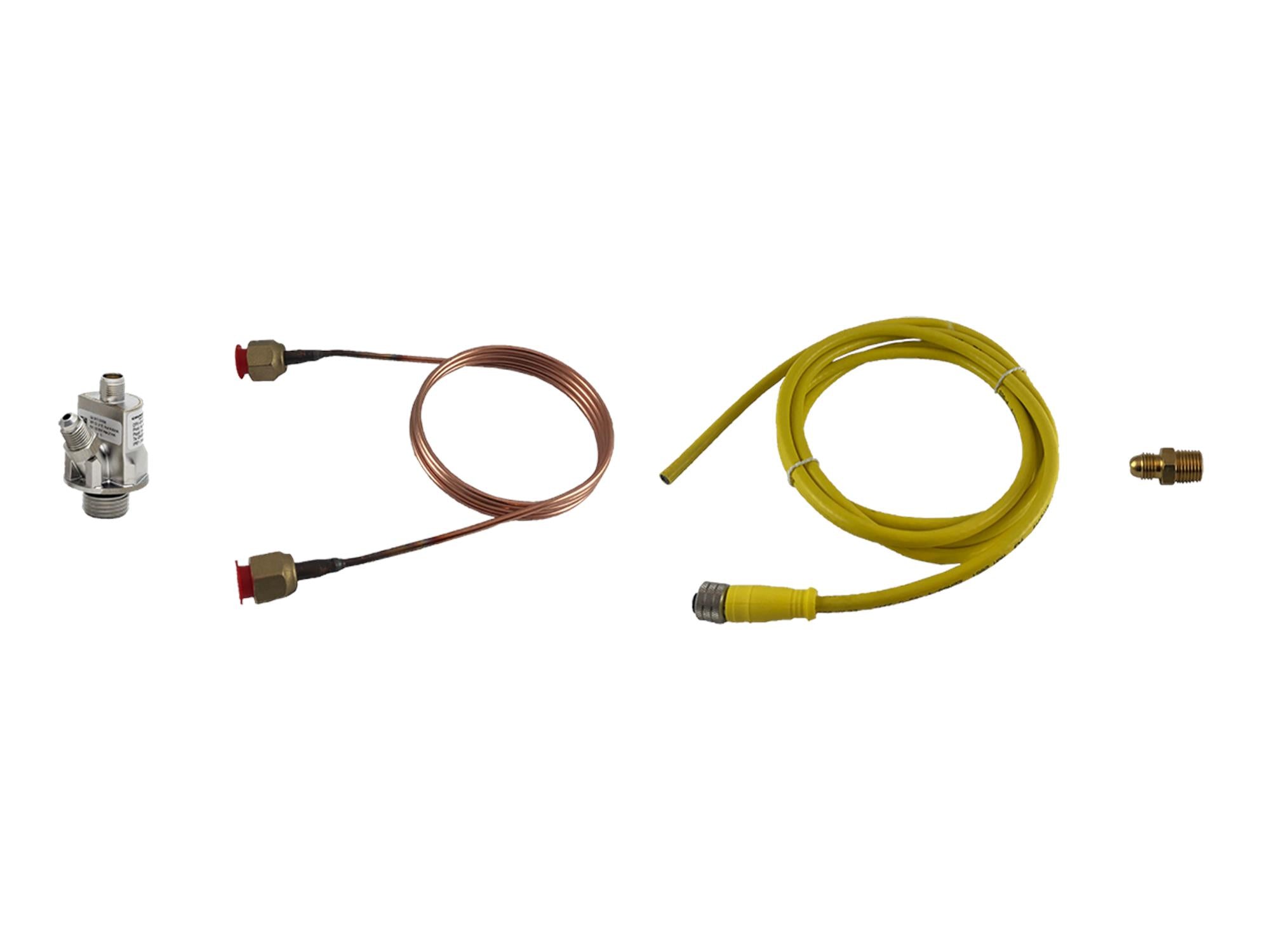

This differential pressure industrial sensor is designed to be robust and accurate, with a Silicoat coating for direct media contact and stable signal provision.
Specifications
Manufacturer
Grundfos
Part Number
97747204
Approvals
CCSAUS
Approvals for drinking water
AS4020, WRAS, UBA, ACS
Pressure differential functionality (Yes/No)
Y
Pressure relative functionality (Yes/No)
N
Flow functionality (Yes/No)
N
Temperature functionality (Yes/No)
Y
Minimum measuring pressure
0 psi
Maximum measuring pressure
23.21 psi
Minimum measuring temperature
32 °F
Maximum measuring temperature
212 °F
Range of ambient temperature
-13 .. 140 °F
Liquid temperature range
-22 .. 248 °F
Enclosure class (IEC 34-5)
IP67
Length of cable
6.56 ft
Minimum rated voltage DC
16.60 V
Maximum rated voltage DC
30.00 V
Net weight
0.83 lb
Gross weight
1.4 lb
Danish VVS No.
475274216
Finnish LVI No.
4534527
Custom tariff no.
9026.20.4000
