0.54 g |
Acid capacity [oz] |
0.019 oz |
Activated alum/Molec sieve [%] |
0%/100% |
Activated alumina [%] |
0% |
Approval |
UL |
Body material |
Steel |
Braket |
No |
Connection material |
Steel |
Core |
Solid core |
Core Size code |
08 cu.in. |
Core type |
Solid core |
Drying Cap [Drops of Water] 24°C |
R134a: 250, R290: --, R32: 211, R404A: 261, R407C: 243, R410A: 227, R507: 273 |
Drying Cap [Drops of Water] 52°C |
R134a: 229, R290: --, R32: 194, R404A: 247, R407C: 224, R410A: 201, R507: 246 |
Filter application |
High Moisture Capacity |
Flow Capacity KW |
R134a: 21.8, R290: --, R32: 33.2, R404A: 15.3, R407C: 22.3, R410A: 22.6, R507: 14.8 |
Flow Capacity TR |
R134a: 6.2, R290: --, R32: 9.4, R404A: 4.4, R407C: 6.3, R410A: 6.4, R507: 4.2 |
Flow direction indicator |
Label printed 1-way arrow |
Inlet 1 connection size [in] |
1/2 in |
Inlet connection size [mm] |
12 mm |
Inlet connection type |
Flare |
LiqCap Cond (ARI 710-2009)[SI] |
Delta p=0.07bar, tliq= 30°C, tvap=-15°C |
LiqCapCond (ARI 710-2009)[IMP] |
DELTA P=1PSI, tliq= 86°F, tvap=5°F |
Lubricants compatibility |
Oil-free applications |
Max. Working Pressure [bar] |
46 bar |
Max. Working Pressure [psig] |
667 psig |
Molecular sieve [%]
|
100% |
Net volume [foz US] |
3.87 Fluid Ounce US |
Net volume [l] |
0.114 L |
Oil free refrigerants |
R1234ze(E), R134a, R513A, R515A |
Outlet 1 connection size [in] |
1/2 in |
Outlet connection size [mm] |
12 mm |
Outlet connection type |
Flare |
Refrigerants |
R1233zd(E), R1234yf, R1234ze(E), R125, R134a, R22/R407C, R23, R32, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A |
Serviceable |
No |
Shell volume [foz US] |
5.85 Fluid Ounce US |
Shell volume [l] |
0.17 L |
Solid core surface [cm²] |
118 cm² |
Solid core surface [in²] |
18.29 in² |
Solid core volume [cm³] |
59 cm³ |
Solid core volume [in³] |
3.57 in³ |
Temperature range [°C] [Max] |
70°C |
Temperature range [°C] [Min] |
-40°C |
Temperature range [°F] [Max] |
160°F |
Temperature range [°F] [Min] |
-40°F |

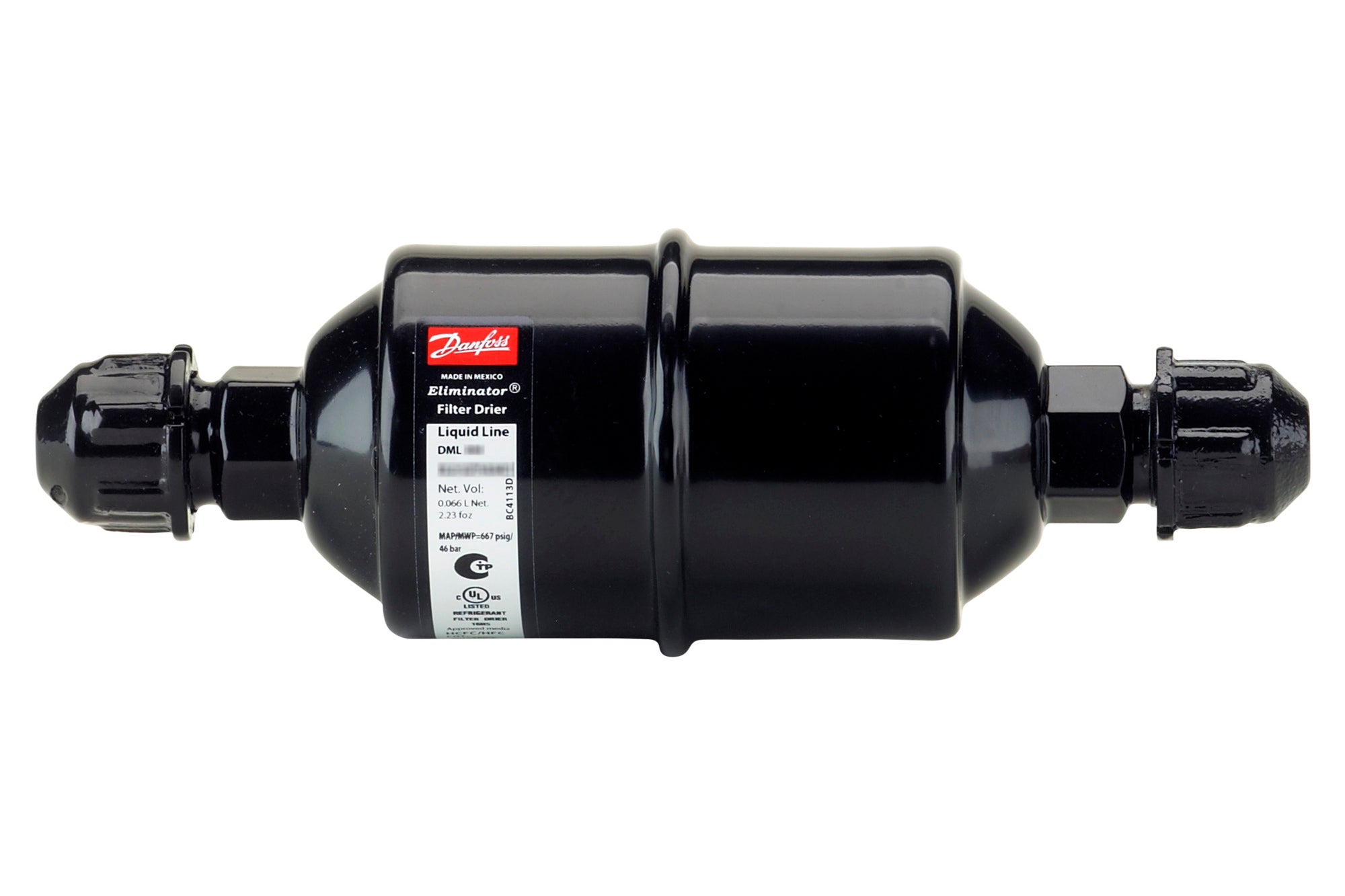

Type |
DML |
Type designation |
DML 084 |
UL approval file name |
SA6398 |
UL approved refrigerants |
R125, R134a, R22, R23, R404A, R407A, R407C, R407F, R410A, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R507A, R513A |
