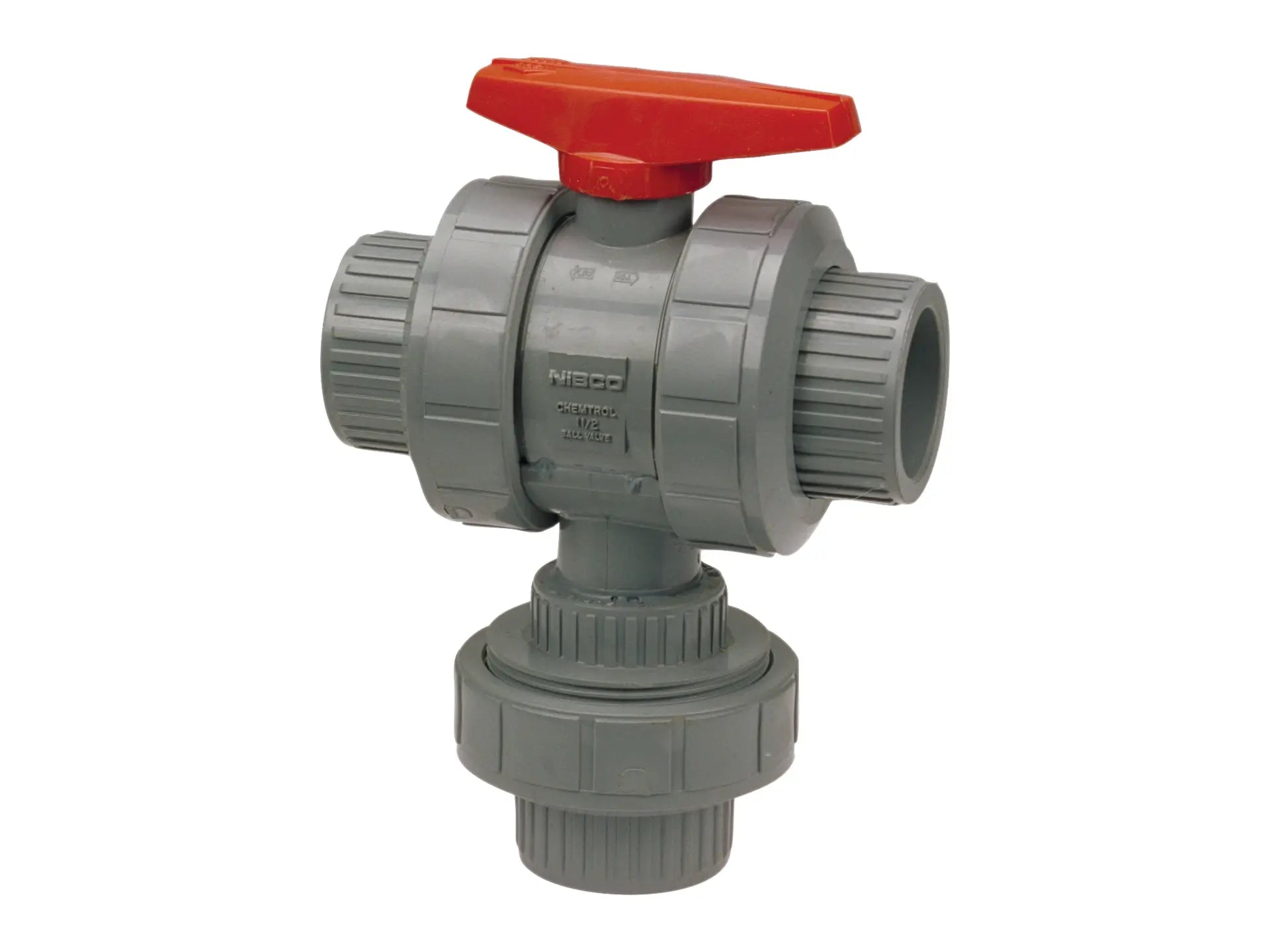

This Chemtrol True Union three-way, three-position multi-port ball valve is ideal for applications where flow diversion and on/off control is needed. The valve may also be used to alternately divert flow from either of the side run inlet ports to the branch center inlet port. The full port design produces minimum flow restriction with the lowest possible pressure drop for 90° porting. The valve's injection molded CPVC construction with FKM O-ring is ideal for use in systems for hot corrosive liquids, hot and cold water distribution, chemical processing, industrial plating, deionized water lines, chemical drainage, waste water treatment systems, and similar applications above the temperature range of PVC. The original Chemtrol True Union design allows the valve and operational components to be conveniently lifted from the piping system for repair or replacement. No disruption or length change of connected piping is required. The valve can be easily joined with the socket end connections. Please refer to Chemtrol technical data sheets, valve selection guides and catalogs for engineering and installation information. Corzan CPVC is the only CPVC material delivering market leading quality, reliability and performance for the most demanding applications. Chemtrol Corzan CPVC valves are lightweight, easy to install, maintenance-free and will not rust, scale, pit or corrode. Choose Chemtrol valves for the most reliable, versatile and economical valve option in commercial and industrial applications. Chemtrol ball valves are backed by a 1-year limited warranty. Because Chemtrol is a NIBCO brand the flow-control valves are unsurpassed in quality, performance and longevity.
Features
- Valve pressure rating 150 psi at 73°F water non-shock full-port
- Maximum service temperature 210°F
- True Union design
- Multi-port
- FKM O-ring
- Socket end connections
- Orange handle
- Do not use or test with compressed air or other gases
- ASTM F1970
- NSF/ANSI Standard 14
- NSF/ANSI Standard 61, Annex G
