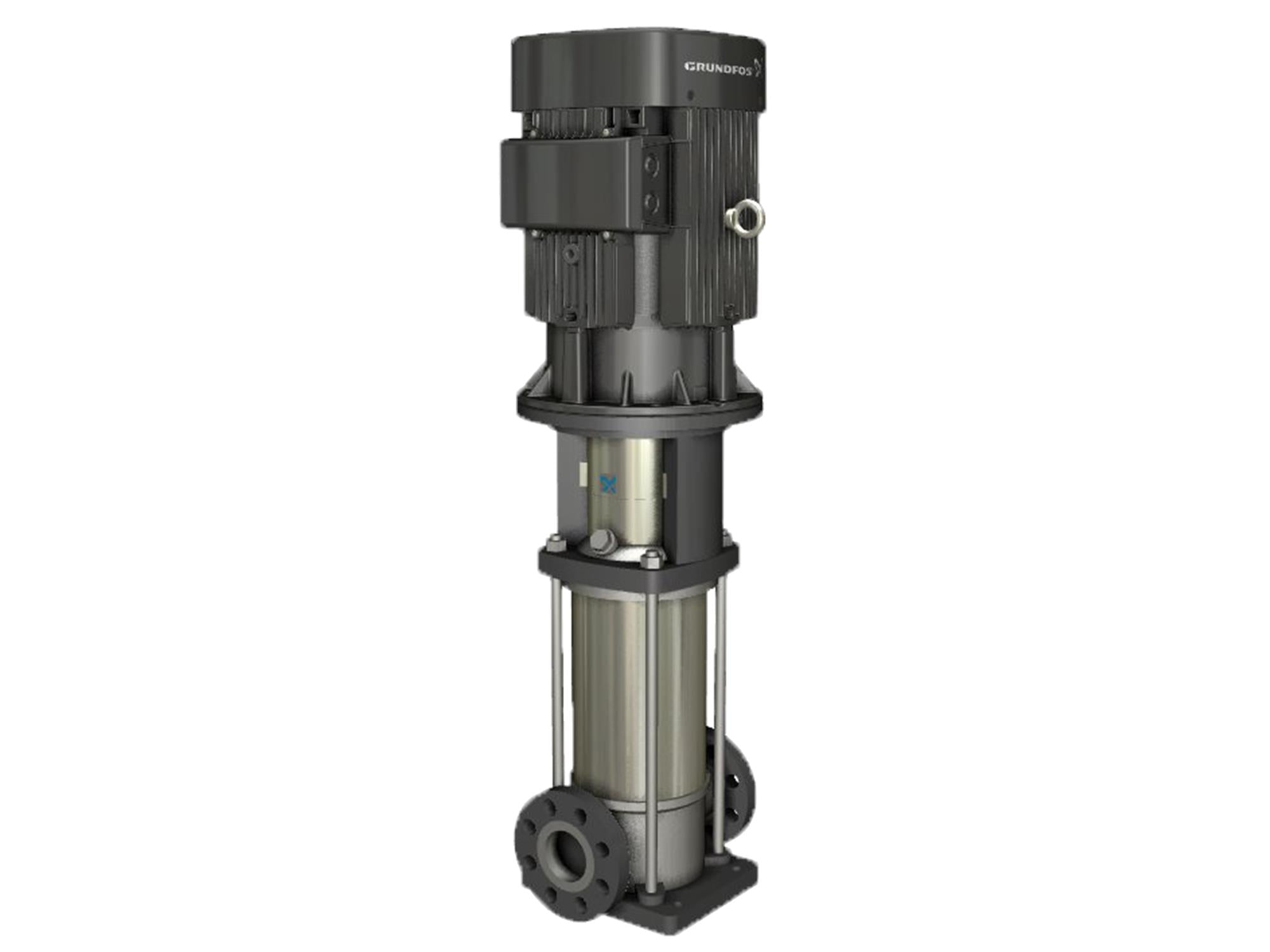

Grundfos 99255214, CRN5-15 B-FGJ-A-V-HQQV Vertical Multistage Pump

SKU: LSIY6L7YDQ Part Number: 99255214

Price:
Sale price$3,690.95 Regular price$5,508.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This vertical multistage centrifugal pump has suction and discharge ports on the same level.

Specifications

Manufacturer Grundfos
Part Number 99255214
Rated pump speed 3461 rpm
Rated flow 30.4 US gpm
Rated head 361.6 ft
Maximum head 488.2 ft
Stages 15
Impellers 15
Number of reduced-diameter impellers 0
Low NPSH N
Pump orientation Vertical
Shaft seal arrangement Single
Code for shaft seal HQQV
Approvals CE
Curve tolerance ISO9906:2012 3B
Pump version B
Base Stainless steel, EN 1.4408, AISI 316
Impeller Stainless steel, EN 1.4401, AISI 316
Material code A
Code for rubber V
Maximum operating pressure 362.59 psi
Max pressure at stated temperature 363 psi / 194 °F, 363 psi / -4 °F
Type of connection DIN / ANSI / JIS
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Pressure rating for connection PN 25
Flange rating inlet 300 lb
Flange size for motor 213TC
Connect code FGJ
Liquid temperature range -4 .. 194 °F
Motor standard NEMA
Frequency converter None
Pressure sensor N
Net weight 59.2 lb
Gross weight 77.1 lb
Shipping volume 6.11 ft³

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.

Estimate shipping

Repair Parts

(4 items)

Save 6%
Grundfos 96453611, Chamber Stack Kit CRN 5-15
Grundfos Grundfos 96453611, Chamber Stack Kit CRN 5-15
Sale price$2,180.95 Regular price$2,332.00
Grundfos 96455087, Shaft Seal Kit HQQV SmCR
Grundfos 96455091, Gasket Kit FKM CR/I/N 1s/1/3/5
