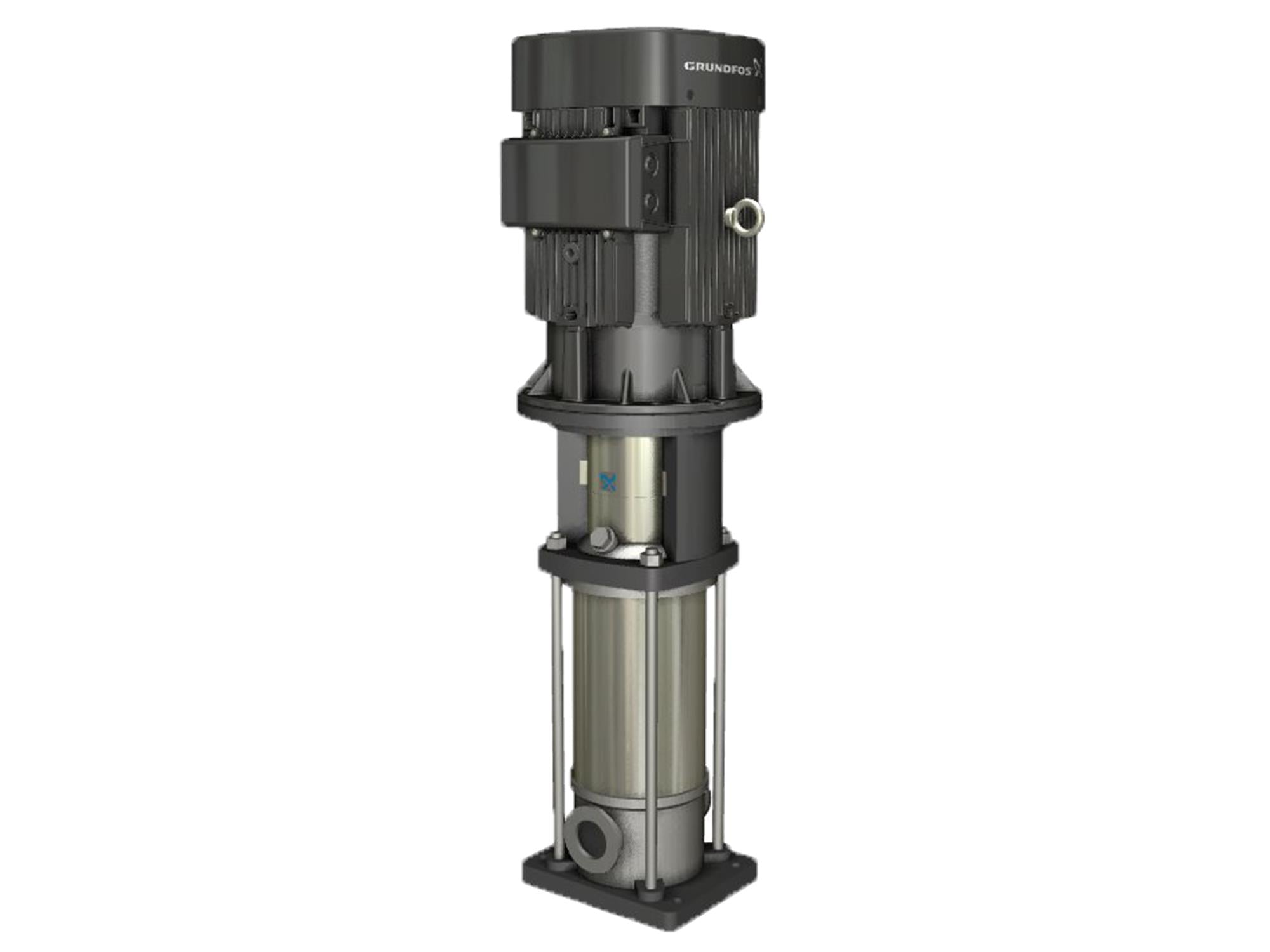

Grundfos 99476886, CRN10-5 A-CX-A-E-HQUE Vertical Multistage Pump

SKU: LSIY87ZNP9 Part Number: 99476886

Price:
Sale price$5,356.95 Regular price$7,995.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This vertical multistage centrifugal pump has suction and discharge ports on the same level.

Specifications

Manufacturer Grundfos
Part Number 99476886
Rated pump speed 3461 rpm
Rated flow 53.3 US gpm
Rated head 191.3 ft
Maximum head 241.8 ft
Actual impeller diameter 3.66 in
Stages 5
Impellers 5
Number of reduced-diameter impellers 0
Low NPSH N
Pump orientation Vertical
Shaft seal arrangement Single
Code for shaft seal HQUE
Approvals CURUS
Curve tolerance ISO9906:2012 3B
Pump version A
Base Stainless steel, EN 1.4408, AISI 316
Impeller Stainless steel, EN 1.4401, AISI 316
Material code A
Code for rubber E
Maximum operating pressure 362.59 psi
Max pressure at stated temperature 363 psi / 250 °F, 363 psi / -4 °F
Type of connection TriClamp
Size of inlet connection DN 50
Size of outlet connection DN 50
Pressure rating for connection PN 25
Flange size for motor 182TC
Connect code CX
Pumped liquid Water
Liquid temperature range -4 .. 248 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard NEMA
Power (P2) required by pump 5 HP
Frequency converter None
Pressure sensor N
DOE Pump Energy Index CL 0.87
Net weight 161 lb
Gross weight 179 lb
Shipping volume 8.26 ft³

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
