Name: Grundfos 15C71917, Modified Standard Submersible Pump for Filtration
Brand: Grundfos
SKU: LSIYEUVLWG
Price: 64645.0 USD
Availability: OutOfStock

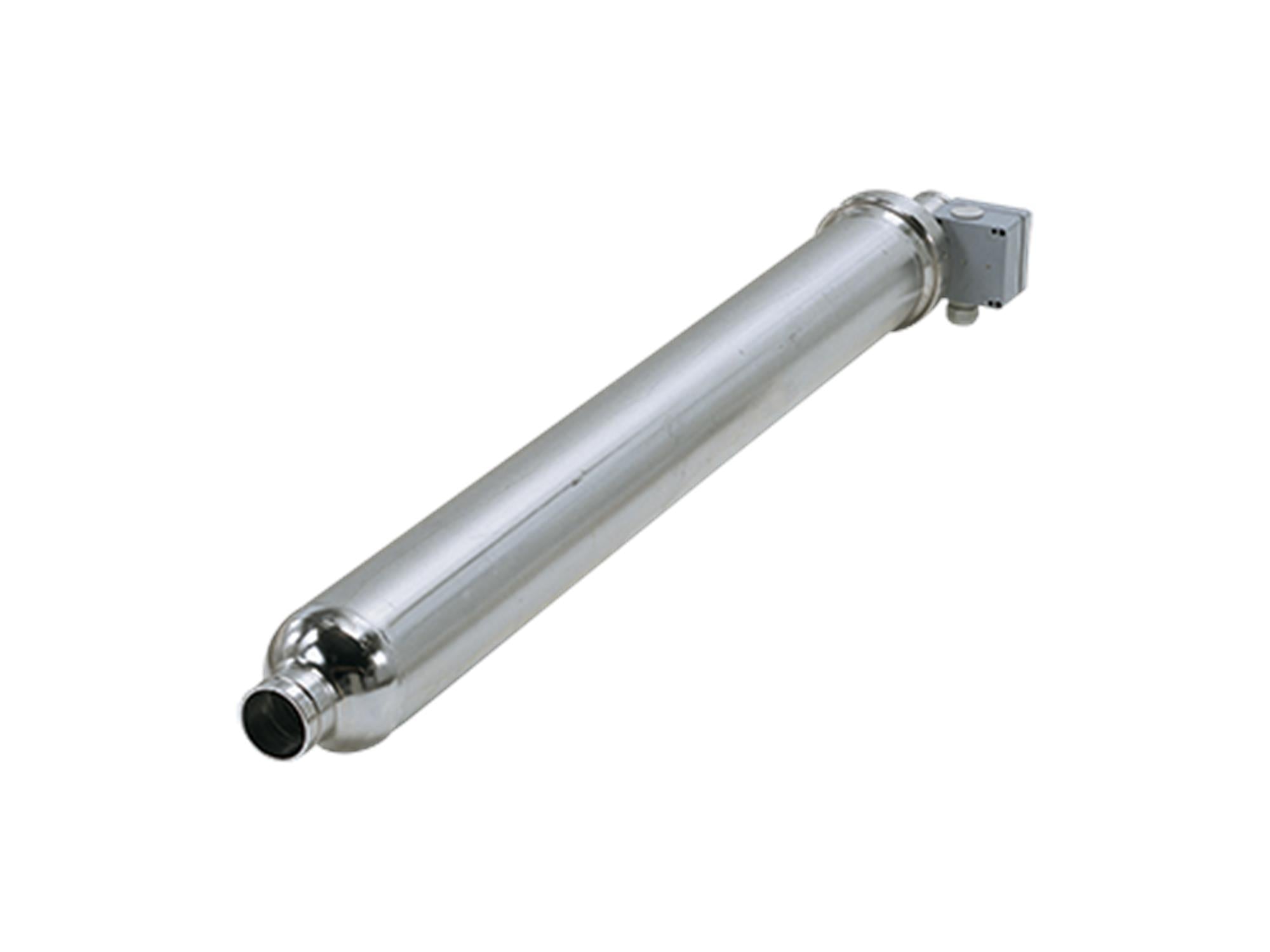

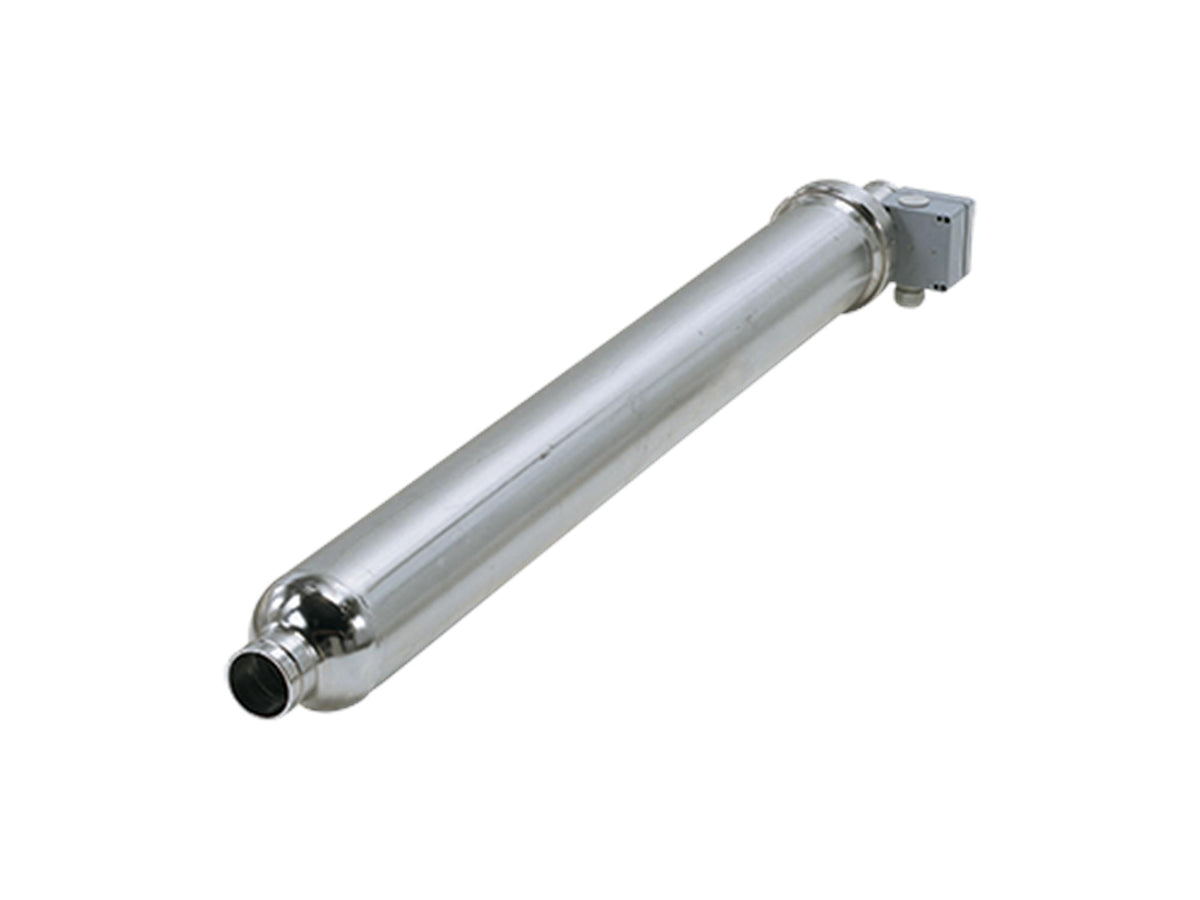

Grundfos 15C71917, Modified Standard Submersible Pump for Filtration

Roll over image to zoom in Click on image to zoom

This encapsulated pump is a modified standard submersible pump designed for various industrial filtration applications and water supply. It operates with an asynchronous submersible squirrel-cage motor, making it suitable for use in drinking water treatment, desalination, and industrial water supply and transfer.

Manufacturer	Grundfos
Part Number	15C71917
Rated flow	203 US gpm
Rated head	488.9 ft
Stages	17
Curve tolerance	ISO9906:2012 3B
Pump	Stainless steel, DIN W.-Nr. 1.4539, AISI 904L
Impeller	Stainless steel, EN 1.4539, AISI 904L
Motor	Stainless steel, DIN W.-Nr. 1.4539, AISI 904L
Code for rubber	NBR
Sleeve	Stainless steel, SAF 2205, EN 1.4462
Maximum operating pressure	1199.46 psi
Maximum permissible inlet pressure	870.23 psi
Maximum outlet pressure	1189.31 psi
Pipe connection standard	PJE
Pipe connection	89 mm
Pumped liquid	Water
Maximum liquid temperature	104 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Rated power - P2	35 HP
Main frequency	50 Hz
Rated voltage	3 x 380-400-415 V
Rated current	58.0-55.5-55.0 A
Starting current	480-530-560 %
Cos phi - power factor	0.87-0.85-0.82
Start. method	direct-on-line
Enclosure class (IEC 34-5)	IP66
Thermal protec	external
Built-in temperature transmitter	yes
Minimum efficiency index, MEI ≥	0.40
Net weight	384 lb
Gross weight	541 lb
Shipping volume	22 ft³

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
