Description

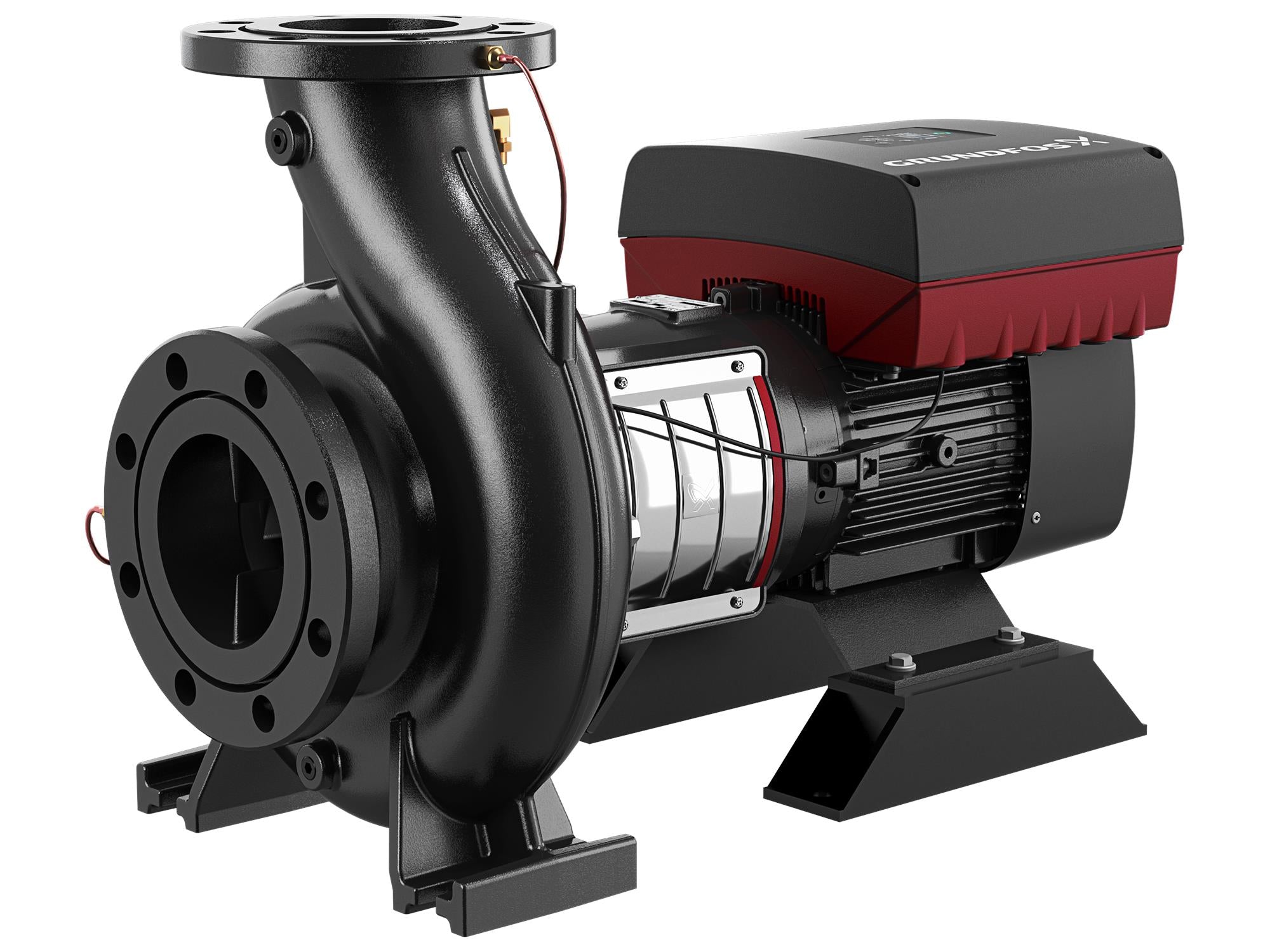

This split-coupled end-suction pump has NEMA MLE motors and ANSI flange fittings, suitable for applications in water treatment fertigation, chemigation, dosing, controls and digital groundwater management, as well as drip, micro spray, and soaker hose irrigation.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 92613723 |
| Rated pump speed | 2200 rpm |
| Rated flow | 225 US gpm |
| Rated head | 37.21 ft |
| Actual impeller diameter | 5.98 in |
| Code for shaft seal | DQQE |
| Curve tolerance | 2B HI 14.6:2016 |
| Pump version | AS |
| Pump housing | DUCTILE IRON, EN-GJS-500-7, ASTM 70-50-05 |
| Flange | Ductile iron, EN-GJS-500-7, ASTM 70-50-05 |
| Impeller | Stainless steel, EN 1.4308, AISI 304 |
| Internal pump house coating | No coating |
| Material code | SA |
| Code for rubber | E |
| Shaft | Stainless steel, EN 1.4201/1.4034, AISI 420 |
| Maximum ambient temperature | 122 °F |
| Maximum operating pressure | 362.59 psi |
| Type of connection | ANSI |
| Size of suction port | 3 inch |
| Size of outlet port | 2.5 inch |
| Pressure rating for connection | Class 300 |
| Mounting options design code | B |
| Support block (Yes/No) | Y |
| Connect code | G |
| Pumped liquid | Water |
| Liquid temperature range | -4 .. 248 °F |
| Selected liquid temperature | 68 °F |
| Density | 62.29 lb/ft³ |
| Motor standard | NEMA |
| Motor type | 100B |
| IE efficiency class | IE5 |
| Rated power - P2 | 3 HP |
| Main frequency | 60 Hz |
| Rated voltage | 3 x 440-480 V |
| Rated current | 3.90-3.70 A |
| Cos phi - power factor | 0.87-0.83 |
| Rated speed | 180-2200 rpm |
| Motor efficiency at full load | 91.1 % |
| Number of poles | 4 |
| Enclosure class (IEC 34-5) | TEFC |
| Insulation class (IEC 85) | F |
| Built-in motor protection | ELEC |
| Mounting designation (IEC 34-7, Code I) | NEMA type C / foot |
| Bearing insulation type N-end | Steel Bearing |
| Control panel | HMI300 - Advanced |
| Function Module | FM300 - Advanced |
| DOE Pump Energy Index CL | 0.00 |
| DOE Pump Energy Index VL | 0.42 |
| Net weight | 266 lb |
| Gross weight | 267 lb |
| Shipping volume | 6.92 ft³ |
