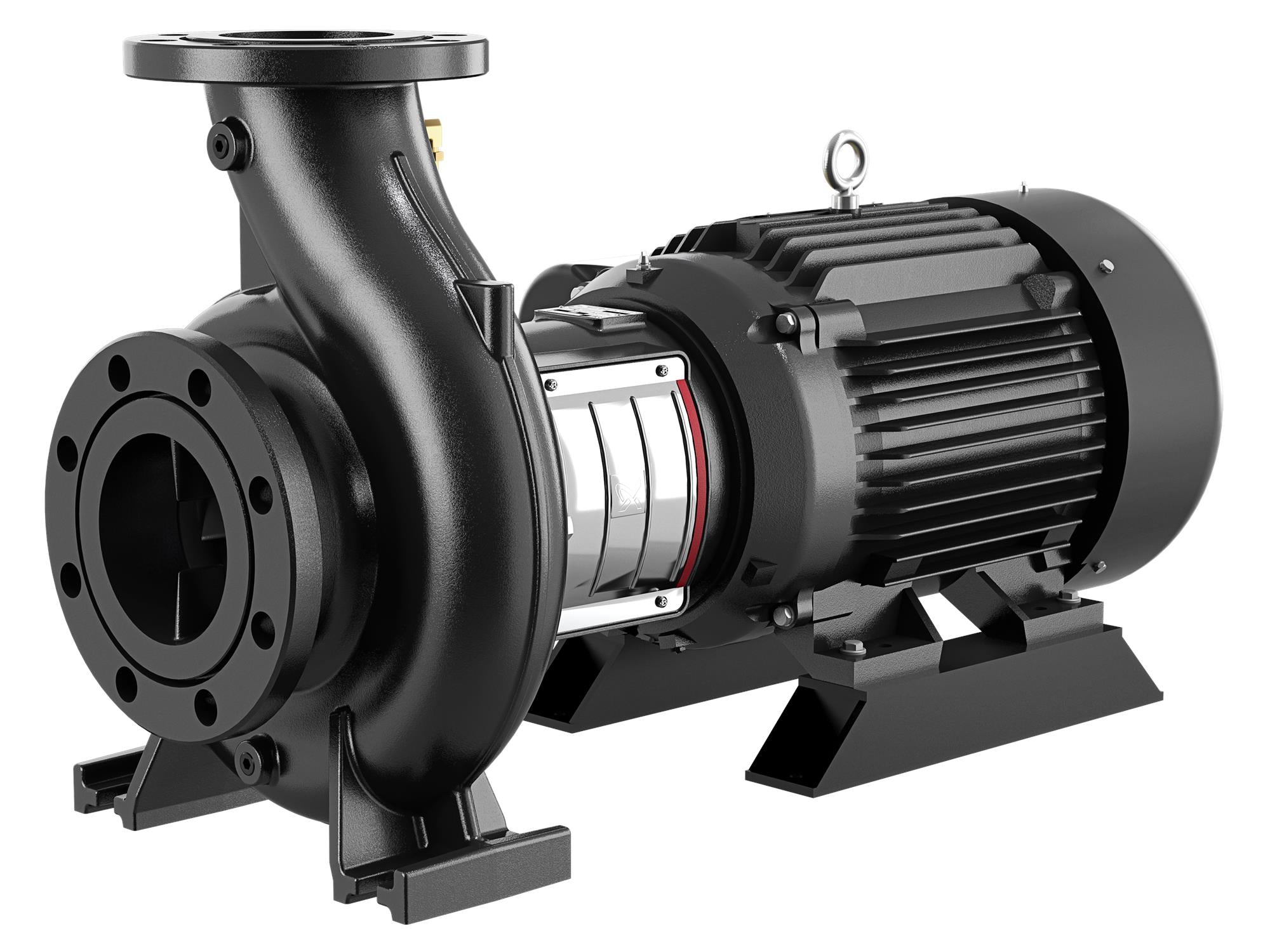

Grundfos 92560672, NBS 060-150 Split Coupled End Suction Pump

SKU: LSIZ8Z2K4Q Part Number: 92560672

Price:
Sale price$36,014.95 Regular price$38,518.00

Save 6% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This split-coupled end-suction pump has a NEMA standard motor and ANSI flange fittings. It is a non-self-priming, single-stage centrifugal volute pump with an axial inlet port, radial outlet port, and horizontal shaft. The back pull-out design allows for the removal of the motor, motor stool, cover, and impeller without disturbing the housing or pipework. It adheres to ISO 5199 standards with American dimensions on the pump and flanges. Inlet and outlet flanges comply with ASME 16.1/16.42 standards, supporting performance ratings of 175/363 PSI (12/25 bar). The mechanical shaft seal follows EN 12756 dimensions, while motors conform to NEMA standards. This pump can use an MLE motor with an integrated frequency converter or connect to a CUE external frequency converter.

Specifications

Manufacturer Grundfos
Part Number 92560672
Rated pump speed 1190 rpm
Rated flow 2020 US gpm
Rated head 121.8 ft
Actual impeller diameter 16.9 in
Code for shaft seal BQQE
Curve tolerance 2B HI 14.6:2016
Pump version AS
Pump housing Cast iron, EN-GJL-250, ASTM A48-35
Impeller Stainless steel, EN 1.4308, AISI 304
Internal pump house coating No coating
Material code S2
Code for rubber E
Shaft Stainless steel, EN 1.4021/1.4034, AISI 420
Maximum ambient temperature 104 °F
Maximum operating pressure 174.05 psi
Type of connection ANSI
Size of suction port 8 inch
Size of outlet port 6 inch
Pressure rating for connection Class 125
Mounting options design code B
Support block (Yes/No) Y
Connect code G
Pumped liquid Water
Liquid temperature range -13 .. 248 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard NEMA
IE efficiency class IE3 / NEMA Premium
Rated power - P2 100 HP
Main frequency 60 Hz
Rated voltage 3 x 460 V
Rated current 119 A
Rated speed 1190 rpm
Motor efficiency at full load 95 %
Number of poles 6
Enclosure class (IEC 34-5) TEFC
Mounting designation (IEC 34-7, Code I) NEMA type C / foot
Bearing insulation type N-end Shaft grounding ring
Frequency converter None
Net weight 2570 lb
Gross weight 2570 lb
Shipping volume 50 ft³
Country of origin US

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
