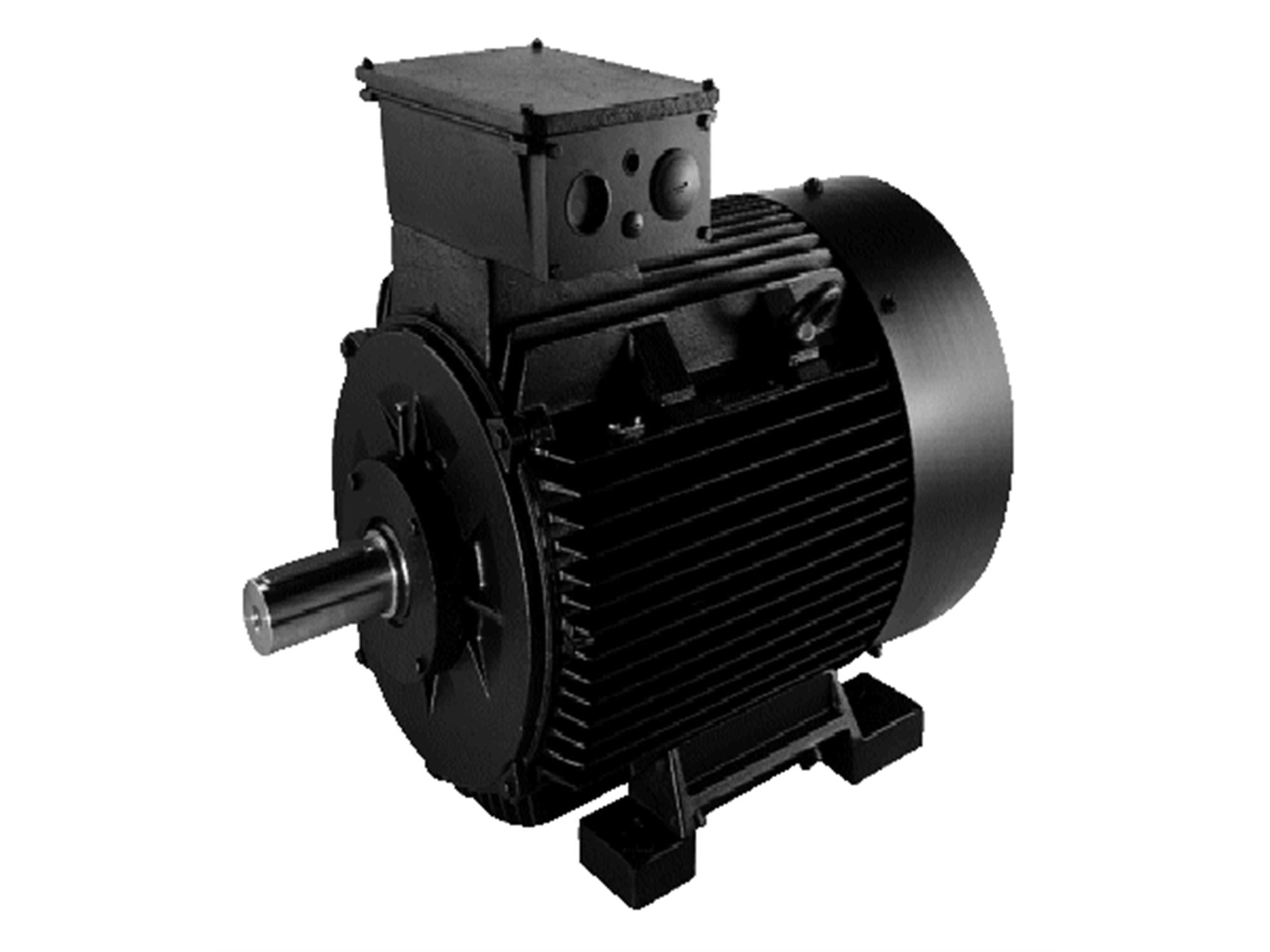

Name: Grundfos 85600H26, 25HP Motor 230/460V 3PH TEF MTR2
Brand: Grundfos
SKU: LSIZWMOP56
Price: 5190.95 USD
Availability: OutOfStock

Grundfos 85600H26, 25HP Motor 230/460V 3PH TEF MTR2

Roll over image to zoom in Click on image to zoom

This motor is a 25HP unit with a power rating of 230/460 volts and operates at 3530 RPM. It is categorized under standard motors and has a three-phase configuration.

Manufacturer	Grundfos
Part Number	85600H26
Shaft diameter	1.62 in
Length of shaft end	3 in
Approvals for motor	cURus/cCSAus
Energy approvals for motor	CC,
Cooling	TEFC
Range of ambient temperature	-22 .. 104 °F
Flange size for motor	284TSC
Motor type	BALDOR
Rated power - P2	25 HP
Main frequency	60 Hz
Rated voltage	3 x 230/460 V
Service factor	1.15
Rated current	56/28 A
Full load SF current	64.4/32.2 A
Rated speed	3530 rpm
IE efficiency	IE3 93%
IE Efficiency class	IE3 / NEMA Premium
Motor efficiency at full load	93 %
Number of poles	2
Enclosure class (IEC 34-5)	TEFC
Insulation class (IEC 85)	F
Built-in motor protection	NONE
Tropic protec	No
Mounting design per IEC 34-7	NEMA type C
Bearing insulation type N-end	Steel Bearing
Net weight	328 lb
Color/Type	BLACK
Custom tariff no.	8501.52.8040

Baldor motors (I & O instructions)

WEG motors, GB/ES version (I & O instructions)

WEG motors, Additional languages (I & O instructions)

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.

Grundfos Water Pumps - Comprehensive Guide

Discover Grundfos water pump models, learn about their benefits, technical details, main applications, controls, arrangement tips, and let Liberty ...

Save 16%

Grundfos

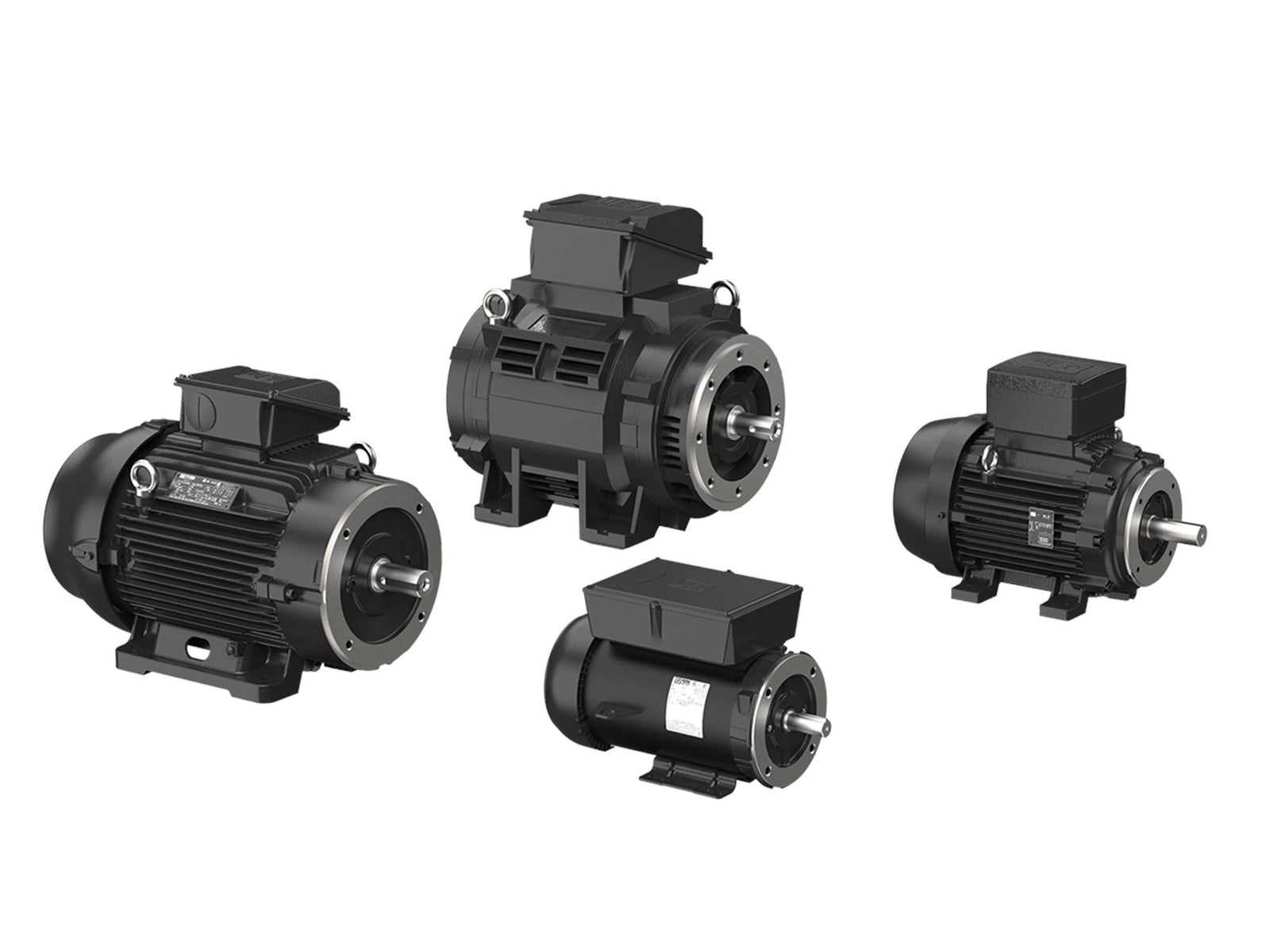

Grundfos 99883249, WEG 284/6TSC Motor 25HP TEFC Standard Motor
