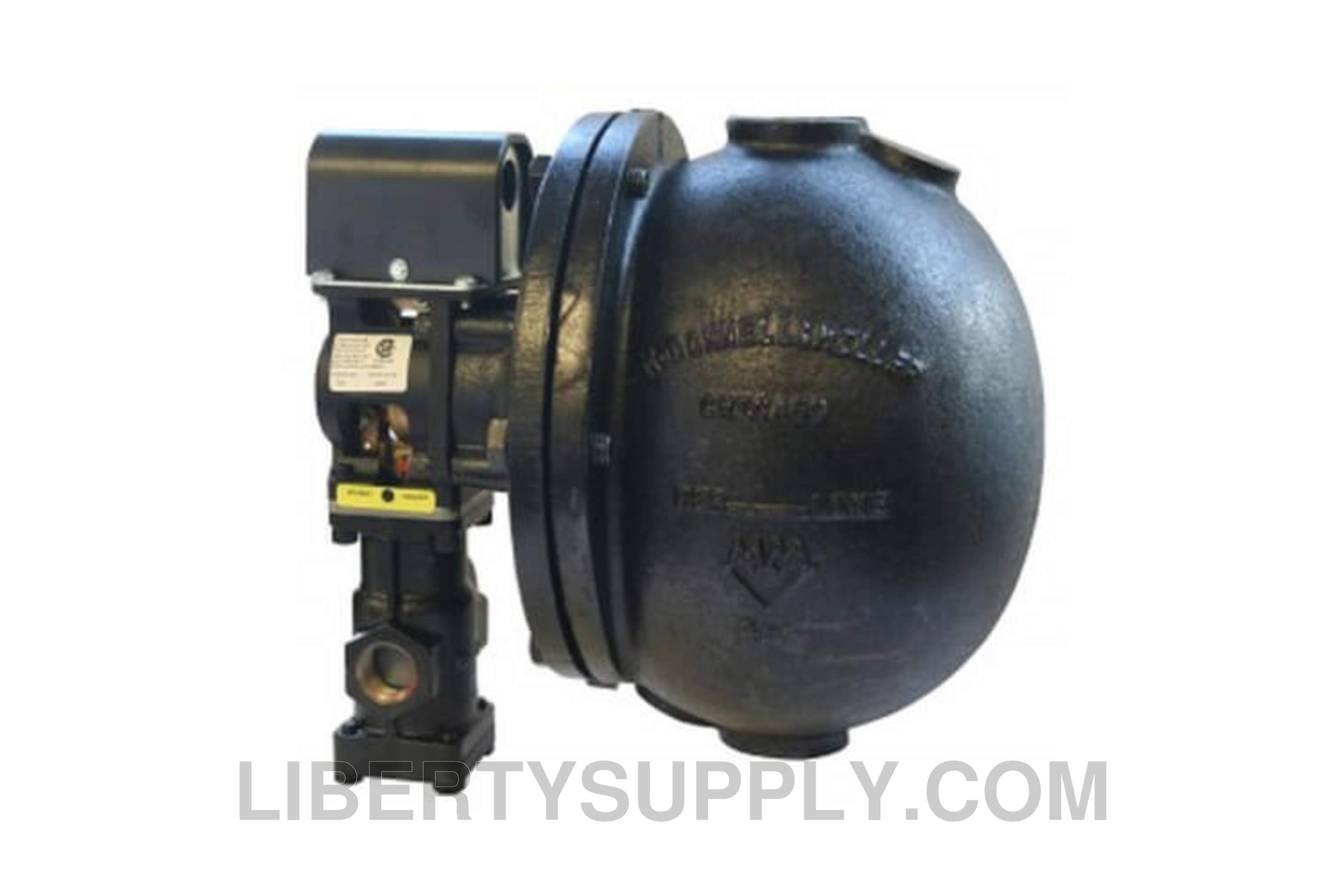

Combination float-operated mechanical water feeder and low water cut-off for low pressure steam or hot water boilers with a capacity larger than 5,000 square feet with a tapped 1" FIP connection. This unit features an automatic reset, a 120 volt number 2 cut-off switch, and continuous maintenance of minimum safe water level independent of electrical service. Its maximum water pressure is 150 psi and steam pressure is 75 psi.
|Manufacturer||McDonnell & Miller|
|Control Type||Make Up Water Feeder|
|Application||Hot Water Boiler & Steam Boiler|
|Switch Model||Number 2|
|Maximum Water Pressure||150 psi|
|Maximum Water Temperature||120°F|
