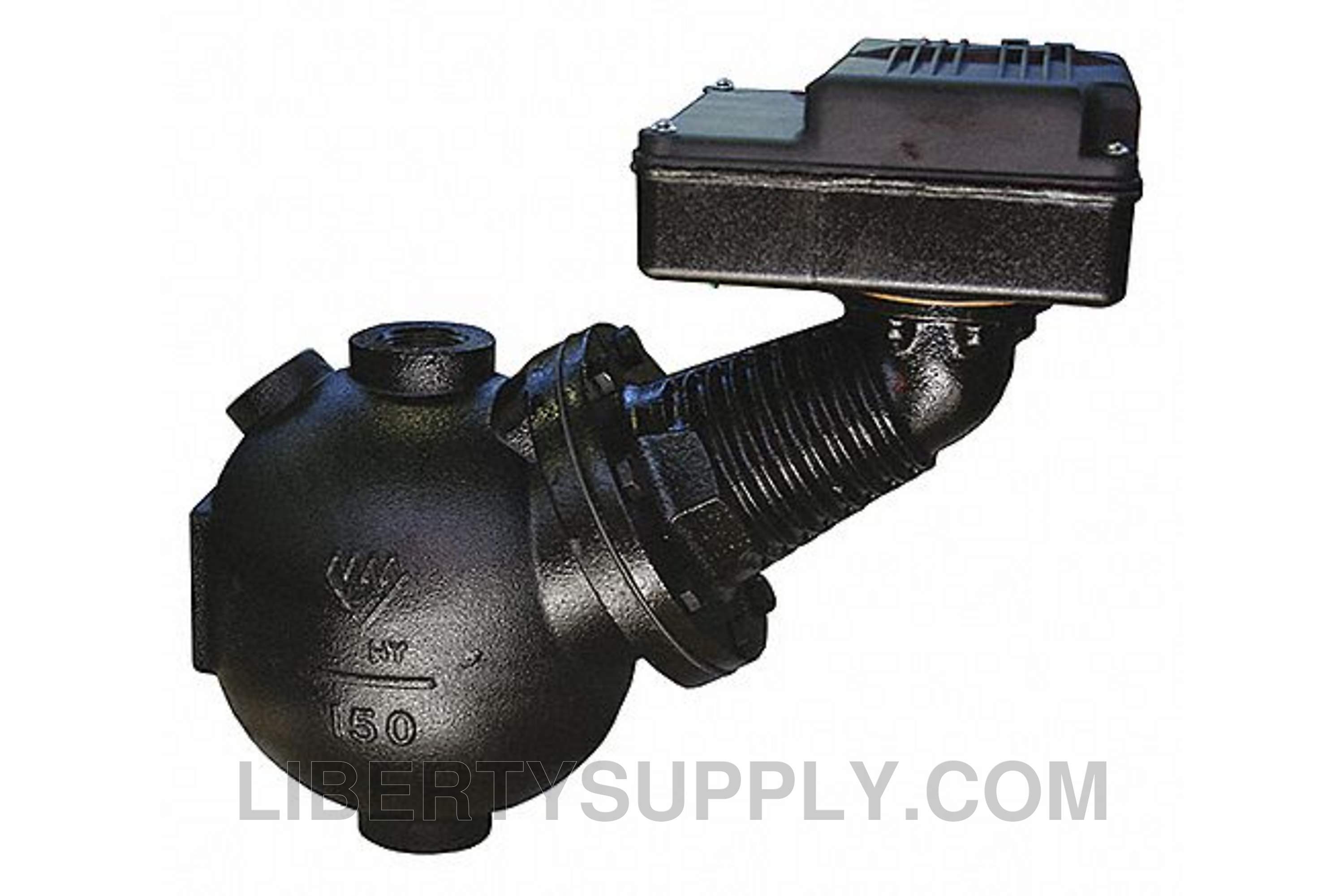

Combination float-operated low water cut-off and pump controller for steam boilers with an integral water column. The controller has 3/4" NPT tappings for gauge glass and tri-cocks. This control features an automatic reset with two 120 volt bi-metal snap switches. One switch is single pole, single throw for pump control. The other is single pole, double throw for low water cut-off and alarm actuation. Its maximum pressure is 150 psi and it has a tapped 1-1/4" FIP connection.
|Manufacturer||McDonnell & Miller|
|Control Type||Combination Low Water Cutoff Pump Control|
|Switch Model||SWA 150S|
|Installation Method||1" Equalizing Piping|
|Maximum Pressure||150 psi|
