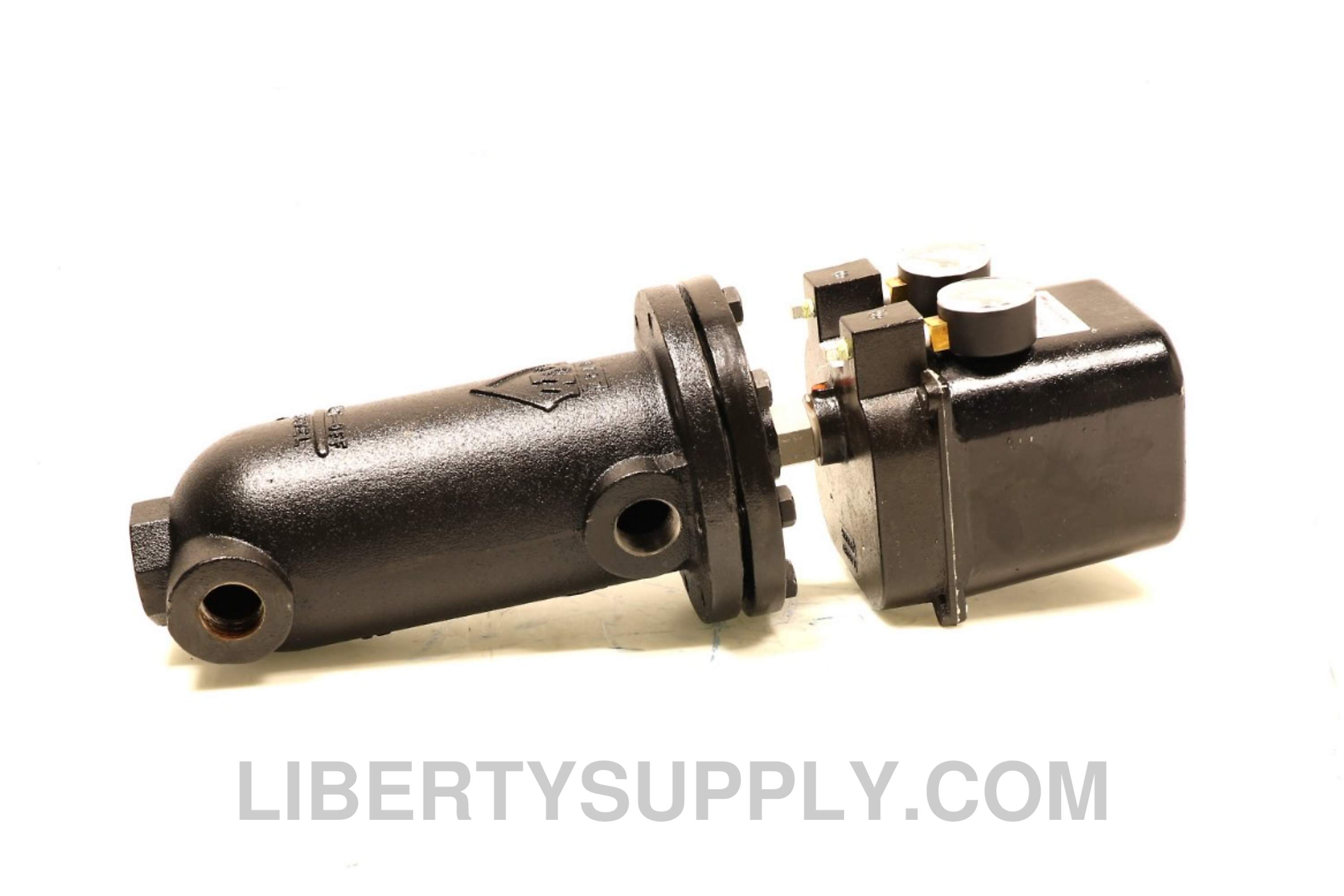

Reverse-acting, float-actuated pneumatic liquid level control for valves or relays in air conditioning systems with a 1/8" FIP input/output connections and a 1" FIP water connection. Two gauges are provided for supply air pressure (20 psi) and output air pressure (3-15 psi). This liquid level control provides an air pressure signal proportional to the liquid level and has an operating range of 1"-2". Its maximum pressure is 250 psi.
|Manufacturer||McDonnell & Miller|
|Control Type||Float-Actuated Liquid Level|
|Application||Receiver Tank & Pressure Vessel|
|Maximum Pressure||250 psi|
|Maximum Supply Pressure||20 psi|
|Maximum Water Temperature||406°F|
