Name: NIBCO NLZ95046, 1/2 in. Two-Piece Bronze Ball Valve - Fire Protection, Full Port KT-585-70-UL
Brand: NIBCO
SKU: NBC04-0101
Price: 35.95 USD
Availability: InStock

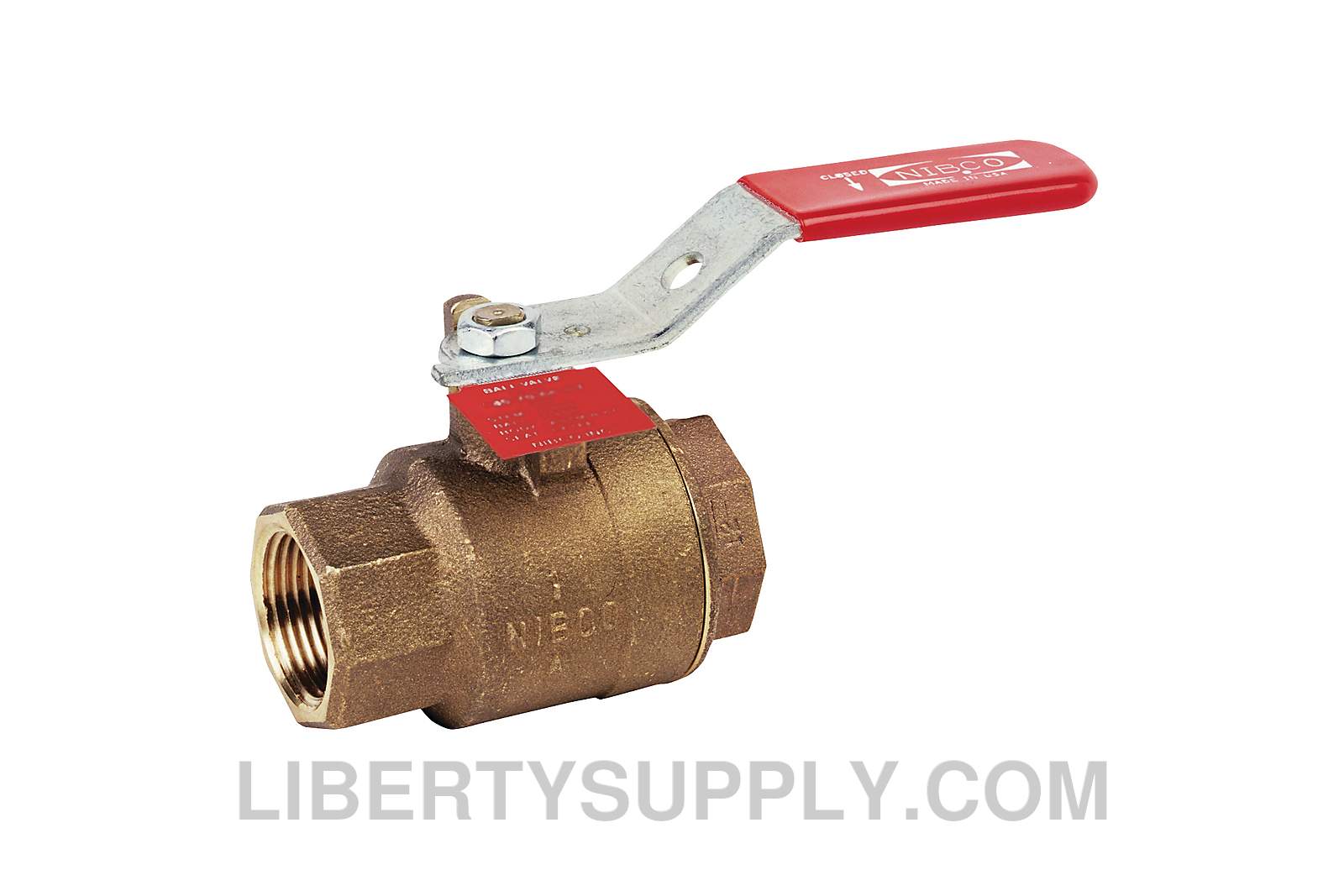

Representative Image

NIBCO NLZ95046, 1/2 in. Two-Piece Bronze Ball Valve - Fire Protection, Full Port KT-585-70-UL

Roll over image to zoom in Click on image to zoom

1/2" FIPT full port bronze ball valve for fire protection. This valve features a blowout-proof stem, chrome plated brass ball, silicon bronze stem, standard lever handle, and is dezincification resistant. Use in U.S. drinking water applications is prohibited after January 3, 2014.

Features

300 psi/20.7 bar non-shock water working pressure (WWP)
Blowout-proof stem
Chrome plated brass ball and silicon bronze stem
Standard lever handle
Threaded end connections
Dezincification resistant
Use in U.S. drinking water applications is prohibited after January 3, 2014
Conforms to MSS SP-110
UL listed, FM Approved for trim and drain use (UL258) (1/4" to 1" only)
FM Approved

Manufacturer	NIBCO
Part Number	NLZ95046
Model	KT-585-70-UL
Valve Type	Ball Valve
Application	Fire Protection
Connection	1/2" Female NPT Thread (FIPT)
Material	Bronze
Water Working Pressure	300 psi
Port Style	Full
Stem Design	Silicon Bronze
Ball Material	Chrome-Plated Brass
Handle Style	Lever
Turns Operations	Quarter-Turn
Valve Ball Body Type	Two-Piece
Potable Water Code	Not LL Compliant - Not Intended for Potable Water
Length	5.3"
Width	2.5"
Height	1.3"
UPC	39923677792
Country of Origin	US
CA Proposition 65 Warning Statement	WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
