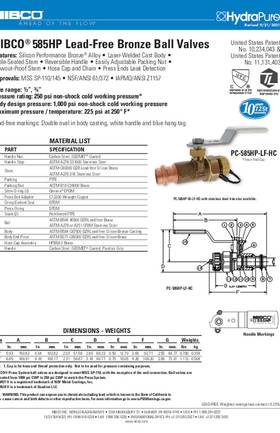

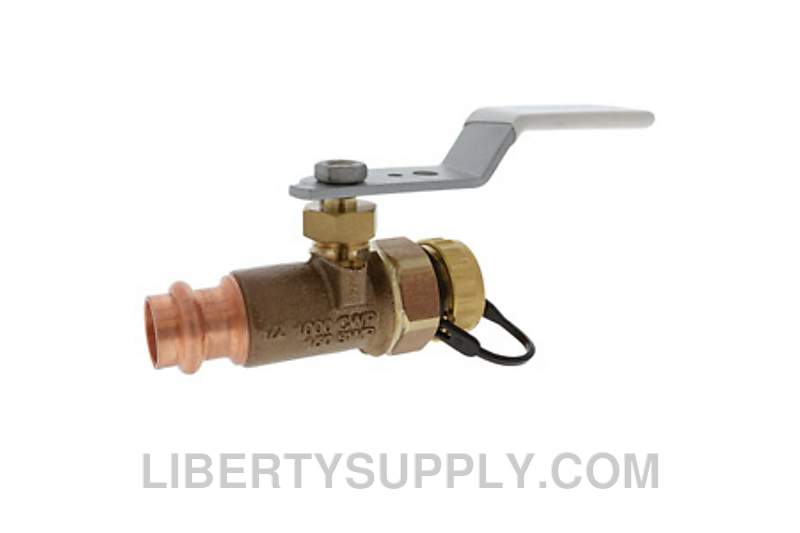

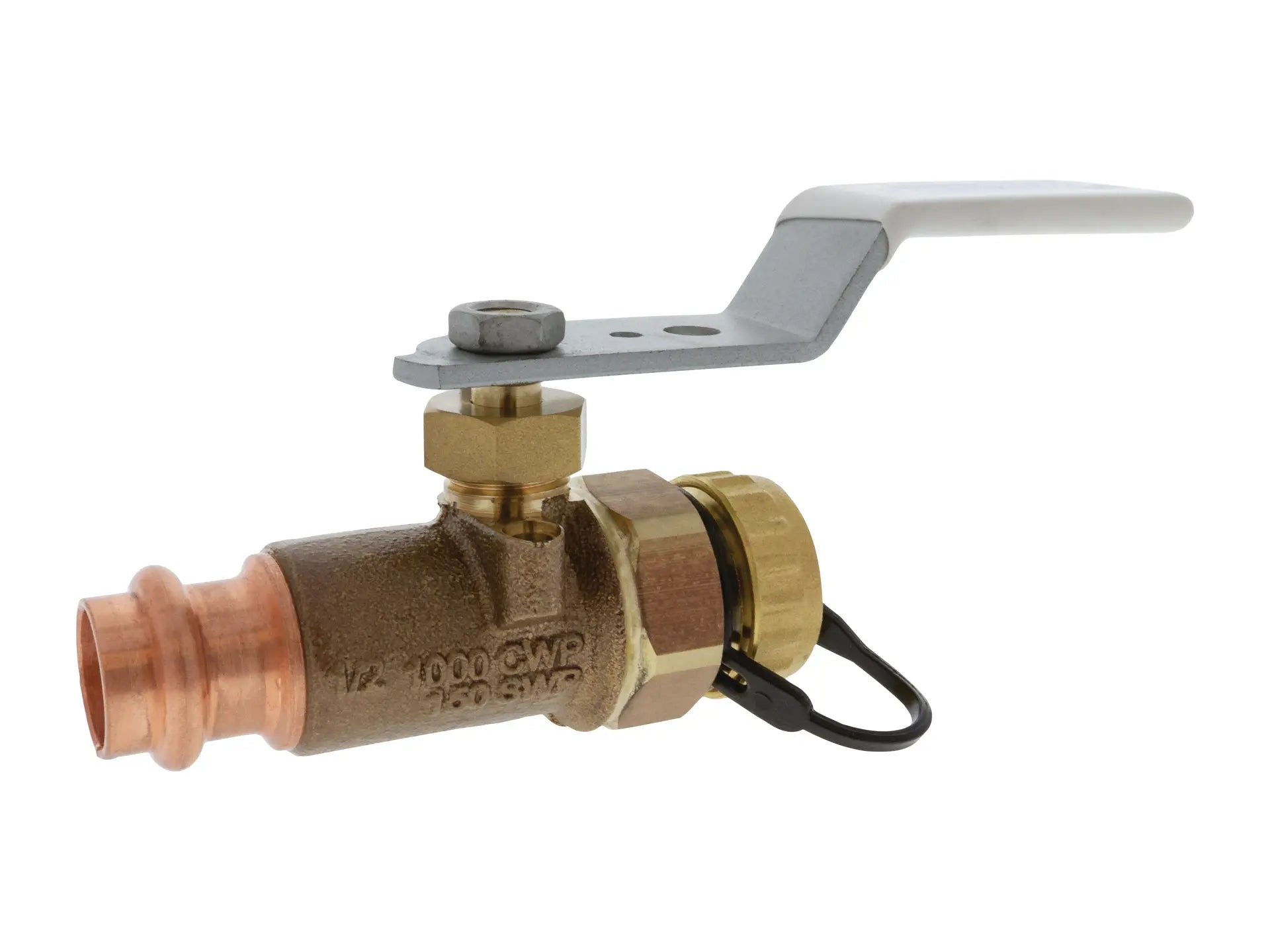

3/4" press x hose high-performance lead-free bronze ball valve with full port, reversible handle, stainless steel ball and stem, easily adjustable pack nut, triple sealed stem, blowout-proof stem, reinforced PTFE seat rings, press x hose leak-detection feature, multiple handle options (including NIB-Seal) and is dezincification resistant.
Features
| Manufacturer | NIBCO |
|---|---|
| Part Number | HP84HH8 |
| Model | PC-585HP-66-LF-HC |
| Nominal Pipe Size | 3/4 |
| UPC | 039923429933 |
| Length (In) | 6.67 |
| Width (In) | 3.18 |
| Height (In) | 1.79 |
| Country of Origin | US |
| Potable Water Code | LL Compliant NSF/ANSI 372 |
| CA Proposition 65 Warning Required | Yes |
| Classification | Lead-Free* Press Ball Valves |
| Basic Material | Lead-Free Bronze |
| Type of Item | Valve |
| Nominal Size 1 | 3/4 in. |
| Nominal Size 2 | 3/4 in. |
| Type of Valve | Ball Valve |
| Size Dimensions | 3/4 in. x 3/4 in. |
| Valve Ball Port Style | Full Port |
| Valve Ball Material | Stainless Steel |
| Valve Ball Stem Material | SS - Stainless Steel |
| Valve End Connection Type | Female Press x Hose Cap & Chain |
| End Connection | Press |
| Valve Ball Operator | CS Standard Lever Handle |
| Turns Operations | Quarter-Turn |
| Valve Stem Material | Stainless Steel |
| Seat Seal Material | RPTFE (Reinforced) |
| Valve Trim Package | Stainless Steel Trim |
| Valve Pressure Rating (CWP) | 1000 PSI / 69 Bar CWP |
| System Use | Lead Free* |
