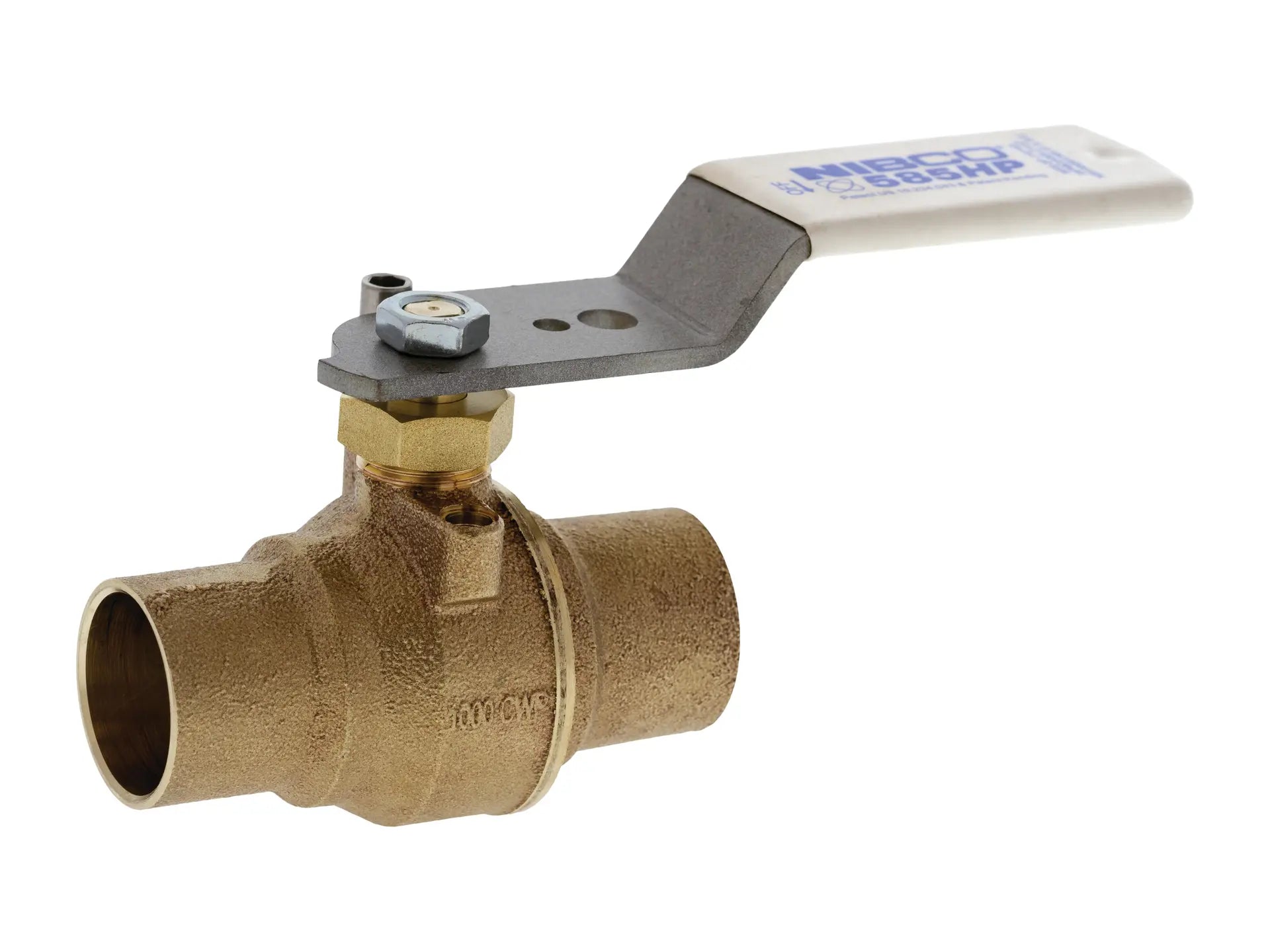

NIBCO S-585HP-66-LF 3/4" Solder Bronze Ball Valve HP83HX8

SKU: NBC04-0585 Part Number: HP83HX8 Model: S-585HP-66-LF

Price:
Sale price$127.95 Regular price$239.20

Save 47% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

3/4" solder high-performance lead-free bronze ball valve with reversible handle, easily adjustable pack nut, triple sealed stem, silicon performance bronze body, stainless steel ball and stem, blowout-proof stem, reinforced PTFE seat rings, standard lever handle, optional NIB-SEAL, locking lever, memory stop, and extended lever.

Features

  • Valve Pressure Rating 1,000 psi/69 Bar (1/2" -1") & 800 psi/55 Bar (1 1/4" -2") Non-shock Cold Working Pressure
  • Maximum temperature rating 300°F
  • Full port
  • Laser Welded
  • Reversible Handle
  • Easily Adjustable Pack Nut
  • Triple Sealed Stem
  • Silicon Performance Bronze® Body
  • Stainless steel ball and stem
  • Blowout-proof Stem
  • Reinforced PTFE Seat Rings
  • Standard Lever Handle, Optional NIB-SEAL®, Locking Lever, Memory Stop, Extended Lever
  • Lead-free
  • Conforms to MSS SP-110
  • Conforms to MSS SP-145
  • NSF/ANSI/CAN-61 Section 8 Commercial Hot 180°F (Annex F)
  • NSF/ANSI-372
  • IAPMO/ANSI Z1157
  • ICC-ES PMG-1558
  • ASME A112.4.14/CSA B125.14

Specifications

Manufacturer NIBCO
Part Number HP83HX8
Model S-585HP-66-LF
Valve Type Ball Valve
Connection 3/4" Solder
Material Bronze
Lead-Free Yes
Cold Working Pressure 1000 psi
Maximum Temperature 300°F
Port Style Full
Stem Design Blowout-Proof
Stem Material Stainless Steel
Ball Material Stainless Steel
Seat Material RPTFE
Trim Material Stainless Steel
Handle Style Lever
Turns Operations Quarter-Turn
Valve Ball Body Type Two-Piece
Potable Water Code LL Compliant NSF/ANSI 372
Length 5.65"
Width 3.17"
Height 1.79"
UPC 39923423245
Country of Origin US
Notes and Disclaimers Performance Bronze® is a registered trademark of NIBCO INC.; NIB-SEAL® is a registered trademark of NIBCO INC.
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
