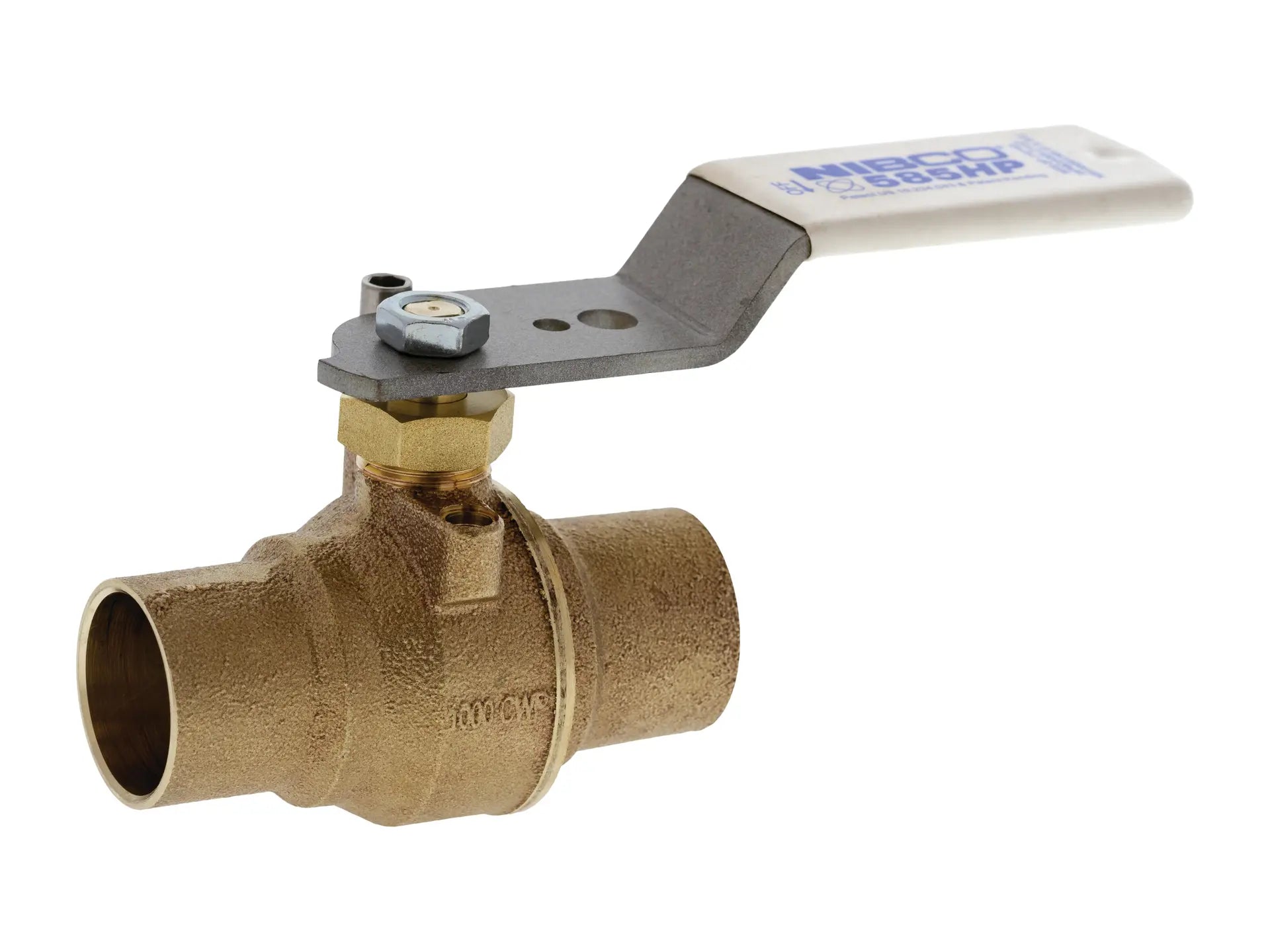

1" female solder cup high-performance lead-free bronze ball valve with standard lever handle, easily adjustable pack nut, triple sealed stem, silicon performance bronze body, optional stainless steel trim, stainless steel ball and stem, blowout-proof stem, reinforced PTFE seat rings, standard lever handle, optional NIB-SEAL, locking lever, memory stop, and extended lever.
Features
- Valve Pressure Rating 1,000 psi/69 Bar (1/2" -1") & 800 psi/55 Bar (1 1/4" -2") Non-shock Cold Working Pressure
- Maximum temperature rating 300°F
- Full port
- Laser Welded
- Reversible Handle
- Easily Adjustable Pack Nut
- Triple Sealed Stem
- Silicon Performance Bronze® Body, Ball and Stem, Optional Stainless Steel Trim
- Blowout-proof Stem
- Reinforced PTFE Seat Rings
- Standard Lever Handle, Optional NIB-SEAL®, Locking Lever, Memory Stop, Extended Lever
- Lead-free
- Conforms to MSS SP-110
- Conforms to MSS SP-145
- NSF/ANSI/CAN-61 Section 8 Commercial Hot 180°F (Annex F)
- NSF/ANSI-372
- IAPMO/ANSI Z1157
- ICC-ES PMG-1558
- ASME A112.4.14/CSA B125.14
