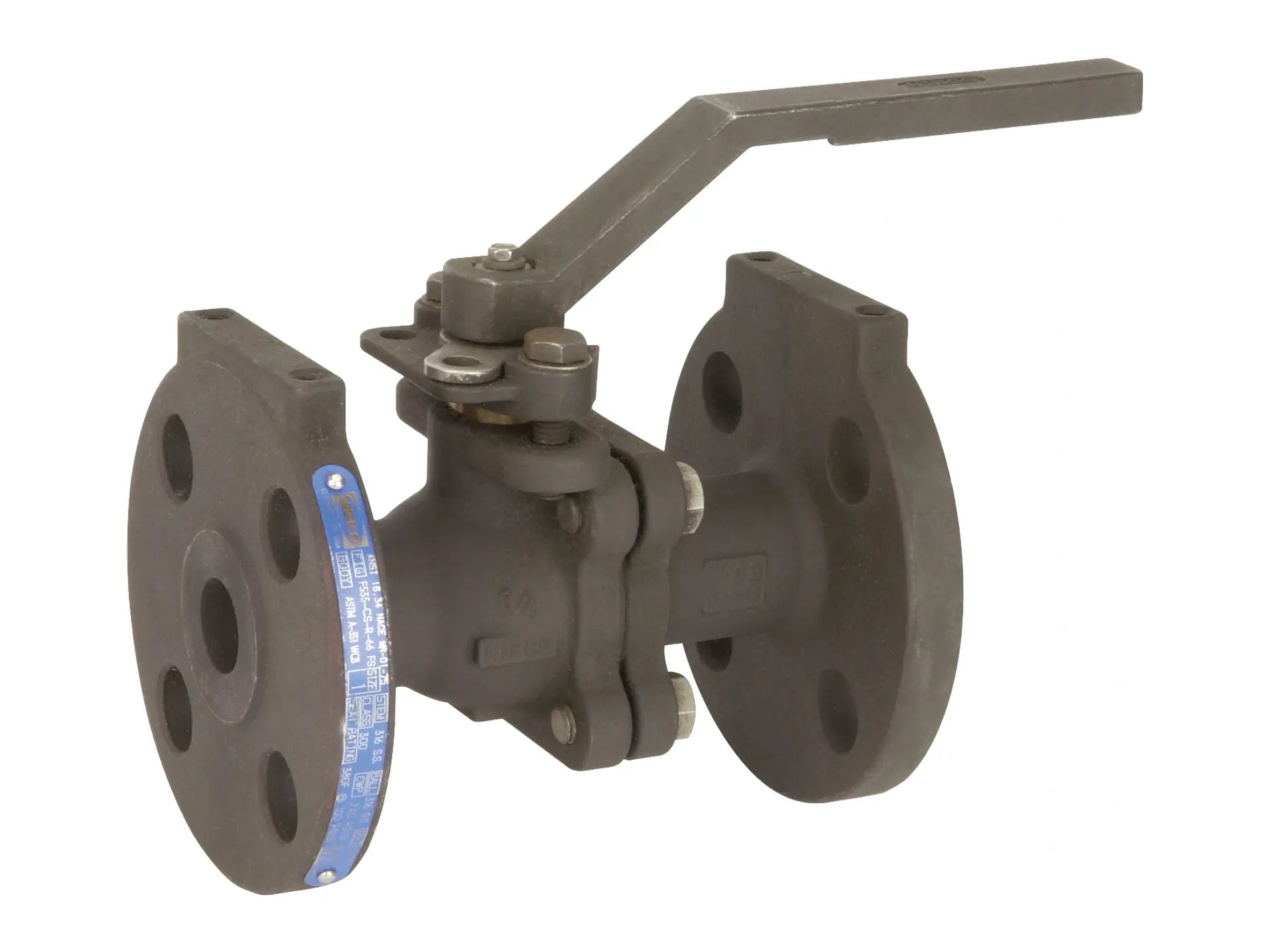

NIBCO F-535-CS-F-66-FS 8" Flanged Carbon Steel Ball Valve NG316GL

SKU: NBC04-1005 Part Number: NG316GL Model: F-535-CS-F-66-FS

Price:
Sale price$32,443.95 Regular price$43,843.00

Save 26% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

Please note this item is made to order and additional lead-times may apply.

8" flanged split-body, full port carbon steel ball valve with blowout-proof stem, stainless steel ball and stem, multiple V-ring packing, mounting pad, vented ball, manual gear operator, and Class 300 flanged end connections.

Features

  • Valve pressure rating 740 psi 51 bar non-shock cold working pressure
  • Maximum temperature rating 400°F
  • Split body, full port design
  • Blowout-proof stem
  • Stainless steel ball and stem
  • Multiple V-ring packing
  • Mounting pad
  • Vented ball
  • Locking handle or manual gear operator
  • Class 300 flanged end connections
  • Conforms to MSS SP-72
  • API-607 Fourth Edition Fire Safe
  • API-608 Anti-Static

Specifications

Manufacturer NIBCO
Part Number NG316GL
Model F-535-CS-F-66-FS
Valve Type Ball Valve
Connection 8" Flanged
Material Carbon Steel
Cold Working Pressure 740 psi
Maximum Temperature 400°F
Port Style Full
Stem Design Blowout-Proof
Stem Material Stainless Steel
Ball Material Stainless Steel
Seat Material Carbon-Filled PTFE
Handle Style Gear-Operated
Turns Operations Quarter-Turn
Valve Ball Body Type Split-Body
Length 35.33"
Width 23.77"
Height 21.74"
UPC 39923659880
Country of Origin US
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
