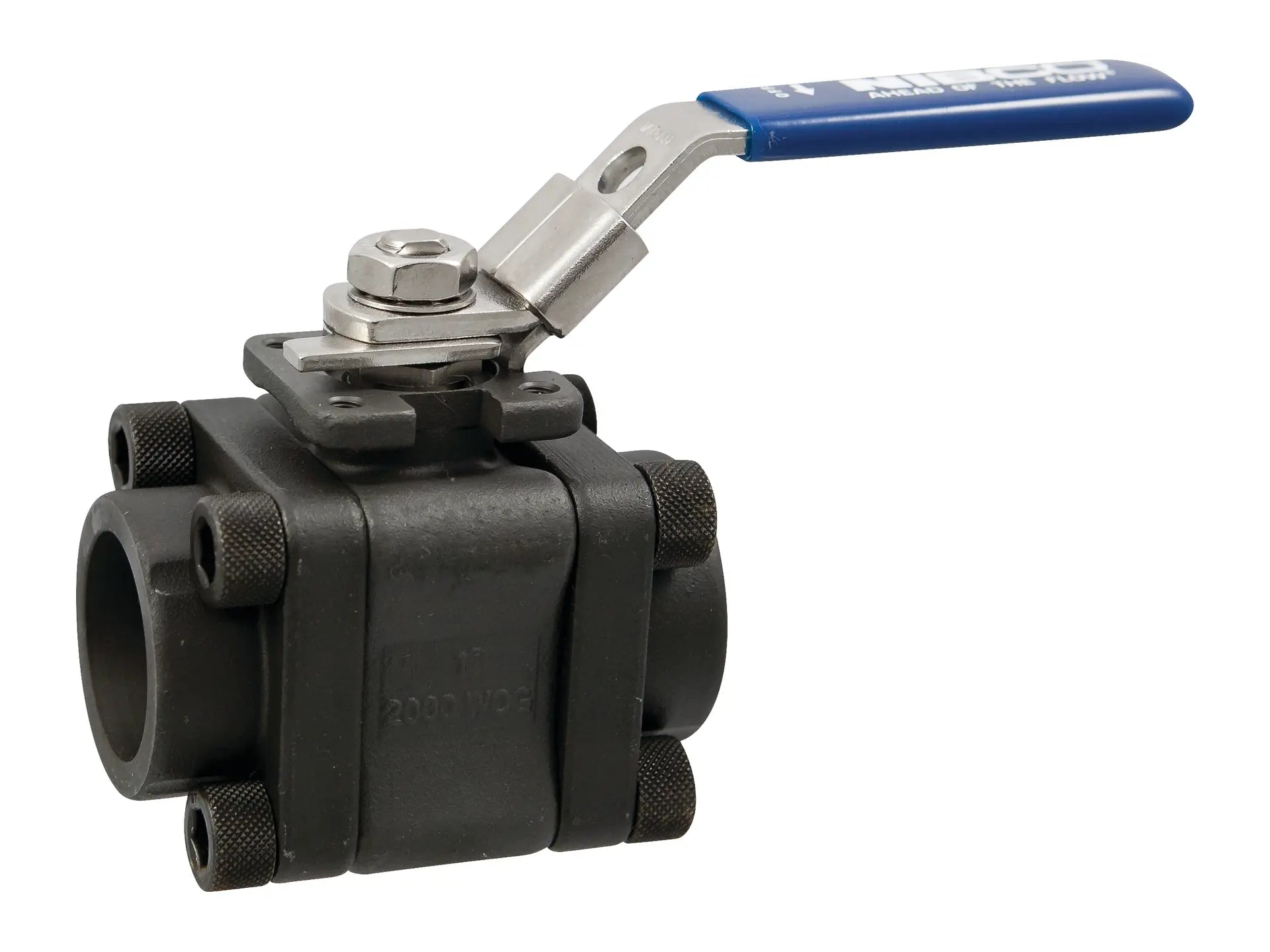

NIBCO KM-590-CS-R-66-FS-LL 3/4" SW Carbon Steel Ball Valve NL97028

SKU: NBC04-1050 Part Number: NL97028 Model: KM-590-CS-R-66-FS-LL

Price:
Sale price$165.95 Regular price$330.30

Save 50% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

3/4" socket weld three-piece, fire safe, full port carbon steel ball valve with conventional port, blowout-proof stem, enclosed bolt design, reinforced PTFE seats, stainless steel ball and stem, Cast ISO mounting pad, vented ball, and locking lever handle.

Features

  • Valve pressure rating 2000 psi 138 bar non-shock cold working pressure
  • Maximum temperature rating 400°F
  • Conventional port
  • Blowout-proof stem
  • Enclosed bolt design
  • Reinforced PTFE seats
  • Stainless steel ball and stem
  • Cast ISO mounting pad
  • Vented ball
  • Locking lever handle
  • Socket weld end connections
  • Conforms to MSS SP-110
  • API-607 Fourth Edition Fire Safe
  • API-608 Anti-Static

Specifications

Manufacturer NIBCO
Part Number NL97028
Model KM-590-CS-R-66-FS-LL
Valve Type Ball Valve
Connection 3/4" Socket Weld
Material Carbon Steel
Cold Working Pressure 2000 psi
Maximum Temperature 400°F
Port Style Conventional
Stem Design Blowout-Proof
Stem Material Stainless Steel
Ball Material Stainless Steel
Seat Material RPTFE
Handle Style Locking Lever with ISO Actuator Mounting Pad
Turns Operations Quarter-Turn
Valve Ball Body Type Three-Piece
Potable Water Code Not LL Compliant - Not Intended for Potable Water
Length 5.54"
Width 4.1"
Height 2.8"
UPC 39923798114
Country of Origin TW

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
