Please note this item is made to order and additional lead-times may apply.

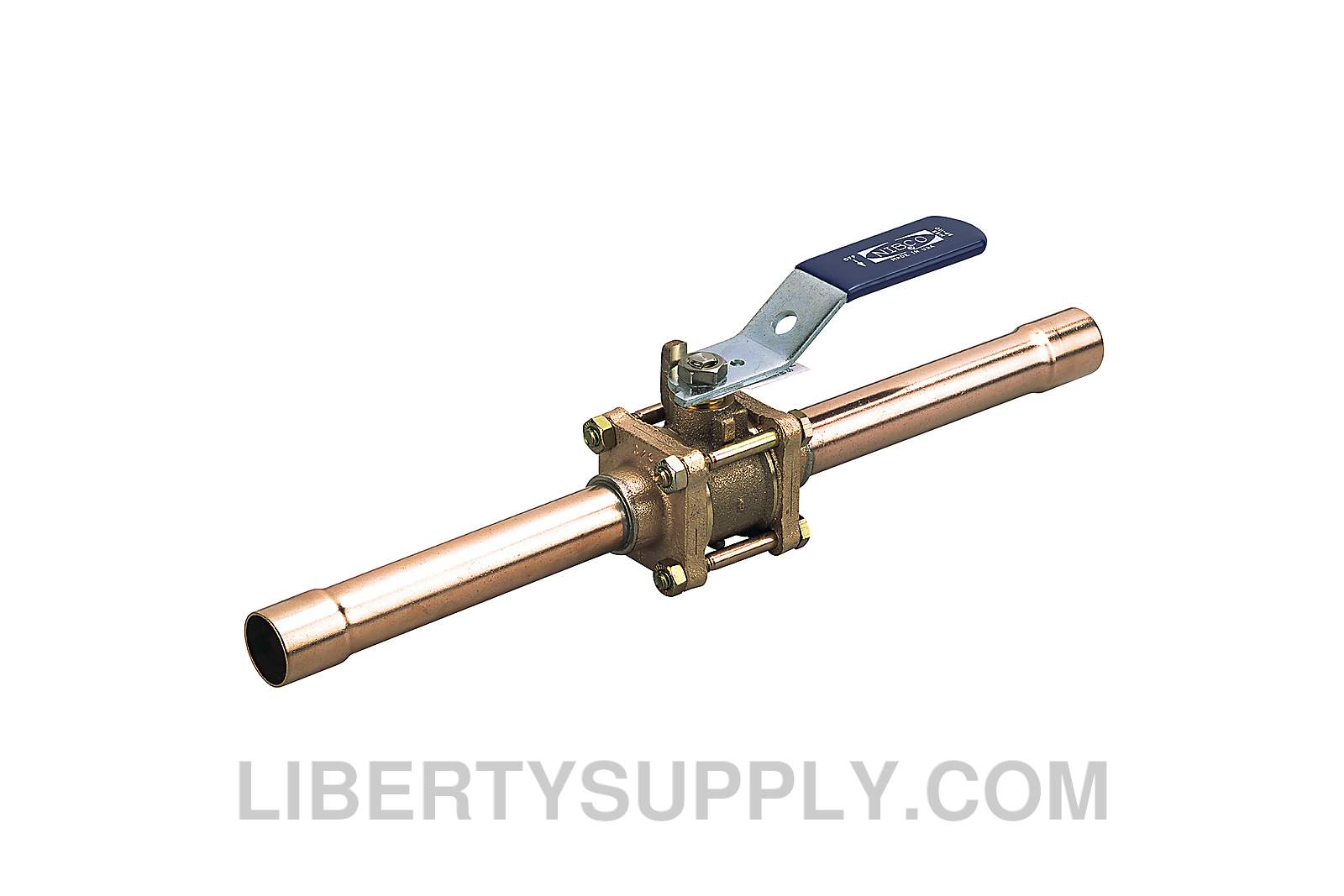

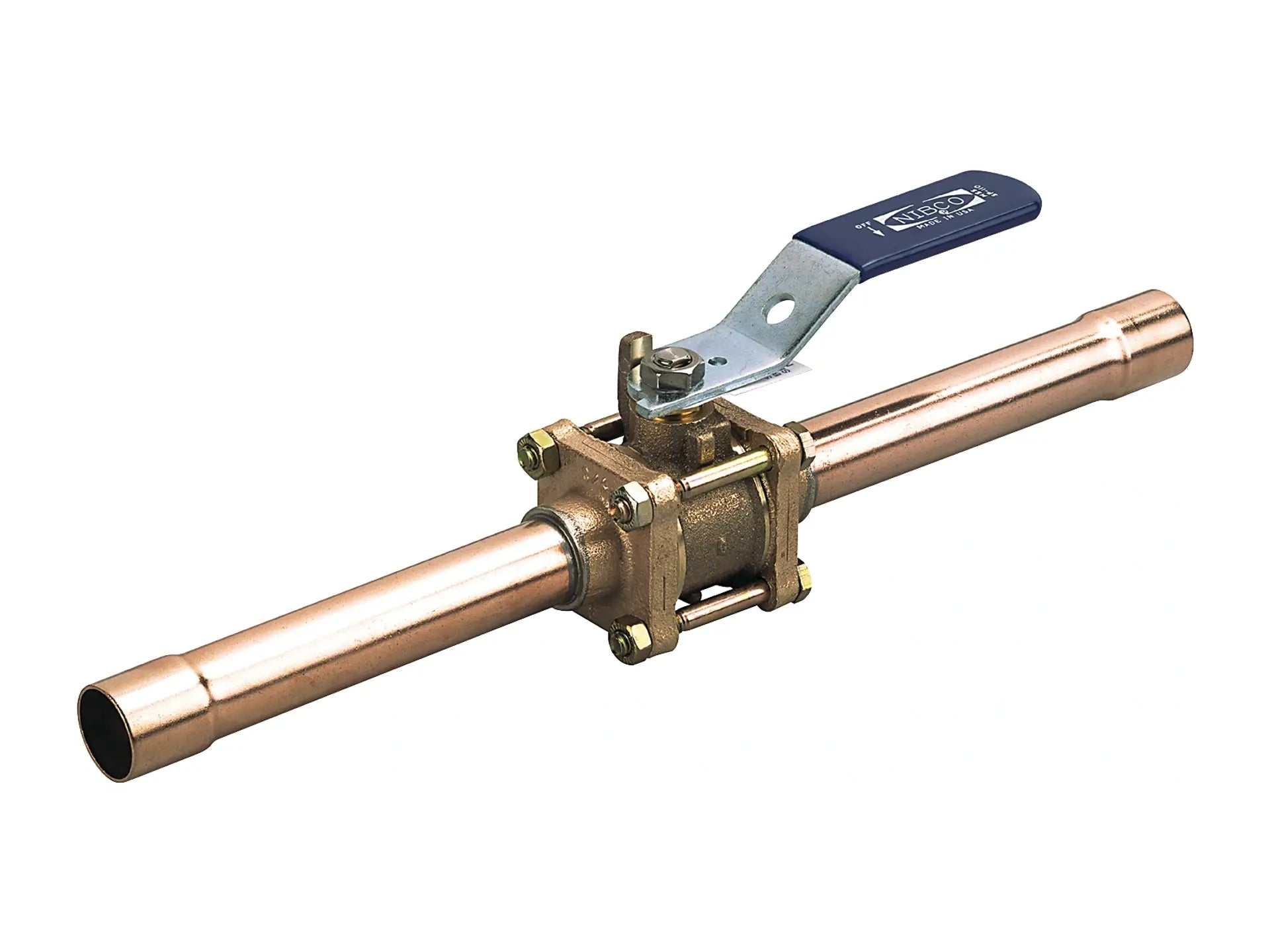

1-1/4" copper stub end three-piece medical gas bronze ball valve with full port, chrome plated brass ball, stainless trim, silicon bronze stem, blowout-proof stem, standard lever handle, and optional NIB-SEAL. It is dezincification resistant. Use in U.S. drinking water applications is prohibited after January 3, 2014.
Features
- Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
- Valve pressure rating 200 psi 13.8 bar for medical gas
- Maximum temperature rating 400°F
- Full port
- Chrome plated brass ball, silicon bronze stem
- Blowout-proof stem
- Standard lever handle, optional NIB-SEAL®
- Solder end connections
- Dezincification resistant
- Cleaned and bagged for medical gas
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-110
- Oxygen cleaning: Meets the requirements of NFPA99 and CGA Pamphlet G-4-1
