NIBCO CS-595-YX-66-EC 1/2" Solder Medical Gas Ball Valve NJ93HE6

SKU: NBC04-1315 Part Number: NJ93HE6 Model: CS-595-YX-66-EC

Price:
Sale price$344.95 Regular price$689.00

Save 50% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

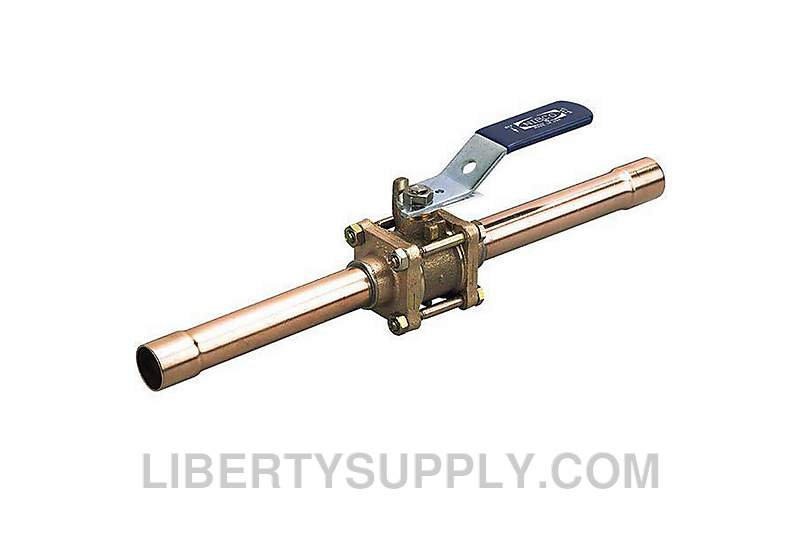

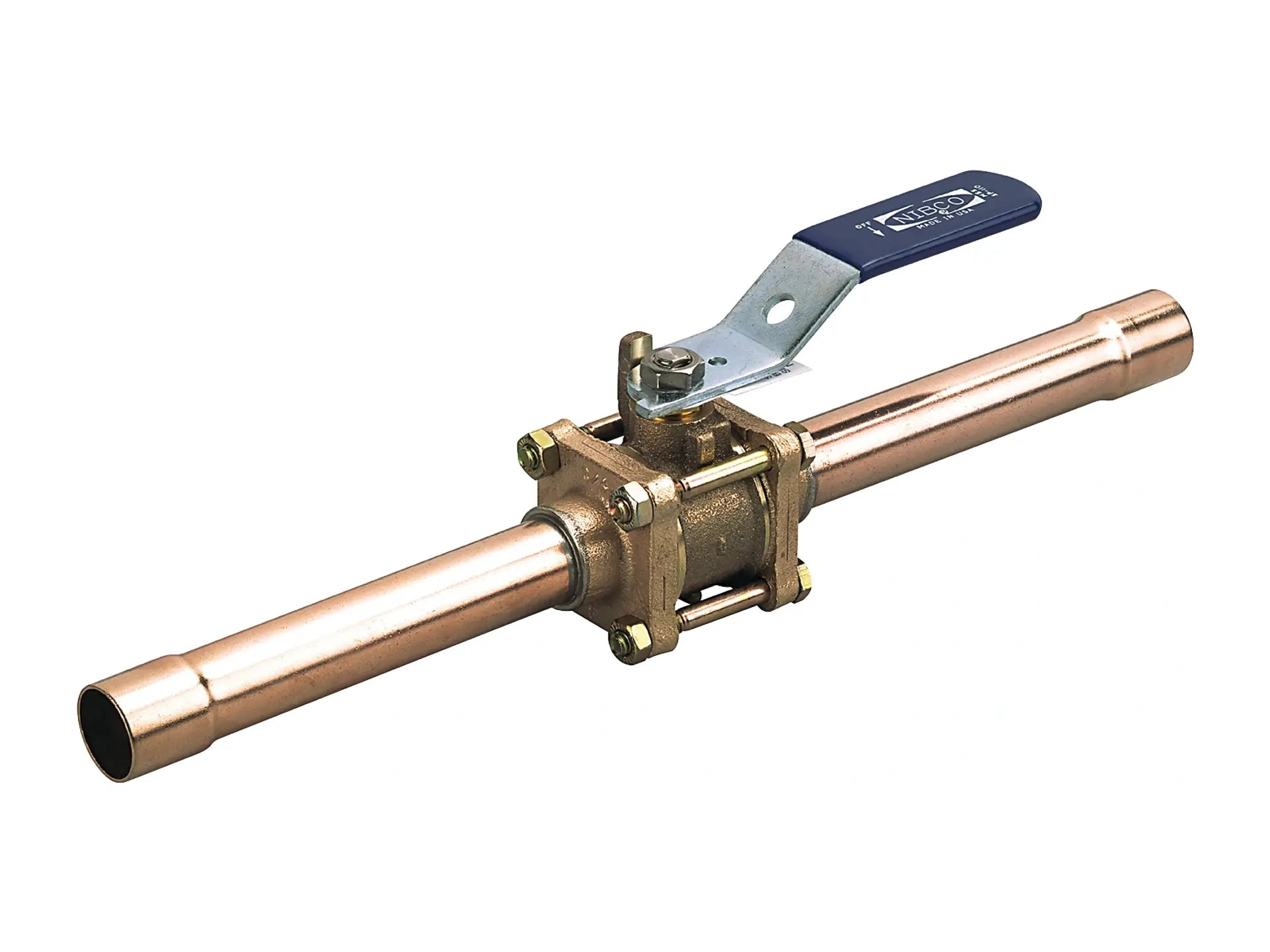

1/2" copper stub end three-piece medical gas bronze ball valve with full port, chrome plated brass ball, stainless trim, silicon bronze stem, blowout-proof stem, standard lever handle, and optional NIB-SEAL, and expanded cup end connection. It is dezincification resistant. Use in U.S. drinking water applications is prohibited after January 3, 2014.

Features

  • Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
  • Valve pressure rating 200 psi 13.8 bar for medical gas
  • Maximum temperature rating 400°F
  • Full port
  • Chrome plated brass ball, silicon bronze stem
  • Blowout-proof stem
  • Standard lever handle, optional NIB-SEAL®
  • Solder end connections
  • Dezincification resistant
  • Cleaned and bagged for medical gas
  • Use in U.S. drinking water applications is prohibited after January 3, 2014
  • Conforms to MSS SP-110
  • Oxygen cleaning: Meets the requirements of NFPA99 and CGA Pamphlet G-4-1

Specifications

Manufacturer NIBCO
Part Number NJ93HE6
Model CS-595-YX-66-EC
Valve Type Ball Valve
Application Medical
Connection 1/2" Solder
Material Cast Bronze
Material Specification ASTM A-53
Cold Working Pressure 600 psi
Medical Gas Pressure 200 psi
Maximum Temperature 400°F
Port Style Full
Stem Design Blowout-Proof
Stem Material Silicon Bronze
Ball Material Chrome-Plated Brass
Seat Material PTFE
Trim Material Stainless Steel
Turns Operations Quarter-Turn
Valve Ball Body Type Three-Piece
Special Options Oxygen Service
Potable Water Code Not LL Compliant - Not Intended for Potable Water
Length 13.13"
Width 2.94"
Height 1.83"
UPC 39923693068
Country of Origin US
Notes and Disclaimers NIB-SEAL® is a registered trademark of NIBCO INC.
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
