Please note this item is assembled to order and additional lead-times may apply.

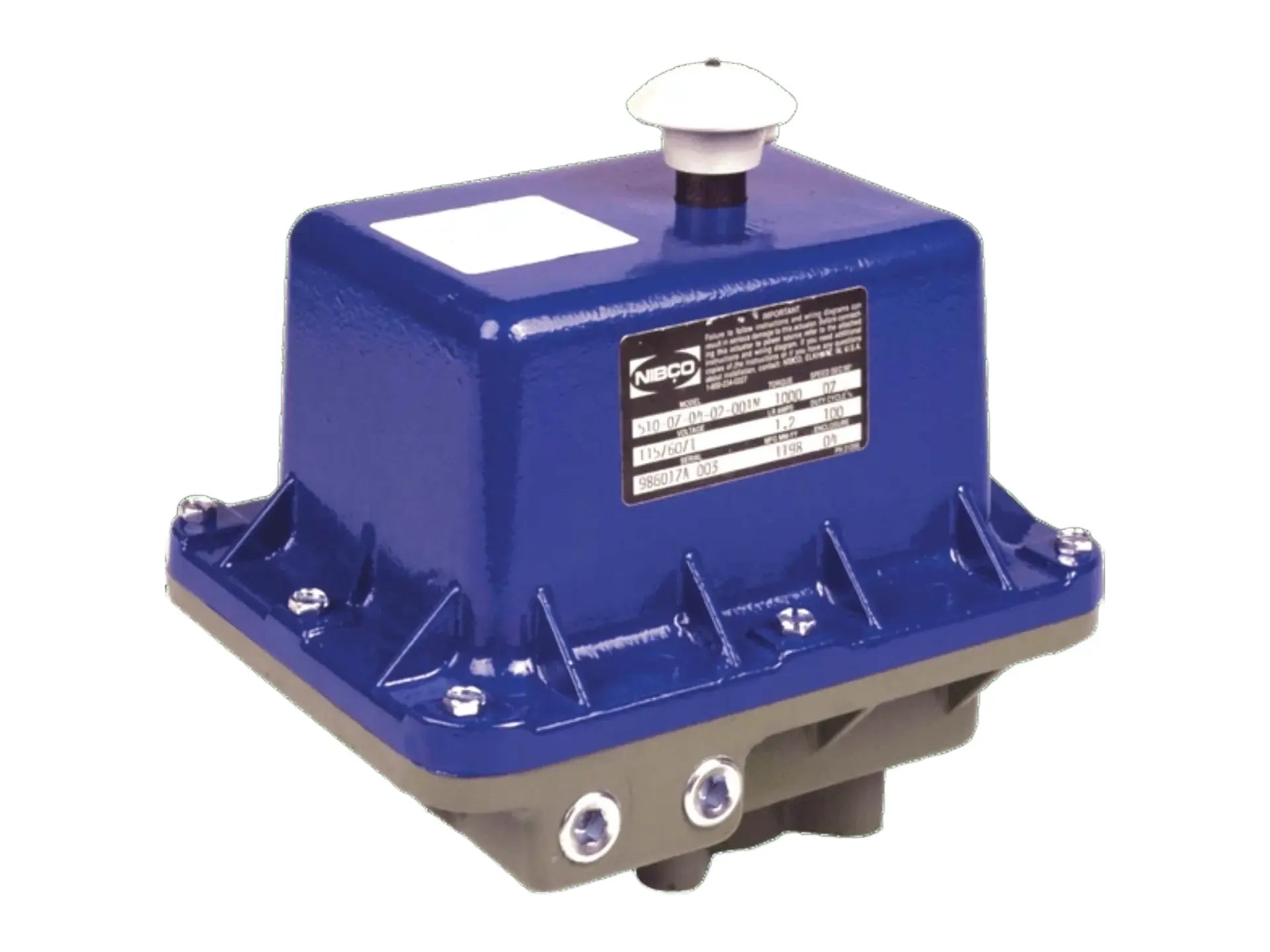

220 VAC, 10-second, NEMA 7, mid-range torque electric actuator with heater and thermostat installed, permanently-lubricated case-hardened steel spur gear train, case-hardened steel drive shaft, single phase capacitor run motor with thermal overload protection, captive slotted hex bolts, and declutchable manual override. This actuator is rated at 30% duty cycle and is operational in any mounting orientation. There are two single-pole double-throw end of travel micro switches with adjustable cams.
Features
- Thermostat and heater installed
- Case hardened steel spur gear train is permanently lubricated
- Case hardened steel drive shaft
- Operating temperatures -40°F with standard heater activated, to +140°F
- Single phase capacitor run motor with thermal overload protection
- Declutchable manual override with position indicator
- Dual machined conduit entrances
- Captive slotted hex bolts on enclosure
- Operational in any mounting orientation
- Two single-pole double-throw end of travel micro switches with adjustable cams
- Weight 17 to 18 lbs.
- Voltage 24 VDC and 220 VAC
- Torque 700-1600 in/lb
- Enclosure certified to NEMA 4 and 7
- Female DIN/ISO F07 output drive and F07/F10 bolt pattern
