Please note this item is assembled to order and additional lead-times may apply.

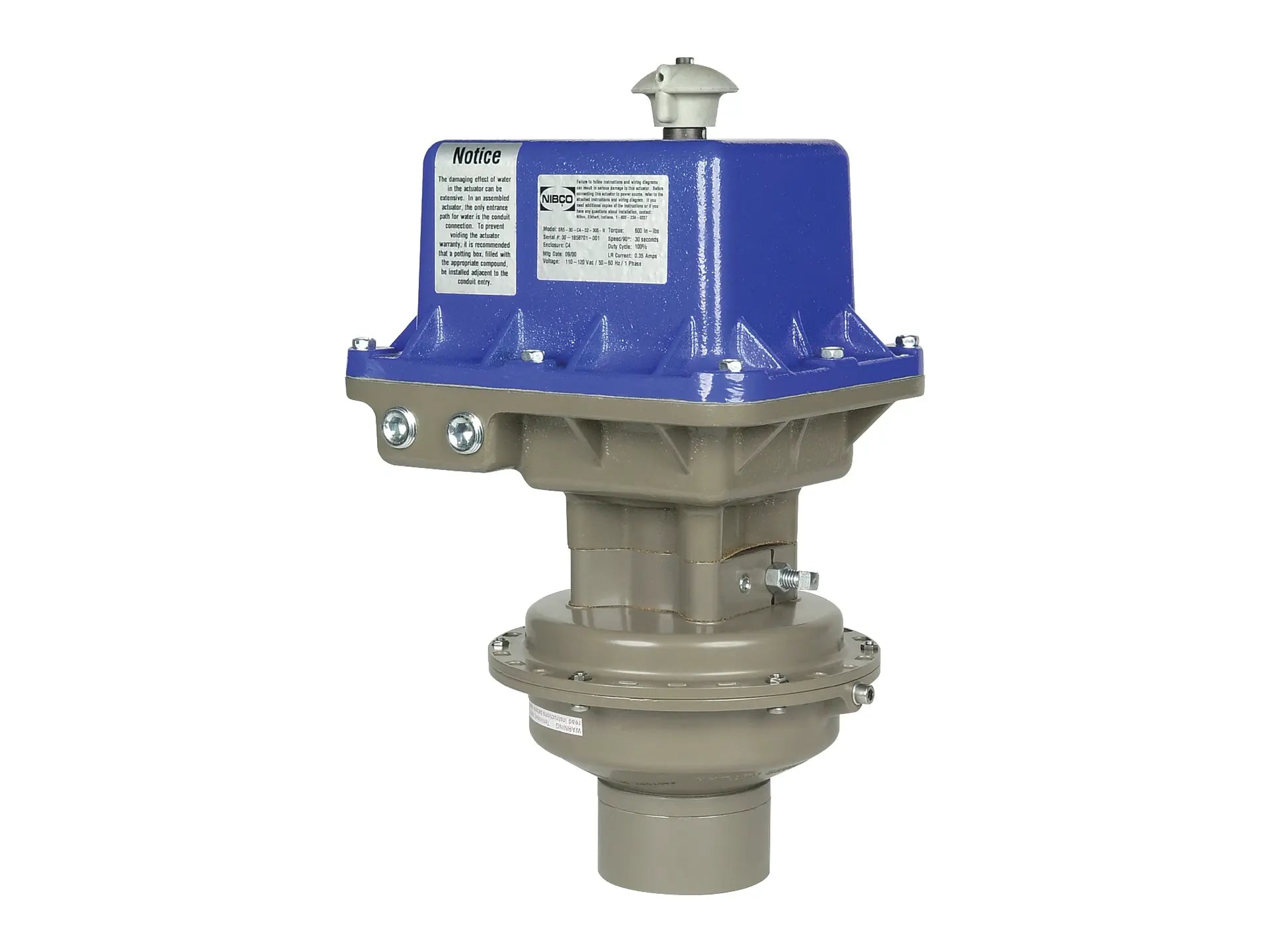

220 VAC, 10-second, NEMA 4, electric spring return actuator with heater and thermostat installed, permanently-lubricated steel gear train, hardened steel female drive coupling, electric mechanical brake, thermally protected, capacitor run, single phase motor, clockwise (CW) spring return, captive hex bolts on enclosure, and adjustable mechanical stop at the failsafe location.
Features
- Heater and thermostat installed
- Permanently lubricated steel gear train
- Hardened steel female drive coupling
- Electric mechanical brake
- Operating temperatures -40°F to +140°F
- Thermally protected, capacitor run, single phase motor
- Clockwise (CW) spring return
- Two 1/2" NPT conduit entrances
- Captive hex bolts on enclosure
- Adjustable mechanical stop at the failsafe location
- 115 and 220 VAC
- Torque 300 to 700 in/lb
- F04 and F05 DIN/ISO mount and drive
- Enclosure certified to NEMA type 1, 2, 3, 3R, 4, 4X, 5 and 12
