Grundfos is a global leader among industrial pump manufacturers, well-known for innovation and reliability, delivering cutting-edge water pump solutions across various sectors. Their extensive product range includes submersible pumps, dosing pumps, disinfection systems, booster pumps, wastewater pumps, circulator pumps, end-suction pumps, and fire pumps.

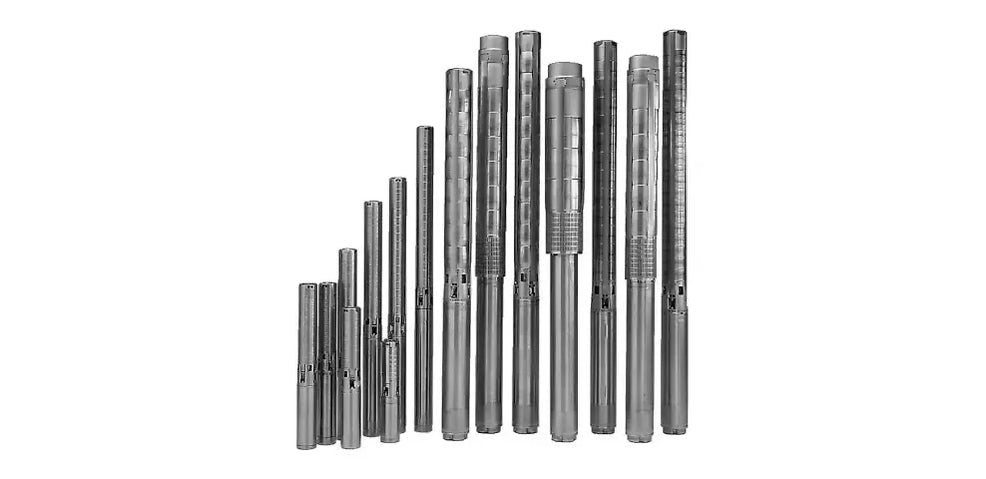

Grundfos Well Submersible Pumps are renowned for their reliability and efficiency in submersible water supply systems, serving residential, commercial, and agricultural applications. This article explains how well pumps work and outlines the main components of the most popular Grundfos Well Pump models, such as the SQ Submersible pump series and SP Submersible pump series.
If you want to learn more about submersible pumps and their components, this article will help.
What Are Well Submersible Pumps?
Recently, well-submersible pumps have been used more and more in domestic, industrial, and commercial sectors due to their unique characteristics and high efficiency.
By definition, a well-submersible pump is a mechanical device that moves fluids from one place to another, with its body completely submersible in the liquid being pumped.
Unlike standard centrifugal pumps, well-submersible pumps have the characteristic of pushing fluid through their components rather than pulling; this design is chosen to handle the high pressure exerted on the pump by the liquid in which it is submerged. This type of operation reduces the risk of negative pressure in the system and substantially lowers the likelihood of pump cavitation during operation.
Another difference between submersible and standard centrifugal pumps is that the submersible doesn't need priming because the entire impeller-motor assembly is submerged in the pumped fluid.
Submersible well pumps typically have multiple backward-curved vane impellers mounted on a single shaft and driven by an induction motor, which may be single- or three-phase. As water passes through each impeller stage, it is accelerated radially, gaining kinetic and pressure energy. Each impeller is followed by a stationary diffuser that prepares the flow for the next stage, allowing submersible pumps to generate high total head.
Finally, a non-slam check valve is typically installed at the pump discharge to prevent reverse flow and reduce water hammer during shutdown, which is common in high-pressure systems.
All these features make Grundfos submersible pumps a better choice for some applications, such as:
- Groundwater Extraction
- Irrigation
- Residential Water Pressure Boosting
- Municipal Wells
This article outlines the main submersible pump components mentioned above and explains how they contribute to the pump's operation.
Key Components of Grundfos Submersible Well Pumps
To demonstrate in a general perspective, we can break down the Grundfos SQ model submersible pump into two central cores:
1. Pump
Grundfos submersible pumps offer a range of features that ensure highly efficient operation in various environments and demands.
Benefits such as 100% stainless steel components inside and out for long service life, sand and aggressive water resistance, dry-running protection, and an optimum design for durability make it an excellent choice for any project.
Some other valuable features:
- A wide pump range - up to 1,400 gpm / 2,100 ft
- Bearings with sand channels, water-lubricated
- Inlet Strainer
- Check valve
- Priming screw
- Stop Ring
Below is a breakdown of the parts of a standard Grundfos SQ model submersible pump:
2. Motor
Grundfos offers a complete motor range to adapt operations to application requirements, from domestic groundwater to heavy-duty industrial applications.
In general, induction motors are fully sealed, have an AISI 304 stainless steel exterior, and are entirely suitable for submerged operation. In aggressive water environments, an ''R'' version is available using AISI 904L material.
The motors are also equipped with temperature measurement and overtemperature protection, a cooling jacket and chamber, lightning and upthrust protection, and SiC/SiC mechanical shaft seals.
Below is the breakdown of the parts of a Grundfos SQ model submersible pump:
Grundfos Submersible Well Pump Applications
Due to their unique characteristics, well/submersible pumps can be a good choice for different applications, domestic, commercial, and industrial. Below we have listed some operational descriptions for the most popular well/submersible pump applications, plus some benefits and disadvantages when choosing this solution:
1. Groundwater Extraction
Typically requiring considerable static pressure due to the depth of the fluid to be pumped, groundwater extraction is one of the applications for which well/submersible pumps deliver good performance and efficiency.
In most cases, the pump is installed in boreholes or directly on deep-water wells. In municipal and industrial supply, it's common to operate pumps in a duty-and-standby arrangement to ensure a continuous supply, especially for critical applications.
- Benefits: Deep Installation capability (Grundfos SP pumps can reach depths of 2,000 ft, depending on the required static pressure), corrosion-resistant materials (stainless steel arrangement for acidic or mineral-rich water).
- Disadvantages: Installation Complexity (pump must be well-sized for efficient operation, especially under critical depth constraints), initial investment may be higher than other solutions.
2. Irrigation
In an efficient system, we are constantly improving the way we waste energy, reuse rainwater, store it, and make it available afterward. That is a good path to achieving that. This is a process most farms adopt to save energy/money. Due to their high-pressure availability and corrosion resistance, well submersible pumps are also a good choice for irrigation systems.
- Benefits: High pressure and flow rates available; automated integration (easily integrates with tanks, timers, and irrigation controllers).
- Disadvantages: sediment management, oversizing risk.
3. Residential water pressure boosting
Homes with well water systems can have submersible well pumps as their best friends to ensure consistent water pressure delivered to multiple outlets. Combined with CU301 (constant pressure controller), models such as SQE Submersible pump can be easily integrated with the domestic buffer/pressure tanks installed, automatically managing pump operation. The pump will start automatically when a drop in system pressure is detected. This kind of automation can improve the quality and efficiency of the entire domestic water system.
- Benefits - Quiet, compact, and efficient operation.
- Disadvantages - Requires a pressure tank system.
How to Choose the Right Grundfos Submersible Well Pump
Selecting the correct Grundfos submersible well pump is crucial for system efficiency and longevity. While Grundfos offers a wide portfolio, the correct model depends on several key parameters:
- Designed Flow Rate (GPM): It's determined by system/application demand.
- Total head (ft): Includes static lift, pipework losses, and discharge pressure requirements.
- Well depth: Used for cooling dimensioning and mechanical compatibility.
- Water quality: Application-dependent; important for selecting the appropriate pump construction materials.
- Power supply: Single-phase vs. three-phase, depending on plant availability and motor power.
For small residential applications, the Grundfos SQ and SQE series may be a good option due to their compact design, built-in protection, and ease of installation. For deeper or higher-capacity applications, the Grundfos SP series delivers industry-leading efficiency and durability.
Note: For accurate sizing, always refer to manufacturer performance curves or consult a pump specialist.
Common Installation and Maintenance Considerations
While Grundfos submersible pumps are engineered for long service life and premium efficiency, proper installation and routine checks significantly improve reliability.
Installation Best Practices
- Install surge and lightning protection, especially in rural locations.
- Use a properly sized check valve to avoid reverse flow and water hammer.
- Maintain correct motor cooling flow velocity inside the well casing.
- Ensure correct cable sizing to minimize voltage drop.
Maintenance Tips
- Periodically monitor operating pressure and flow.
- Inspect electrical connections and insulation resistance.
- Watch for signs of sand production or abnormal cycling.
- Verify controller settings on variable-speed systems (SQE + CU301).
The main advantages of Grundfos submersible well pumps are the reduced need for frequent maintenance compared to surface pump systems.
Submersible Well Pumps vs Other Pump Types
When compared to jet pumps or surface centrifugal pumps, submersible well pumps offer some performance advantages:
| Feature | Submersible Well Pumps | Surface / Jet Pumps |
|---|---|---|
| Efficiency | High | Moderate |
| Noise Level | Very low | High |
| Cavitation Risk | Minimal | Higher |
| Installation Depth | Deep wells | Shallow only |
| Priming Required | No | Yes |
This makes submersible pumps the preferred solution for deep wells, pressure boosting, and high-head applications.
Frequently Asked Questions
Optimized pump size depends on the designed flow rate (GPM), head (ft), and the depth of the well. Residential homes typically require a lower water flow rate, while irrigation and industrial applications may require significantly more. Always size the pump relying on the manufacturer's performance curves to avoid oversizing or inefficient operation.
Yes, submersible pumps feature high-efficiency motors, optimized hydraulics, and smart controls. When applied correctly, they can significantly reduce energy consumption.
Grundfos SQ and SQE pump series include dry-running protection that automatically stops the pump when water levels drop too low. However, dry conditions should be avoided, as continuous dry operation can reduce system lifespan.
Not at all. The submersible pump and motor operate underwater. They are extremely quiet compared to surface- or jet-pump systems.
With proper installation and water quality conditions, Grundfos submersible pumps typically may last around 10 years or more. Stainless steel construction and integrated motor protection significantly extend service life.
