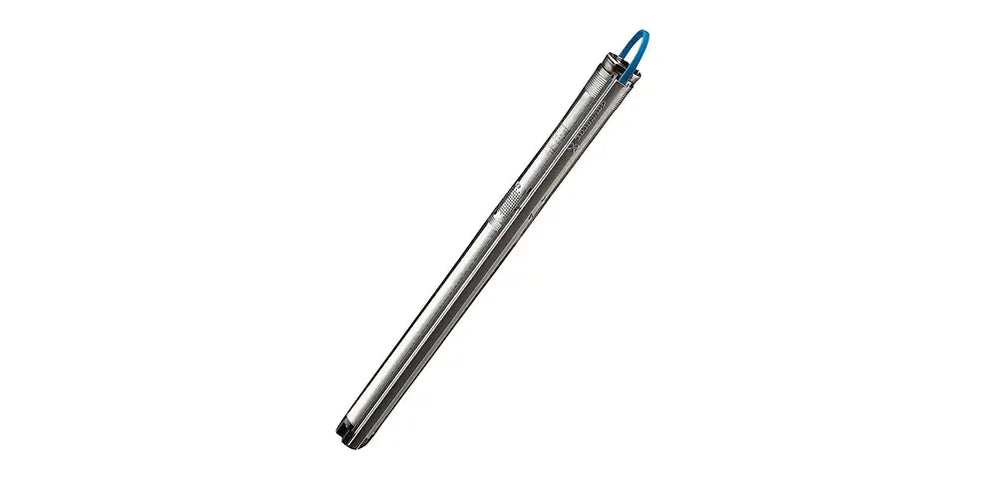

Grundfos SQ Submersible Groundwater Pumps

Grundfos SQ Submersible Groundwater Pumps for Residential Wells, Domestic Water Supply, Irrigation, and Pressure Boosting

Grundfos SQ Submersible Groundwater Pumps are compact, multistage pumps designed for supplying groundwater from drilled wells and boreholes. With a slim 3-inch diameter, the SQ range is particularly well suited for residential wells, domestic water supply, irrigation, small water systems, and applications where reliable groundwater pumping is required in a compact installation.

The Grundfos SQ uses a multistage hydraulic design to provide the pressure needed to lift groundwater from a well and distribute it throughout the water system. Its narrow construction allows installation in boreholes as small as 3 inches, providing greater flexibility for new well installations and groundwater pump replacement projects.

A key advantage of the SQ range is its permanent magnet motor technology combined with integrated electronics. The pump incorporates soft-start functionality, helping reduce starting current and mechanical stress during startup. Built-in motor protection also helps protect the pump against operating conditions that could otherwise shorten equipment life.

Unlike the variable-speed Grundfos SQE, the SQ is primarily designed for conventional on/off operation. This makes it a practical choice for groundwater systems using traditional controls and tanks where constant-pressure variable-speed operation is not required. Its combination of compact size, integrated protection, and multistage performance makes the SQ a versatile solution for residential and light commercial groundwater applications.

Features

• Compact 3-inch submersible groundwater pump design
• Multistage pump construction for groundwater lifting and pressure generation
• Designed for drilled wells and boreholes
• Suitable for boreholes as small as 3 inches
• Permanent magnet motor technology
• Integrated electronics for pump and motor protection
• Built-in dry-running protection
• Protection against overvoltage and undervoltage
• Overload protection
• Overtemperature protection
• Designed for conventional on/off groundwater pumping
• Compact construction simplifies installation in narrow wells
• Suitable for clean groundwater applications
• Designed for reliable submerged operation
• Useful for new well installations and replacement of existing submersible well pumps


Applications

• Residential groundwater supply
• Private wells
• Domestic water supply
• Drilled wells
• Boreholes
• Residential plumbing systems
• Small commercial water supply
• Irrigation systems
• Garden and landscape irrigation
• Groundwater transfer
• Water pressure boosting
• Tank filling
• Rural water systems
• Small water distribution systems
• Submersible well pump replacement
