If you have ever looked at a specification sheet for a vertical multistage pump and wondered what is actually happening inside that compact, cylindrical body, this article is for you.

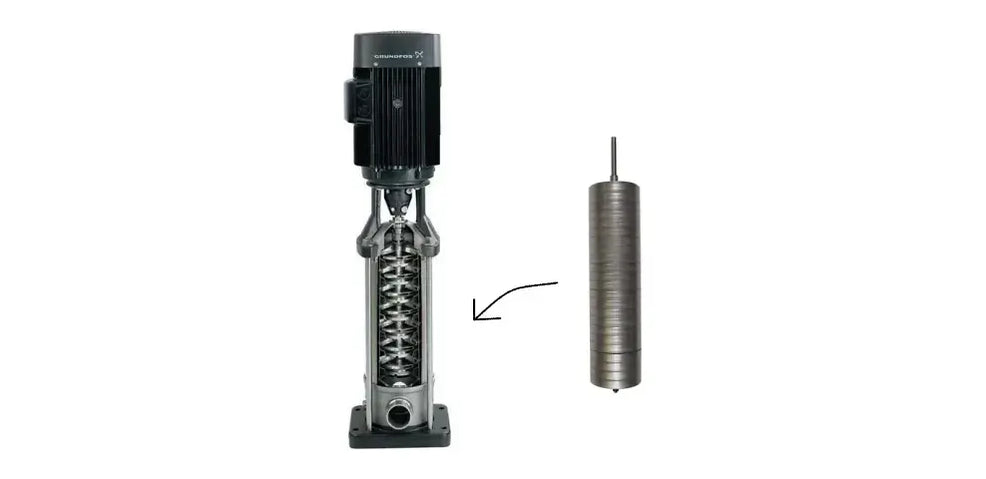

A pump stack chamber is the internal wet-end assembly of a multistage centrifugal pump - a series of stacked impellers, diffuser bowls, and intermediate pressure chambers arranged in sequence on a single shaft. Each chamber in the stack performs the same job: take fluid in at one pressure, add energy to it, and pass it along to the next stage at a higher pressure without changing the flow rate. Stack enough of them together, and you can reach pressure levels that a single impeller could never achieve on its own.
Understanding how the stack works - and why it is designed the way it is - is fundamental to selecting, operating, and maintaining the hydronic pumps that keep commercial buildings running.
The Anatomy of the Pump Stack Chamber: What Is Inside
Before we get into the physics of pressure, it helps to know the physical components that make up a pump stack chamber. Every stage in the assembly contains the same set of parts working together:

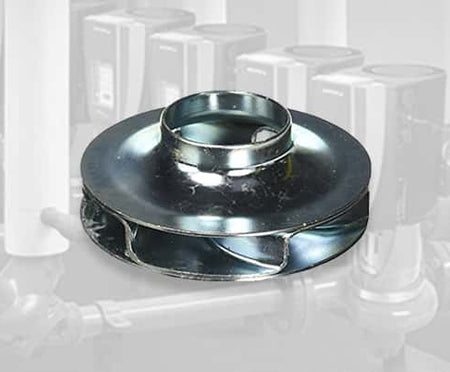

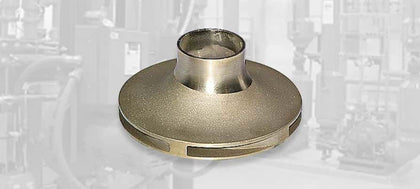

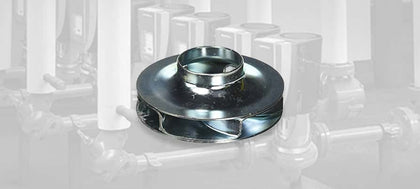

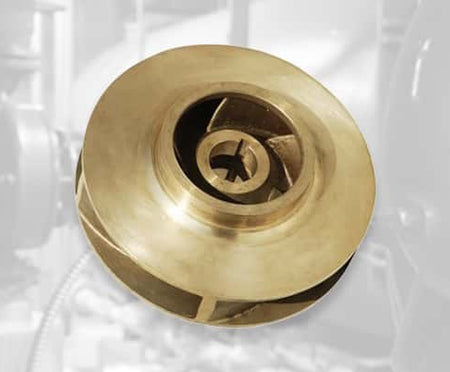

- Impeller - The impeller is the rotating element that does the actual work and is the most important part of the chamber stack. When spinning, its curved blades accelerate the fluid outward by centrifugal force, converting the motor's shaft energy into fluid velocity.
- Diffuser bowl - The diffuser bowl (also called the stage casing or bowl diffuser) surrounds the impeller and contains guide vanes that redirect the high-velocity fluid. As the fluid slows down as it moves through the diffuser, its kinetic energy converts into pressure - this is where the pressure gain actually occurs.
- Intermediate chamber - The intermediate chamber (or crossover passage) is the channel between one stage and the next. It takes the pressurized discharge from stage one and routes it cleanly to the suction side of the next-stage impeller.
- Suction bell - Also called suction casing, is the inlet to the entire stack, located at the bottom of the assembly on vertical pumps. It draws fluid into the first impeller at system suction pressure.
- Discharge head - The discharge head sits at the top of the stack and routes the final high-pressure output of the last stage into the system piping.
All of these components are assembled in series - one on top of the other - on a single common shaft driven by a motor mounted above (on vertical pumps) or alongside (on horizontal multistage pumps).
The shaft is the structural and mechanical backbone of the entire stack, transmitting rotational force from the motor to every impeller simultaneously. Although the shaft is not considered part of the chamber stack itself, it's an important component that works with the entire arrangement and is included in chamber stack replacement kits.
This stacking arrangement is where the term pump stack chamber comes from: multiple pressure chambers, each containing an impeller-diffuser pair, physically stacked in sequence to build cumulative pressure.
The Core Relationship: More Stages = More Pressure
Here is the engineering principle that makes the pump stack chamber so powerful - and so relevant to hydronic HVAC design.
Each stage in the stack produces a fixed amount of pressure rise, measured in feet of head (or PSI). That pressure rise is determined by the impeller geometry, the impeller speed (RPM), and the fluid density. What is not affected by is how many stages come before or after it. Each impeller does the same amount of work regardless of its position in the stack.This means that pressure accumulates across stages in a perfectly linear relationship. Two stages produce twice the head of one.
Five stages produce five times the head of one. The flow rate - the volume of fluid moving through the pump - stays constant throughout the entire stack.
For engineers, this principle is crucial for system head calculations. When sizing a pump, the total dynamic head (TDH) must be calculated to overcome friction losses in the piping, static lift, and pressure drop across equipment. If that TDH exceeds what a single impeller can generate (based on the pump design), the designer will move to a multistage stack and select the number of stages needed to cover the duty point.
Video credit: TECHWORLD
The Fundamental Rule
Adding stages increases pressure (TDH). It does not increase flow. Flow is determined by impeller design and motor speed - not by the number of stages.
| Number of Stages | Approximate TDH | Typical HVAC Application |
|---|---|---|
| 1 Stage | ~35–50 ft | Low-rise, short loops |
| 2 Stages | ~70–100 ft | Mid-rise, moderate runs |
| 3 Stages | ~105–150 ft | High-rise domestic water |
| 5+ Stages | ~175–250+ ft | Tall buildings, long distribution |
Single-Stage vs. Multistage: When the Stack Is the Right Answer
Not every HVAC application needs a multistage pump. A single-stage centrifugal pump - with one impeller and one volute - is often the right tool for large-volume, lower-head applications like chilled water circulation in a horizontal distribution system or condenser water loops.
The pump stack style (mainly multistage centrifugal pumps) is the right answer when the system head demand exceeds what a single impeller can economically deliver, or when oversizing a single-impeller model results in an inefficient, noisy pump.
The multistage stack design solves this by keeping the size of each impeller constant while adding more in series to accumulate more head. Running at a balanced efficiency point, the result is a more efficient pump that operates with less vibration and noise, and with a longer service life than an oversized single-stage equivalent.
| Factor | Single-stage pump | Multistage pump (stack) |
| Pressure capability | Low to moderate (single TDH) | High (TDH multiplies per stage) |
| Flow rate | Higher flow at lower head | Moderate flow, high head |
| Physical size | Compact, simple casing | Taller / longer (stacked stages) |
| Energy efficiency | Good for low-head applications | Better efficiency at high-head duty |
| Maintenance complexity | Simple - fewer internal parts | More components require expertise |
| Best for | Chilled water circulation, short loops | High-rise supply, long hydronic runs |
Video credit: An Pump - Machinery
Where Pump Stack Chambers Appear in Commercial HVAC Systems
Once you know what to look for, multistage pump stacks show up throughout commercial HVAC and hydronic systems. Common applications include:
- High-rise water supply- High-rise domestic hot and cold water distribution, where static lift and pipe friction in tall buildings demand 150 to 300+ feet of TDH, it's a case that only a multistage stack can deliver the water required efficiently.
- Long-run chilled water loops - Chilled water distribution in large commercial/industrial buildings with long pipe runs, where the cumulative friction losses across hundreds of feet of piping exceed single-stage pump capabilities.
- Hydronic heating boosters - Hydronic heating booster applications in larger commercial buildings, where the primary loop pressure is insufficient to push flow through secondary heating coils or radiator circuits.
- Ground source heat pump systems - Ground source heat pump loops, where well depth and distribution distances require high head at moderate flow rates - a duty point that multistage stacks handle with exceptional efficiency.
- Pressure booster sets - Pressure booster sets for fire protection pre-pressurization, where building codes require a specific residual pressure at sprinkler heads that single-stage pumps often cannot sustain.
In all of these applications, the pump stack design allows the system designer to achieve a precise pressure target without oversizing the motor, sacrificing efficiency, or installing multiple parallel pumps when a single well-selected multistage unit will suffice.
Selecting the Right Number of Stages for Your System
Selecting a multistage pump starts with a clear and solid system head calculation - the total dynamic head (TDH) the pump must overcome at the design flow rate. It will include all pressure drops in the pipework, including those caused by valves and equipment. Once you have that number, the pump selection process is straightforward:
- Calculate the system TDH at design flow (friction losses, static lift, and equipment pressure drop).
- Review the manufacturer's pump curve for the chosen model to identify the TDH per stage at your design flow rate.
- Divide the required TDH by the TDH per stage to determine the minimum number of stages.
- Round up to the next available stage configuration and verify the pump curve near the best efficiency point (BEP) at design flow.
- Consider future expansion: most multistage pump designs allow you to add stages later by purchasing additional stage components. Selecting a pump frame that supports more stages than you currently need can be a cost-effective strategy.
One important note: more stages do not always resolve the system operation. Adding more stages to the pump beyond what the system requires moves the operating point away from BEP, reducing efficiency, increasing energy costs, and accelerating component wear. Precision in stage selection pays dividends throughout the pump's service life.
Frequently Asked Questions
A pump stack chamber is the internal wet-end assembly of a multistage centrifugal pump. It consists of a series of impellers, diffuser bowls, and intermediate pressure chambers arranged in sequence on a single rotating shaft. It increases the pressure while maintaining the inlet flow rate.
Each impeller in the stack accelerates the fluid outward using centrifugal force, converting motor energy into fluid velocity. The surrounding diffuser bowl then slows the fluid down and converts that velocity into pressure energy. The pressurized fluid is then channeled into the next stage, where the process repeats. Because pressure accumulates additively from stage to stage, the total head is approximately equal to the head per stage multiplied by the number of stages.
No. Adding stages to a multistage pump increases pressure (TDH) but does not increase flow rate. The impeller diameter and motor speed determine the pump flow rate capacity. Stages work in series to build pressure; they do not work in parallel to increase flow.
A multistage pump stack is the right choice when your system requires a pressure demand that a single impeller cannot meet efficiently. Common HVAC triggers include high-rise water supply systems, long-run chilled water distribution systems, and hydronic heating systems with significant friction losses. If a single-stage pump would need to be oversized to meet the head requirement, a multistage pump will almost always be the more efficient and cost-effective choice.

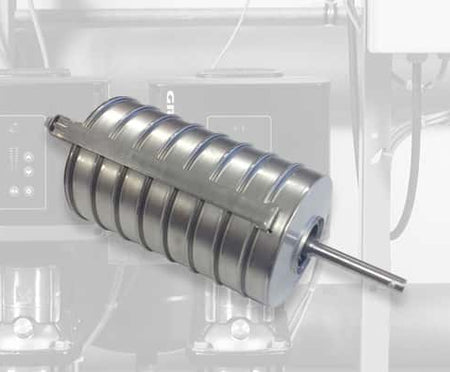

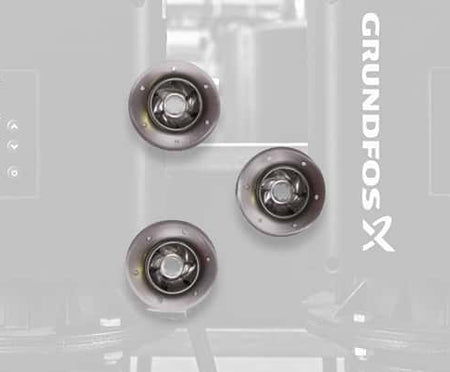

Pump Stack Chamber Kits Available in Liberty Supply
