Commercial hydronic systems depend on efficient water circulation to operate as needed. Whether the application involves boiler loops, air handlers, radiant heating, or chilled-water distribution, the circulator pump has a vital role in any system performance. It can be the system's largest electrical consumer. It's crucial to understand and ensure that the chosen pump aligns with system expectations.
Taco is one of the most prominent pump manufacturers in the USA, and the Taco 2400 series has become a widely used solution in commercial buildings because it delivers consistent flow, dependable head pressure, and long-term durability across a broad range of hydronic applications. For many industry professionals, the Taco 2400 pump is a trusted choice for commercial systems that require efficiency, integration, and precise control.
This article aims to expose the Taco 2400 Series features, curves, and applications, and to correlate the characteristics of hydronic loops to optimize the system.

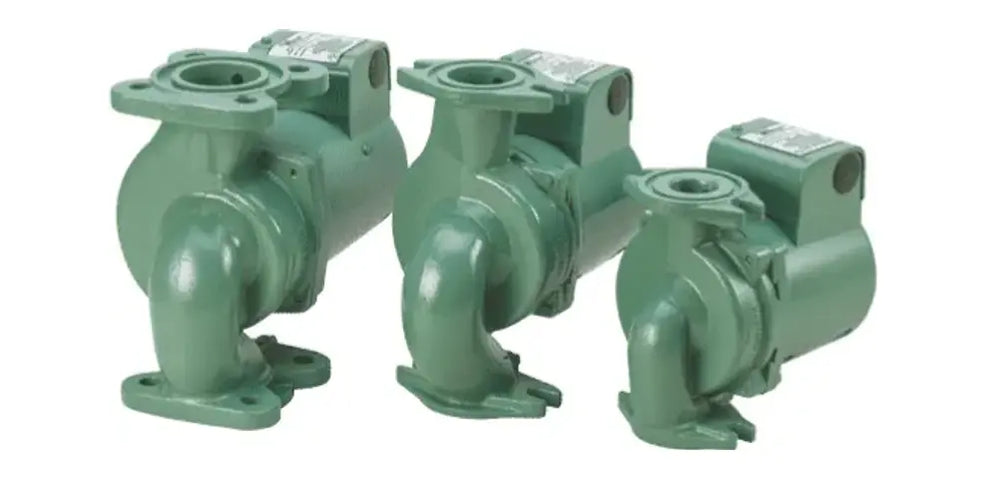

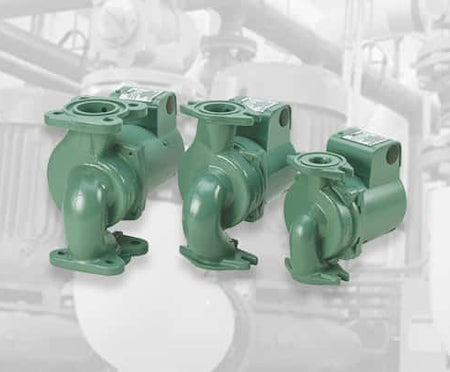

Taco 2400 Series Overview
The Taco 2400 series high-capacity circulators are close-coupled pumps designed specifically for commercial building demands. These pumps are specified for systems that require medium to high flow rates and increased head pressure, given their long piping layouts and extensive component lists.
The Taco 2400 pump also handles some specific system characteristics, such as continuous or extended run times and consistent performance in heating and cooling loops for critical applications. This is why the range is frequently used in office buildings, schools, healthcare facilities, and multi-use commercial properties rather than small residential systems.
Taco 2400 Range Performance
Below is a general Taco 2400 range performance:
- Flow Range: 4 – 150 GPM
- Head Range: 0 – 61 ft
- Max. Fluid Temp: 225°F (107°C)
- Min. Fluid Temp: 40°F (4°C)
- Max. Working Pressure: 150 PSI
- Motor Power: ½, 1/3, 1/6, 1/10
- Connection Sizes: ¾” – 3″
Performance ranges vary by model and impeller configuration. Always refer to the specific Taco 2400 pump curve when selecting a circulator
Taco 2400 Models Available and Curves
A brief list of the models and specific performance available:
- Taco 2400-10-3P: Flow: 4 – 18 GPM; Head: 10 – 25 ft
- Taco 2400-20-3P: Flow: 6 – 43 GPM; Head: 7.5 – 34 ft
- Taco 2400-30-3P: Flow: 7 – 56 GPM; Head: 9.5 – 29 ft
- Taco 2400-40-3P: Flow: 5 – 53 GPM; Head: 6.5 – 22 ft
- Taco 2400-45-3P: Flow: 6 – 56 GPM; Head: 17 – 43 ft
- Taco 2400-50-3P: Flow: 7 – 54 GPM; Head: 19 – 61 ft
- Taco 2400-60-3P: Flow: 9 – 68 GPM; Head: 6 – 14 ft
- Taco 2400-65-3P: Flow: 14 – 122 GPM; Head: 5 – 17 ft
- Taco 2400-70-3P: Flow: 15 – 150 GPM; Head: 11 – 22 ft
Materials of Construction
Standard materials of construction arrangements:
- Casing: Cast Iron or Stainless Steel
- Seal Face Plate: Stainless Steel
- Motor Housing: Aluminum
- Impeller: 30% Glass-filled Noryl®
- Impeller Insert: Stainless Steel
- Shaft: Stainless Steel
- Mechanical Seal: Carbon/Silicon-Carbide
- Motor Bearing: Permanently lubricated ball bearing
- O-Ring/Flange Gaskets: EPDM
Construction Features
Standard pump construction features:
- Compact, space-saving design
- Powerful, close-coupled, maintenance-free motor
- Superior efficiency, high starting torque
- Permanently lubricated, sealed for life bearings
- Rugged 1/2" Stainless Steel Shaft
- Carbon/Silicon-Carbide mechanical seal for long life
- Universal flange to flange dimensions - Ideal for retrofits
- Anti-Condensate design for chilled water
- Dual electrical knock-outs
- Dual pressure taps, suction/discharge
At Liberty Supply, we work daily with engineers and contractors supplying Taco pumps and Taco replacement parts.
Recommended Mounting Position
The Taco 2400 range offers several mounting options based on the flow and return positions to ensure proper operation and avoid circulation problems in the water system. Below is a picture showing how Taco recommends the pump installation:
Common Commercial Applications Using the Taco 2400
As briefly mentioned, the Taco 2400 Series High Capacity Circulators are designed for quiet, efficient, maintenance-free operation in a wide range of larger and commercial hydronic systems. Typical applications include:
- Domestic Water Recirculation Systems
- Chilled Water Cooling
- High-Pressure Drop Boilers
- In-Floor Radiant
- Hydronic heating
- Snow Melt
- Hydro Air Fan Coils
- Geothermal Heat Pumps
- Outdoor Wood Boilers
- Primary/Secondary Loops
Understanding Commercial Hydronic Loops and the Role of the Taco 2400
Commercial hydronic loops are piping systems that circulate heated or chilled water to deliver, distribute, and expunge thermal energy throughout a building. These systems are commonly used for space heating, cooling, radiant applications, and process temperature control in commercial environments. The water system's performance depends heavily on the circulator pump's efficiency and the other critical components in the loop.
Compared to residential systems that are smaller and less demanding, commercial hydronic systems are more complex and place greater demands on circulation equipment. Understanding their characteristics is essential to understanding how pumps can improve their operations.
Key Features of Commercial Hydronic Loops
Commercial hydronic loops typically share some characteristics, with minor tweaks depending on the application, but their critical points are generally the same.
Medium to long piping runs
Extended pipe lengths increase friction loss and total system head, requiring pumps with greater pressure capability.
Multiple zones and branches
Commercial systems often serve multiple areas or functions, each with its own control valves, coils, or terminal units.
Higher flow rate requirements
To meet heating or cooling loads, commercial loops usually require significantly higher GPM than residential systems.
Operating schedule
Many commercial buildings operate for long hours or year-round (e.g., data centers or healthcare facilities), requiring pumps designed for sustained duty cycles.
Diverse system components
Heat exchangers, air handlers, fan coils, mixing valves, and strainers all add resistance to the loop, making water circulation less stable. The following video exposes some of the most important components of a hydronic system.
Primary and secondary loop configurations
Many commercial systems use primary–secondary piping arrangements, requiring stable flow in both circuits.
These factors together show the importance of selecting a circulator capable of maintaining performance under varying load conditions and how it can be improved depending on the chosen pump.
Pump Selection Considerations
Improper pump selection can cause several operational problems in commercial hydronic loops, such as uneven heating or cooling, excessive energy consumption, noise, and premature equipment wear. Selecting the right circulator requires careful evaluation of system conditions, pump models and features, and value engineering. Below is a list of key considerations to ensure efficient operation:
- Flow rate (GPM) based on the system’s heating or cooling load
- Total dynamic head (TDH) created by piping, fittings, valves, and equipment
- Operating schedule (sometimes redundancy) and expected run time
- Electrical requirements, including voltage and phase limits
- System expandability for future modifications
The circulator must operate efficiently within these parameters without oversizing or undersizing.
Why the Taco 2400 Is Well-Suited for Commercial Hydronic Loops
As mentioned below, commercial hydronic loops place specific demands that go beyond basic residential requirements due to their characteristics and complexity. We also highlighted some of the main features of the Taco 2400 Circulator pumps, which closely match the needs of commercial loops. Below are some highlights explaining why the Taco 2400 is a good choice for commercial hydronic loops:
Designed for higher flow requirements
Middle to high flow rates, which are commonly required in commercial heating and cooling systems, the circulators deliver a good operational range.
Broad range of performance options
With multiple models available, as shown in the article, the Taco 2400 series enables designers to more precisely match flow and head requirements, improving overall system efficiency.
Capable of overcoming the commercial system head
As discussed earlier, commercial hydronic loops introduce resistance from piping length, fittings, valves, and equipment. Taco 2400 models provide the head performance needed to maintain circulation across these systems.
Reliable for continuous and extended operation
Some specific commercial systems operate for long hours, sometimes 24h a day. The Taco 2400 pump is designed to handle these operational cycles.
Compatible with commercial electrical standards
The three-phase options and multiple electrical configurations available make the Taco 2400 suitable for integration into standard commercial electrical systems.
Together, these characteristics make the Taco 2400 series a practical and reliable circulator choice for commercial hydronic loops with varying flow, head, and operating demands.
Further information can be found on the Taco oficial website: Taco 2400 Pumps.
Frequently Asked Questions
Determine required flow (GPM) and total dynamic head (TDH), then match them to the Taco 2400 pump curve and electrical requirements.
Yes, the Taco 2400 series is commonly used in commercial hydronic heating and chilled-water circulation systems.
Yes, Taco 2400 pumps are frequently used in both primary and secondary loops due to their stable flow and head performance.
Yes, the Taco 2400 series is frequently selected as a replacement or cross-reference for older commercial circulators.
Generally, no, unless the project is large enough to accommodate the minimum water flow and head of the smaller models of the range.
Taco Pumps and Parts Available in Liberty Supply

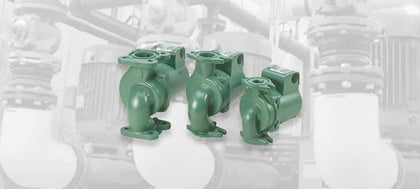

Check the Taco Pump Ranges Available
