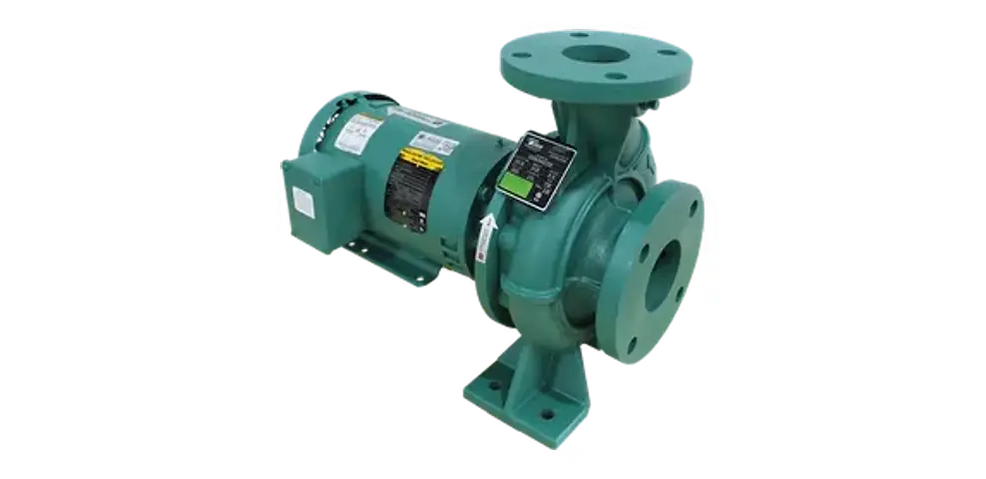

Taco CI Series Close-Coupled End Suction Pumps

Reliable Close-Coupled Pump with Simple Installation and Service

Taco CI Series close-coupled end suction pumps are designed for dependable performance, easy installation, and efficient service in a wide range of hydronic and water system applications. Their close-coupled design provides a compact solution for heating, air conditioning, pressure boosting, cooling water transfer, and water supply systems.

Built to reduce maintenance time and cost, the CI Series includes an easy-to-replace slip-on shaft sleeve that simplifies seal service in the field. Taco’s dry shaft design helps protect the pump shaft by preventing contact with the circulating fluid, reducing the need for expensive corrosion-resistant shaft materials in many applications.

The CI Series also includes flush seal line taps, allowing a filter to be installed to help protect the seal from particles commonly found in open systems. Standard pressure tappings on the suction and discharge connections make system monitoring and service more convenient.

With a rear pullout design, the pump can be serviced without disturbing system piping. A top centerline discharge design helps simplify piping layouts, reduce piping strain, and support self-venting operation.

Product Features

• Close-coupled end suction pump design

• Compact construction for easier installation

• Designed for reliable operation in hydronic and water system applications

• Easy-to-replace slip-on shaft sleeve simplifies field seal maintenance

• Dry shaft design protects the shaft from system fluid

• Helps reduce the need for corrosion-resistant shaft materials

• Flush seal line taps allow filter installation to help protect the seal

• Standard pressure tappings on suction and discharge connections

• Rear pullout design allows service without disturbing system piping

• Top centerline discharge simplifies piping layouts

• Helps reduce piping strain

• Self-venting pump design
• eLink® connectivity available on select Taco products for support, monitoring, and controls

Performance Data

• Maximum fluid temperature: 250°F / 120°C

• Maximum working pressure: 175 PSIG / 1210 kPa

• Optional maximum working pressure: 300 PSIG / 2070 kPa

• Flow range: 20 to 2,650 GPM

• Head range: 5 to 380 feet

• Horsepower range: 1/2 to 60 HP

• Pump sizes: 1.5" to 6"

Common Applications

• Pressure boosting

• Hot water heating systems

• Closed cooling circuits

• Air conditioning systems

• Hydronic heating and cooling

• Cooling water transfer

• Water supply

• Water/glycol systems with concentrations up to 50%

• Solar systems

• Geothermal systems
