Taco Comfort Solutions offers a wide range of heat transfer products. Taco has designed and fabricated just the right heat transfer product for a wide range of commercial applications from shell and tube heat exchangers to compact PF Series brazed plate heat exchangers.
Shell & Tube Exchangers
Shell and tube heat exchangers consist of a shell (or a large pressure vessel) with a bundle of tubes inside. This allows one fluid to run through the tubes, and another to flow over the tubes (through the shell), thus transferring heat between the two fluids. Taco offers several different series of shell and tube exchangers:
Leak Guard Series Double Wall Liquid-to-Liquid Heat Exchangers
- Available in 2- or 4-pass construction
- 3/4" double-wall copper tubing as standard
- Connection sizes: 1-14"
- Diameters: 4-30"
- Maximum Length: 10' standard
- Working Pressure: 150 psi standard (optional higher pressures)
- Maximum Operating Temperature: 375°F (optional higher temperatures)
Leak Guard Series Double Wall Steam-to-Liquid Heat Exchangers
- Available in 2- or 4-pass construction
- 3/4" double-wall copper tubing as standard
- Connection sizes: 1-14"
- Diameters: 4-30"
- Maximum Length: 10' standard
- Working Pressure: 150 psi standard (optional higher pressures)
- Maximum Operating Temperature: 375°F (optional higher temperatures)
U-Tube Liquid-to-Liquid Heat Exchangers
- Available in 2- or 4-pass construction
- Connection sizes: 1-14"
- Diameters: 4-30"
- Maximum Length: 10' standard
- Working Pressure: 150 psi standard (optional higher pressures)
- Maximum Operating Temperature: 375°F (optional higher temperatures)
U-Tube Steam-to-Liquid Heat Exchangers
- Available in 2- or 4-pass construction
- Connection sizes: 1-14"
- Diameters: 4-30"
- Maximum Length: 10' standard
- Working Pressure: 150 psi standard (optional higher pressures)
- Maximum Operating Temperature: 375°F (optional higher temperatures)
High-Temperature/High-Pressure Liquid-to-Liquid Heat Exchangers
- Available in 2- or 4-pass construction
- A high degree of flexibility in materials to meet varying application requirements
- Connection sizes: 1-14"
- Diameters: 4-30"
- Maximum Length: 10' standard
- Working Pressure: 400 psi standard tube side, 150 psi shell side (optional higher pressures)
- Maximum Operating Temperature: 450°F (optional higher temperatures)
Tank Heating Units
- Available in 2- or 4-pass construction
- Available in single or double-wall configuration
- Connection sizes: 1-6"
- Diameters: 4-20"
- Maximum Length: 10' standard
- Working Pressure: 150 psi standard (optional higher pressures)
- Maximum Operating Temperature: 375°F (optional higher temperatures)
Plate Heat Exchangers
Plate Heat Exchangers consist of a series of parallel plates that are placed one above the other to allow the formation of a series of channels for fluids to flow between them. If the plates are brazed, they have been through a furnace at high temperatures to offer a high level of thermal efficiency. They are compact, highly efficient, and durable. These heat exchangers can be up to 80-90% smaller than conventional shell and tube heat exchangers. The brazed plate construction offers a rugged, efficient, long-lasting heat exchanger that withstands demanding environments.

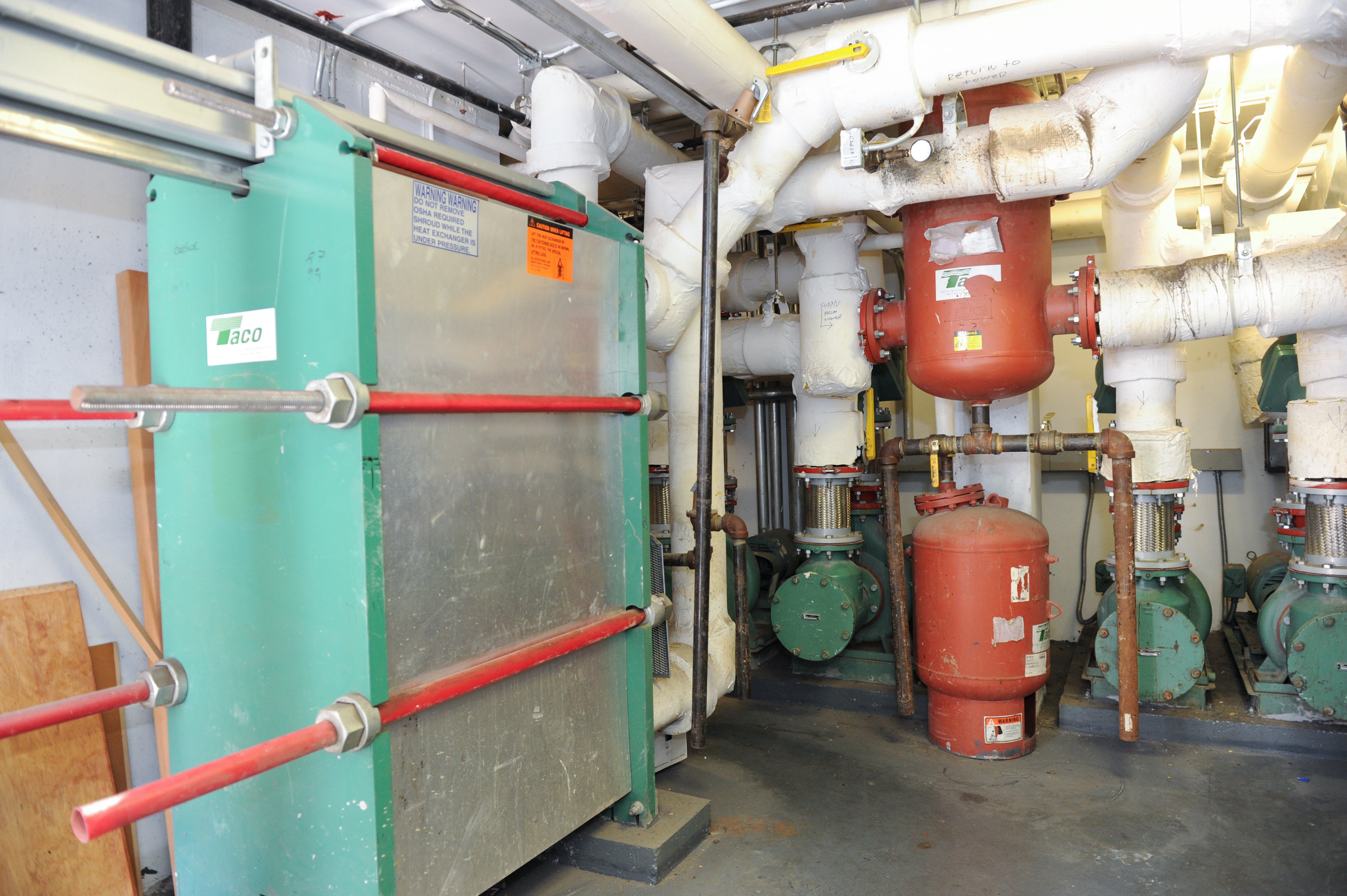

PF Series Plate & Frame Heat Exchangers
- .5mm plate thickness on standard designs for increased durability
- Ability to design for future expansion
- Movable pressure plate allows for cleaning without removing system piping
- Available in single or double-wall configuration
- Insulated shroud and drip tray available as an option
- GPM: 50-7,000 in a single unit
- Connection sizes: 1-12"
- Sizes: 6" x 18" to 4" x 120"
- Working Pressure: 150 psi or 300 psi standard
- Maximum Operating Temperature: 230°F (optional higher temperatures)
TB Series Brazed Heat Exchangers
- Compact size
- High turbulence aids in self-cleaning
- Extremely efficient with approx. 95% of material used to transfer heat
- Available with ASME U or UM Stamp
- Single Wall and Double wall
- Insulation packages available
- Available with mounting brackets
- Corrugated Channel Plates
- Brazed Joint Contact Points
- No Gaskets or Frame Parts
- GPM: 1-400 in a single unit
- Connection sizes: 3/4-4" (NPT up to 2-1/2")
- Sizes: 3" x 8" to 14-1/2" x 34"
Computerized product selection tools from Taco can help select the heat exchanger for your application requirements. Click here to access them.
