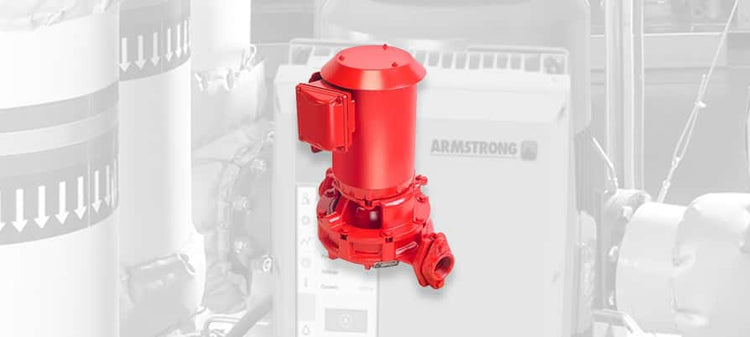

Armstrong 4360 Series Vertical In-Line Pumps

Armstrong 4360 pipe-mounted pumps are designed for space-saving installation and long service life. They are ideal for HVAC-system pumping as well as light industrial/process pumping (water or glycol-based) applications.

Armstrong 4360 Vertical In-Line Pumps

The 4360's vertical in-line design eliminates the need for inertia bases, housekeeping pads, flex connectors, and field alignment or grouting requirements and minimizes space and pipe requirements.

Armstrong 4360 Vertical In-Line Pump

Armstrong 4360 Pump Features:

  • Cast iron or ductile iron casing
  • Silicon sintered carbide mechanical seal
  • Inside single-spring mechanical seal
  • Up to 350 US GPM (22 L/s) flow; up to 200 ft (61 m) head
  • Maximum temperature of 225°F (107°C)
  • Power range of 0.33 HP to 15 HP (0.25 kW to 11 kW)
  • 1.25" to 3" (32 mm to 80 mm)

Other Armstrong Vertical In-Line Pumps

Armstrong 4300 pumps are available in either Design Envelope or conventional models, in horsepowers ranging from 1/3 HP to 10 HP (Design Envelope) or 1 HP to 1250 HP (conventional), and in sizes 1" to 20" (Design Envelope) or 1-1/2" to 20" (conventional).

Armstrong 4380 pumps are available in either Design Envelope or conventional models, in horsepowers ranging from 1/4 HP to 10 HP (Design Envelope) or 1/3 HP to 60 HP (conventional), and in sizes 1" to 6" (Design Envelope) or 1-1/2" to 8" (conventional).

    Armstrong 4360 Pump Curves

    A pump performance curve indicates how a pump will perform against specific pressure head and flow rates. A curve is defined for a specific operating speed (RPM) and inlet/outlet diameter.

    Armstrong 4360 60Hz Composite Curves

    Armstrong 4360 Pump Submittals

    Armstrong Series 4360 Vertical In-Line Pumps Brochure

    Visit Armstrong Fluid Technology's 4360 Vertical In-Line Pumps page to view the complete list of submittals, manuals, service work instructions, charts, and more.

    Armstrong 4360 Pump Motors

    Armstrong 4360 pumps are equipped with high-efficiency NEMA-premium motors for significant energy consumption and cost reduction. All motors are suitable for inverter-fed service.

    Armstrong 4360 Pump Seal Kits and Other Parts

    Armstrong offers pump seal kits individually or as part of a complete repair kit to support the installation and maintenance of 4360 Vertical In-Line pumps.

    Armstrong 4360 Mechanical Seal Kit

    Shop Armstrong Pump Parts



    Quote Request

    Please call 844-448-0880 for Armstrong 4360 Series Vertical In-Line Pumps pricing and availability, or complete the quote request form below.
