Twin In-Line Pumping for Added Capacity, Redundancy, and Efficiency

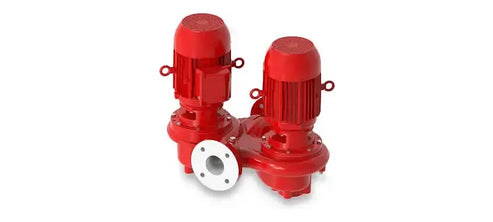

Bell & Gossett Series e-82 and e-82SC twin vertical in-line centrifugal pumps are designed for systems that require parallel staging, standby capacity, or increased flow in a compact footprint. These pumps provide a practical solution for applications where added capacity and built-in redundancy are needed without the space requirements of a traditional parallel pump installation.
The Series e-82 close-coupled and Series e-82SC split-coupled pumps are stainless steel fitted and engineered to match the hydraulics and flange-to-flange dimensions of current pump models. This makes them a strong option for retrofit projects, including drop-in replacement for Series 80 and Series e-80 pumps when additional capacity or standby operation is required.
By using parallel pumping, the Series e-82 helps meet changing system demand with smaller horsepower motors and drives. As system load decreases, pumps can be de-staged to improve motor and drive efficiency while maintaining reliable system performance. When paired with optional ITSC or IT variable speed drives, the e-82 can provide additional energy savings at part-load conditions.
The Series e-82 also supports easy installation, service, and maintenance. The back pull-out design allows the pump to be serviced without disturbing the piping, helping reduce downtime. On e-82SC models, the patented shaft-jacking coupling design can help reduce labor costs and pump downtime, depending on mechanical room layout and lifting equipment availability.
A reliable flapper valve allows the pumps to operate independently or together in parallel. In duty/standby operation, the valve provides positive shutoff to one side of the pump. In parallel operation, system pressure positions the valve so both sides operate together for optimized hydraulic performance.
Product Features
- Twin vertical in-line centrifugal pump design
- Ideal for parallel staging or backup capacity
- Available in close-coupled Series e-82 and split-coupled Series e-82SC models
- Expanded line includes close-coupled and split-coupled options
- Stainless steel fitted construction for durability
- Matches the hydraulics and flange-to-flange dimensions of current pumps
- Provides double the power in a compact footprint
- Drop-in replacement option for Series 80 and Series e-80 pumps
- Built-in redundancy for duty/standby or parallel operation
- Approximately 40% space savings and piping reduction compared to traditional parallel installations
- Back pull-out design allows service without disturbing piping
- Bottom of volute is tapped with four bolt holes to accept an ANSI/ASME flange for added support
- e-82SC models feature patented shaft-jacking coupling to help reduce labor cost and downtime
- Reliable EPDM flapper valve enclosed in a stainless steel body
- Flapper valve provides positive shutoff in duty/standby operation
- Valve positioning supports optimized hydraulic performance during parallel operation
- Blanking plate included to isolate the standby head during maintenance
- Self-sealing bolts help support leak-free operation
- Flush-line filters and sediment separators available by special request
- Optional ITSC or IT variable speed drives help improve energy savings at part load
- Capable of parallel sensorless operation with the PPS Parallel Pump Controller
Common Applications
- Hydronic heating systems
- Hydronic cooling systems
- Light industrial process applications
- General service
- Pressure boosting
- OEM applications
