The Bell & Gossett e-90 inline pump is a high-efficiency circulator widely used in water systems applications. In this guide, we cover e-90 pump specifications, curves, applications, and replac...
Save 29%
Bell & Gossett

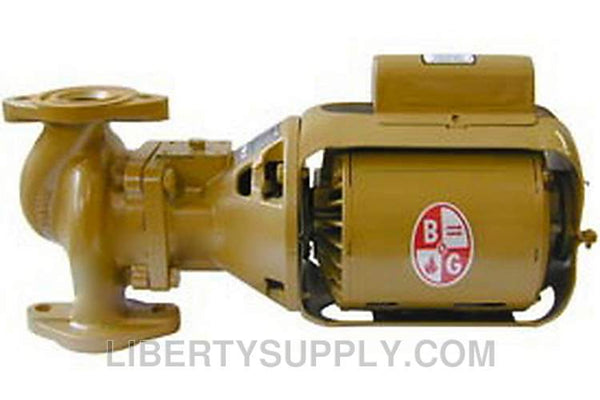

Bell & Gossett Series HD3, 1/3 HP, 1725 RPM, 115/230v Pump 102228LFIn stock (3 units)
Sale price$5,489.95
Regular price$7,776.00
In stock (3 units)
Save 29%
Bell & Gossett

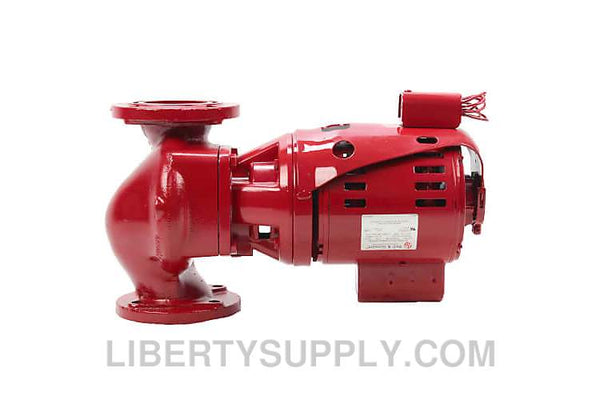

Bell & Gossett Series HD3, 1/3 HP, 1725 RPM, 115/230v Pump 102226In stock (5 units)
Sale price$3,027.95
Regular price$4,289.00
In stock (5 units)
Dependable Booster Pump Performance for Higher Flow and Head Requirements
Bell & Gossett three-piece booster pumps are designed for applications that require higher flow rates and increased head pressure. Built for dependable performance, these pumps are well suited for hydronic heating and cooling systems, domestic water, industrial use, and general service applications.
The three-piece design provides a compact footprint while allowing complete field repairability. This makes service and maintenance easier, helping reduce downtime and extend the life of the pump. Each Bell & Gossett booster pump is equipped with a Bell & Gossett manufactured motor, designed for quiet, efficient, and reliable operation.
Available with iron or bronze body construction, these booster pumps can be matched to the needs of the system and the liquid being pumped. Bronze body construction is recommended for potable water applications.
Product Features
- Designed for applications requiring higher flow and head pressure
- Maximum capacities from 100 GPM to 150 GPM
- Available in iron or bronze body construction
- Three-piece configuration allows complete field repairability
- Compact construction for easier installation
- Bell & Gossett manufactured motor supports quiet and efficient operation
- Designed for liquids compatible with iron or bronze pump construction
- Bronze body pumps are recommended for potable water applications
- Motors with special electrical characteristics are available upon request
Operational Limits
- Maximum working pressure: 125 PSI
- Maximum operating temperature: 225°F
- Electrical ratings:
- 115/230V, 60 Hz, single phase
- 208-230/460V, 60 Hz, three phase
- 115V or 230V, 60 Hz, single phase for 1/4 HP models
Common Applications
- Hydronic heating systems
- Hydronic cooling systems
- Domestic water systems
- Industrial applications
- General service operations
