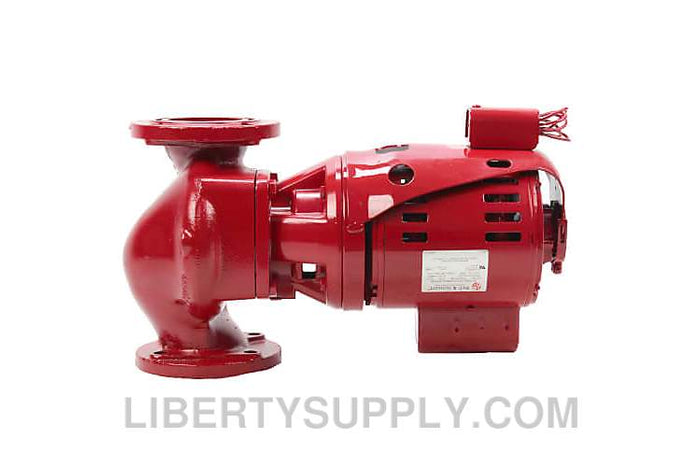

Bell & Gossett Series HD3, 1/3 HP, 1725 RPM, 115/230v Pump 102226

SKU: BGC01-0120 Part Number: 102226 Model: HD3

Price:
Sale price$2,635.95 Regular price$4,118.00

Save 36% Call 844-448-0880 for large volume pricing

Stock:
In stock (4 units), ready to be shipped
 More payment options

Description

Series HD3 three-piece cast iron booster pumps are used for hydronic heating and cooling in closed loop systems. HD3 pumps are oil-lubricated with a 1/3 HP, 1725 RPM, 115/230v, single phase motor. Series HD3 pumps are reliable, in-line booster pumps intended to pump potable, domestic water from hot water heater tanks to areas such as bathrooms and kitchens or non-potable water through closed loop systems for heating and cooling, as well as, increased flow and head pressure applications. They feature a three-piece design, which includes a motor, bearing assembly, and volute. Since the bearings, shaft and seal are all housed within the bearing assembly, Series HD3 pumps are easily serviceable in the field. Resilient motor mounting combined with spring-loaded couplers means the pump runs quietly. A tube of oil, flange gaskets, flanges, and mounting hardware are included.

Specifications

Manufacturer Bell & Gossett
Part Number 102226
Model HD3
Series Series HD3
Application Heating & Cooling
Pump Type Booster
Body Material Cast Iron
Connection Size 3"
Connection Type Flanged
Flanges Included? Yes
Mounting Type In-Line
Motor Included? Yes
Horse Power 1/3 HP
RPM 1725 RPM
Voltage 115/230v
Phase Single
Hertz 60Hz
Maximum Temperature 225°F

About Bell & Gossett

Bell & Gossett, a Xylem brand, is a world leader in HVAC, wastewater, and plumbing system solutions for the commercial building services industry. They offer numerous energy-efficient pumps, boosters, drives, valves, heat exchangers, controllers, and water systems for multiple applications, including steam and heat t... Learn more

Estimate shipping

Repair Parts

(8 items)

Save 17%
Bell & Gossett 1/3HP, 115/230v, 1725RPM, 1PH Motor 111042
Save 17%
Bell & Gossett Motor Mounting Ring Set 118228
Save 17%
Bell & Gossett 4-1/4" O.D. Steel Impeller 118675
Save 16%
Bell & Gossett Seal Kit #7 (1/2" ID) 118681LF
Save 16%
Bell & Gossett 1/2" x 1/2" Coupler 118723
Bell & Gossett Bell & Gossett 1/2" x 1/2" Coupler 118723
Sale price$52.95 Regular price$63.00
Save 17%
Bell & Gossett Bearing Assembly 189105LF
Bell & Gossett Bell & Gossett Bearing Assembly 189105LF
Sale price$541.95 Regular price$652.00
Bell & Gossett Volute (Body) Capscrew P03470
Bell & Gossett 4-3/4" OD Body Gasket P05800
