Direct Fired Equipment
DFM & 14E Series
Maxitrol’s DFM temperature control systems are used with Direct Gas-Fired Makeup Modulating Air Heaters. The DFM 14 and DFM 14 E systems control discharge air temperature. The “E” series complies with the applicable specifications of ANSI Z83.18.
DFM44 & 44E Series
Maxitrol’s DFM temperature control systems are used with Direct Gas-Fired Makeup Modulating Air Heaters. The DFM 44 and DFM 44 E systems control space temperature. The “E” series complies with the applicable specifications of ANSI Z83.18.
MP2 & MP2+
The MP2 and MP2+ systems are ideal for multiple time-sensitive and temperature-critical process applications requiring temperatures from 60°F to 240°F.
Series 14
Selectra Series 14 electronic gas flame modulation systems are designed primarily for make-up air heating as components of direct-fired equipment. They may be field installed on existing equipment or specified for new equipment installation.
Series 14+
Selectra Series 14+ electronic gas flame modulation systems are designed primarily for make-up air heating as components for direct-fired equipment. The system is specified for new equipment installation and can be installed on existing equipment in the field.
Series 24
Selectra Series 24 electronic gas flame modulation systems are used in applications such as portable direct-fired construction heaters. Series 24 systems use Modulator or Modulator/Regulator valves.

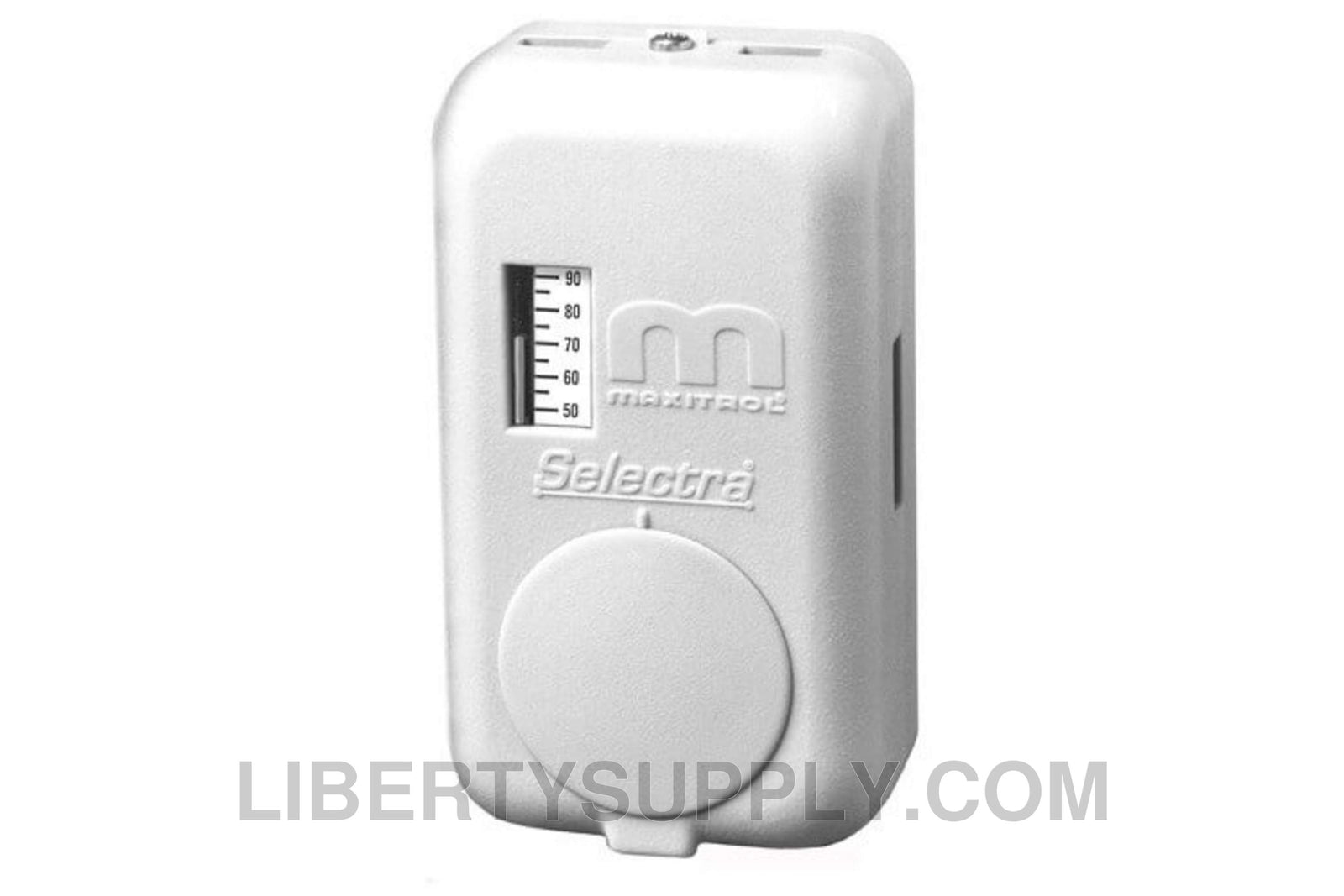

Series 44
Selectra Series 44R electronic gas flame modulation systems are designed primarily for space heating as components of direct-fired equipment. They may be field installed on existing equipment or specified for new equipment installation. All fuel gases are compatible. The Series 44R system uses a Modulator or Modulator/Regulator valves.

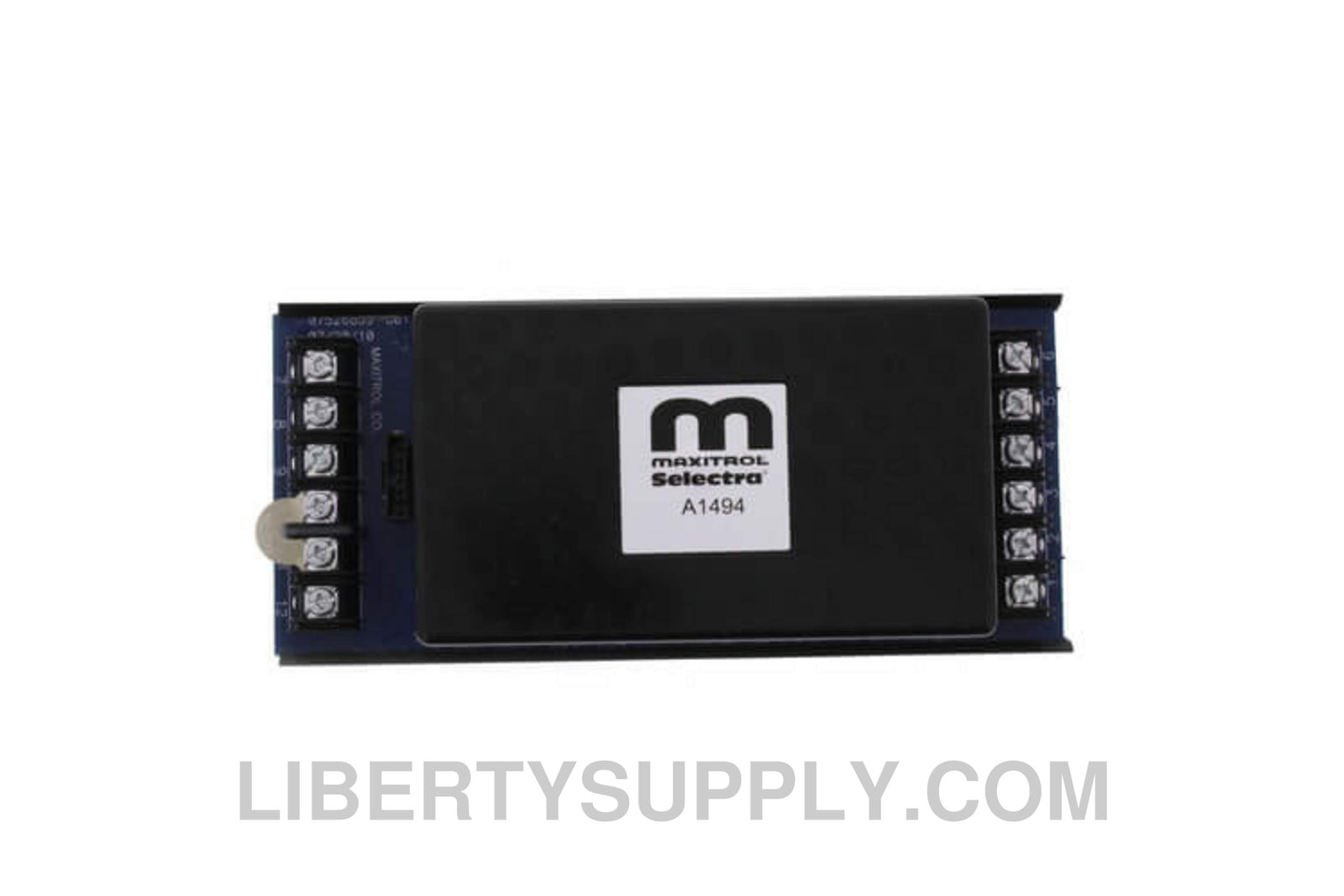

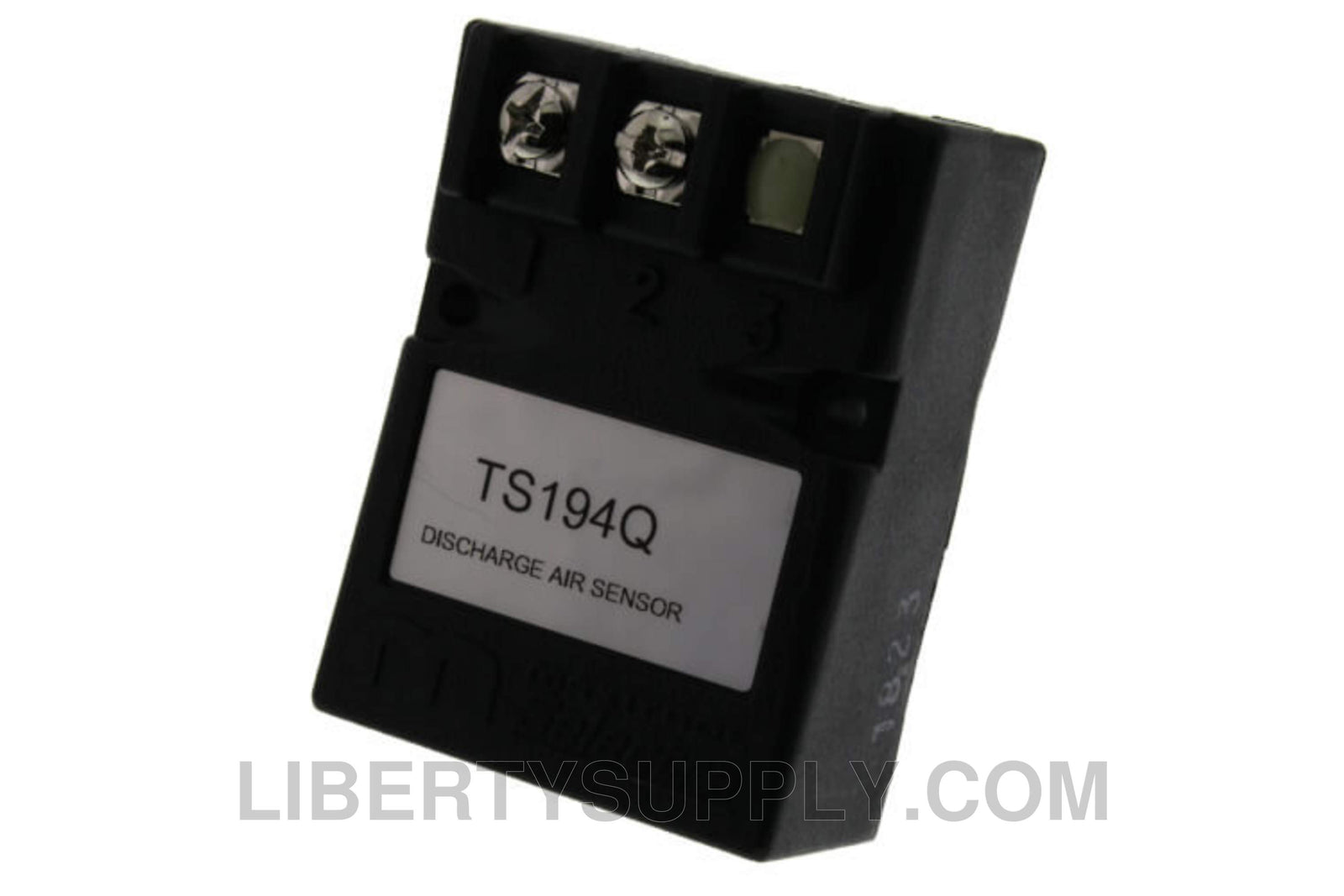

Series 94
Selectra Series 94 electronic gas flame modulation systems are used in environmental or commercial/industrial applications. Systems can be configured for direct or indirect-fired equipment. Series 94 systems use Modulator or Modulator/Regulator valves.
Indirect Fired Equipment
Series 20
Selectra Series 20 electronic gas flame modulation systems are designed primarily for commercial and light industrial space heating as components of indirect-fired units with atmospheric burners. Combining the capability of Series 20 and 30, the current Series 20 is for single or multiple (up to four) furnace operations. It may be field installed on existing equipment or specified for new equipment installation. The Series 20 system uses a Modulator or Modulator/Regulator valves.
Series 21
Selectra Series 21 electronic gas flame modulation systems are designed primarily for make-up air heating as components of indirect-fired units with atmospheric burners. Combining the capability of Series 21 and 31, the current Series 21 is for single or multiple (up to four) furnace operations. It may be field installed on existing equipment or specified for new equipment installation. The Series 21 systems use Modulator or Modulator/Regulator valves.
Series 92
Selectra Series 92 electronic gas flame modulation systems use higher single-stage turndown for indirect-fired applications. Series 92 systems use Modulator or Modulator/Regulator valves.
Series 94
Selectra Series 94 electronic gas flame modulation systems are used in environmental or commercial/industrial applications. Systems can be configured for direct or indirect-fired equipment. Series 94 systems use Modulator or Modulator/Regulator valves.
Signal Conditioners
Maxitrol’s track-mounted signal conditioners and M/MR valves can be configured for direct or indirect-fired gas applications. They may be field installed on existing equipment or specified for new equipment.

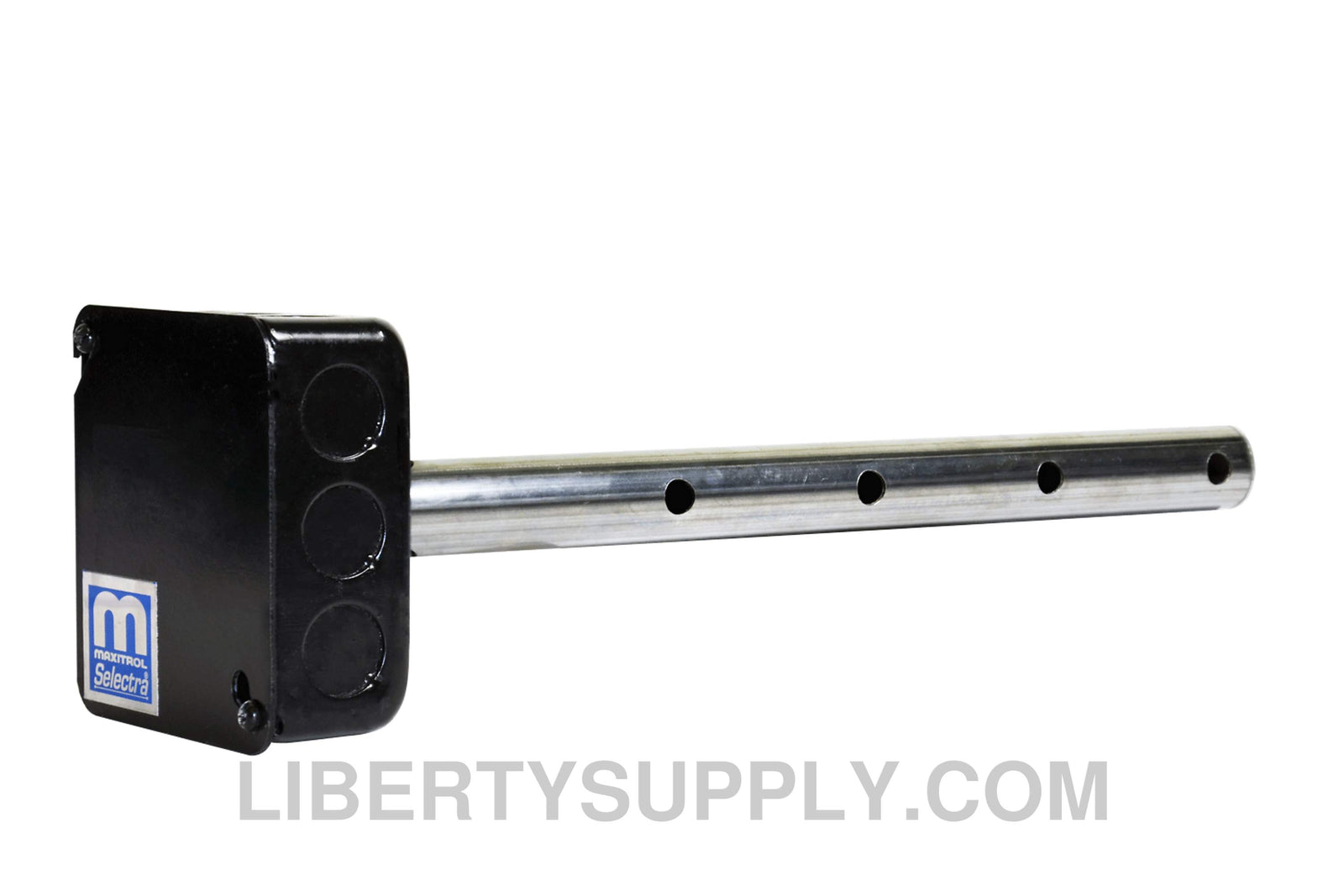

Mixing Tubes
Mixing tubes are used with most duct sensor applications and inlet air sensors.
Paktronics Series
Beta Series
Beta Series of open-architecture electronic temperature controls are a low-cost alternative to mechanical or pneumatic thermostats or expensive panel-mounted temperature controllers.
When coupled with a model LCD3000 digital display, Beta Series electronic temperature controllers provide the convenience of digital indication of actual process temperature. The LCD3000 is a 3-1/2 digit LCD with a resolution of 1°. With its flexible wire sensor, Beta Series controllers eliminate the problems of capillary tube kinking and breakage. In addition, the quick-connect terminals allow fast installation and service. Use the Beta Series of controllers where it is ideal to have accurate, repeatable temperature control through a narrow dead band.

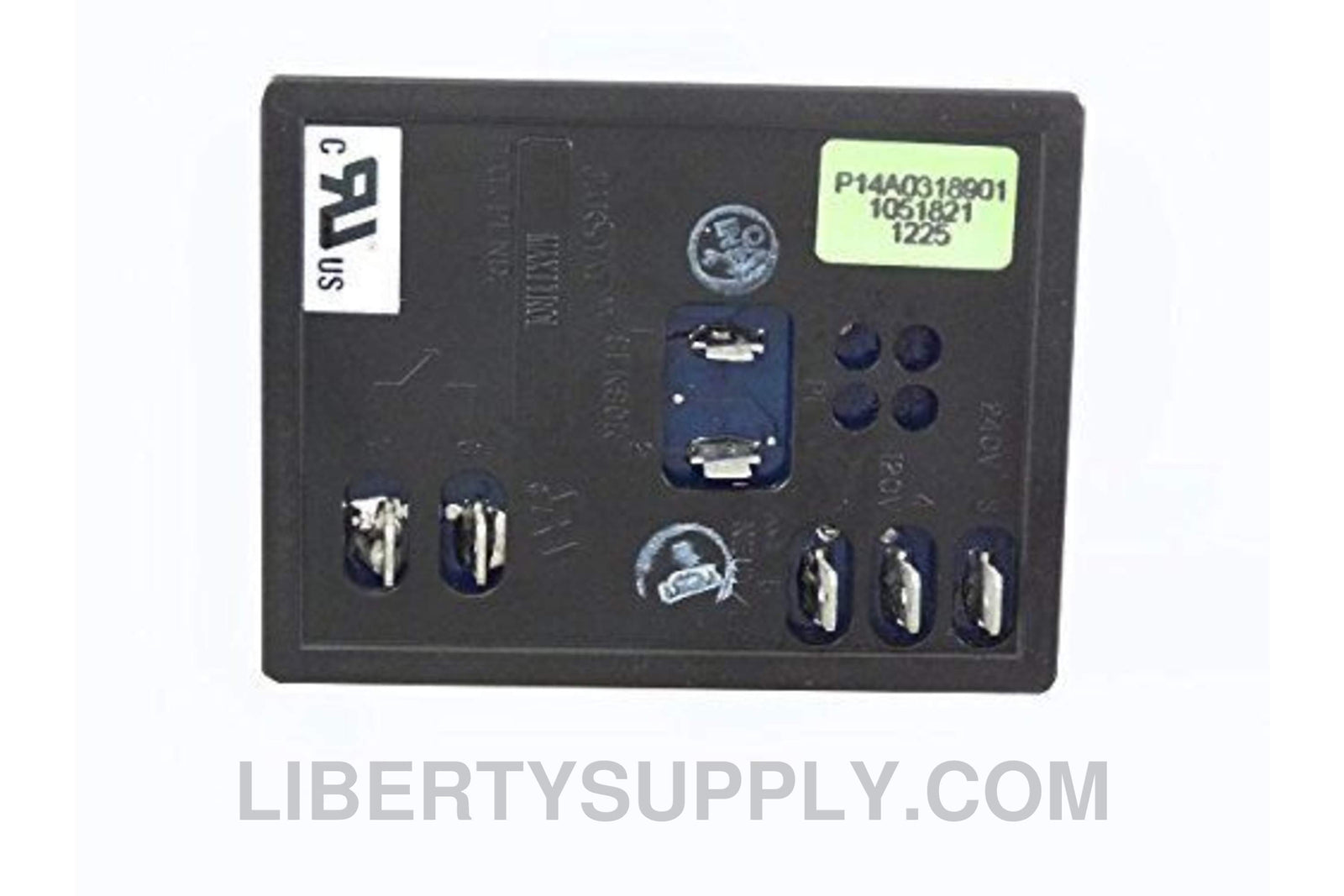

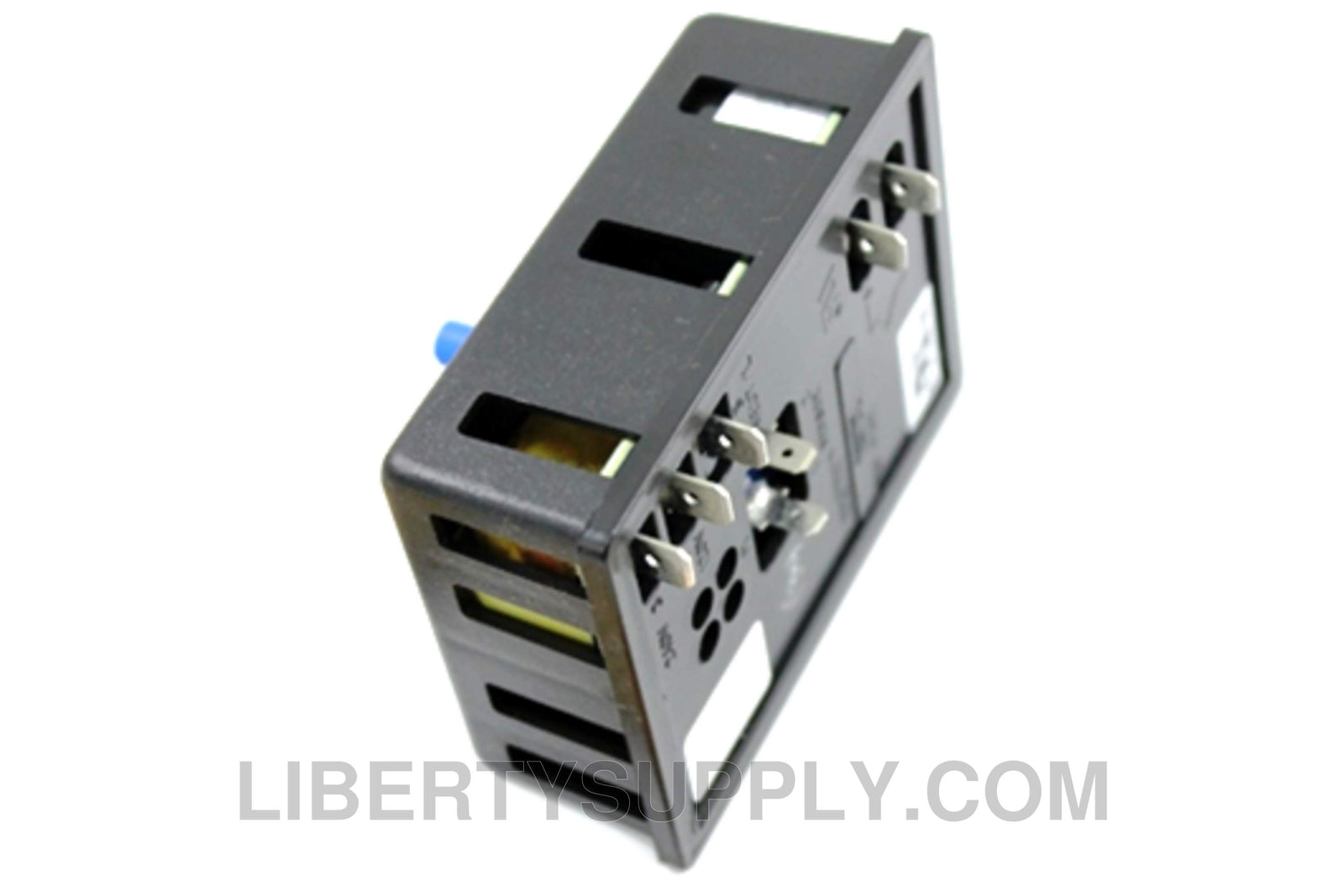

Pakstat Series I
The Pakstat Series I electronic thermostat is a low-cost alternative to mechanical, pneumatic, or DIN-packaged controllers. With its flexible wire sensor, the Pakstat Series I controllers eliminate the problems of capillary tube kinking and breakage. In addition, the quick-connect terminals allow fast installation and service. The Pakstat Series I is used where it is desirable to have accurate, repeatable temperature control through a narrow dead band.

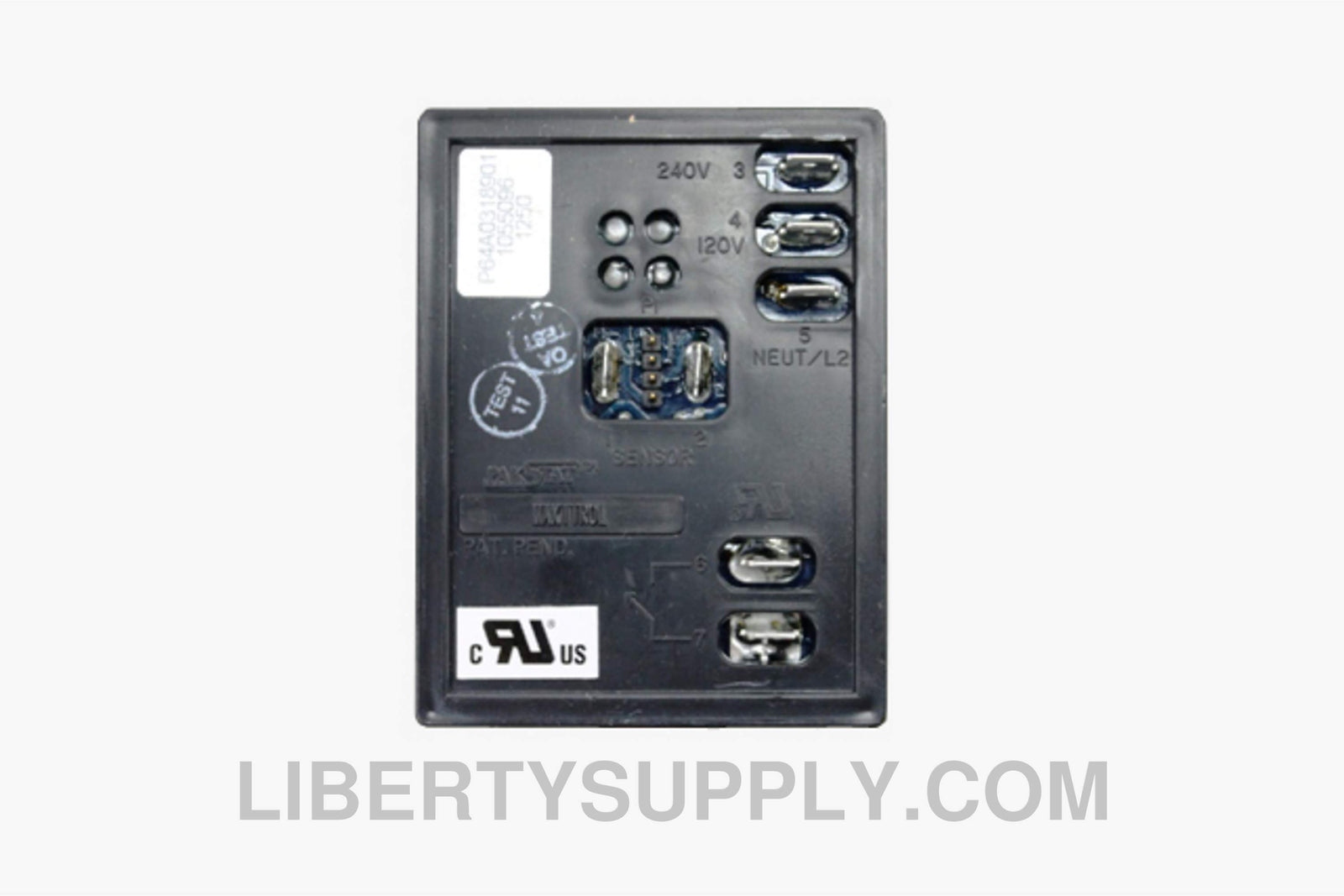

Pakstat Series II
The Pakstat Series II digital electronic thermostat is a low-cost alternative to mechanical or pneumatic controls with separate thermometers or DIN packaged controllers. Coupled with an LCD3000 digital display, it offers the convenience of digital indication of process temperature. The LCD3000 is a 3-1/2 digit display with a resolution of 1°. Its accuracy of 1%, +/- one digit, meets most agency requirements for food storage.

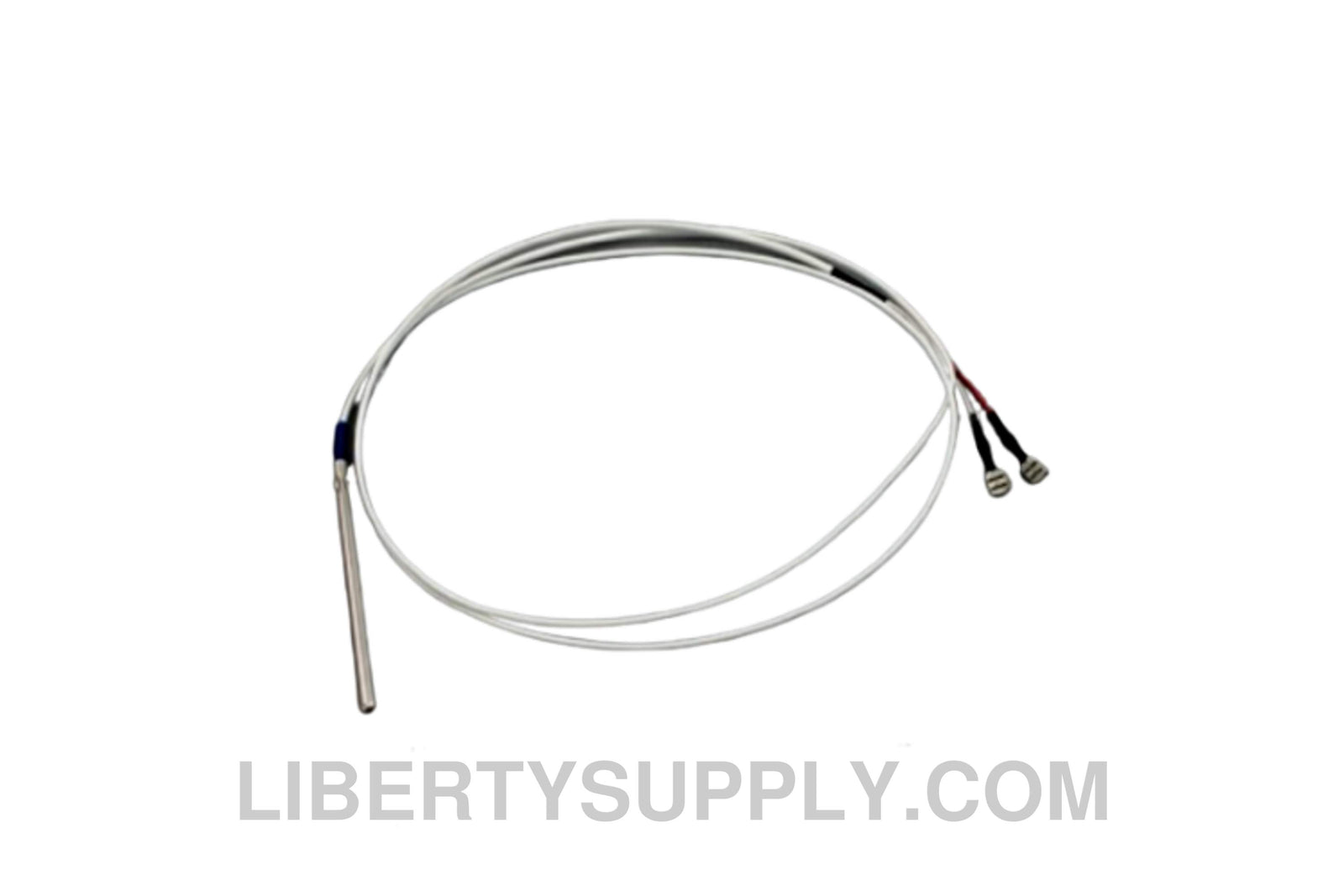

With its flexible wire sensor, Pakstat Series II controllers eliminate the problems of capillary tube kinking and breakage. In addition, the quick-connect terminals allow fast installation and service. Use Pakstat Series II, where it is desirable to have accurate, repeatable temperature control through a narrow dead band (as close as +/- 1°).
Trakstat
Trakstat electronic thermostats are a cost-effective alternative to mechanical or pneumatic controllers. Trakstat’s design flexibility and economical packaging offer a quality electronic thermostat that fits most original equipment manufacturers’ temperature control requirements. Trakstat controls can incorporate either a resistance temperature device (RTD) or a thermistor sensor. Sensors of this type eliminate the problems of capillary tube kinking, and their calibration is not affected by atmospheric pressure changes. Trakstat offers versatile mounting capabilities. Setpoint options include a factory-adjusted fixed setpoint, snap-in control shaft, or remote potentiometer when there is limited panel space. The U.L. and C.S.A. recognized that a 20 AMP output relay would handle most load requirements of the output and can be configured to drive a solid-state relay. The quick-connect terminals allow for fast installation and service.
