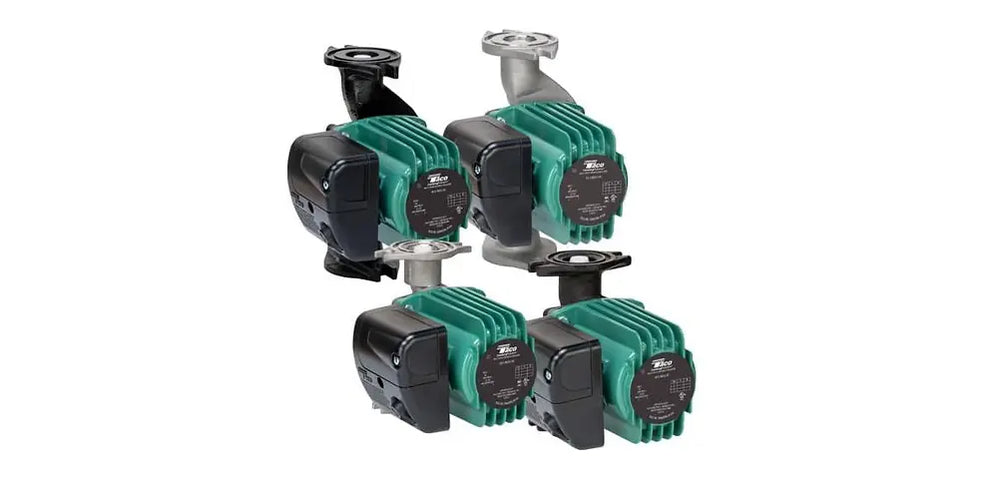

Taco 00 Series 3-Speed Cartridge Circulators

Taco 00 Series 3-Speed Cartridge Circulators for Hydronic Heating, Radiant Systems, Chilled Water, and Hot Water Recirculation

Taco 00 Series 3-Speed Cartridge Circulators are designed to provide flexible, reliable circulation for residential and light commercial hydronic systems. With three selectable speed settings, these circulators allow installers and service technicians to fine-tune pump performance to match the needs of heating, radiant, chilled water, and hot water recirculation applications.

Each Taco 00 Series 3-Speed circulator includes a replaceable cartridge design and an Integral Flow Check, or IFC®, which helps prevent gravity flow, reduce installation cost, and improve system performance. The cartridge contains the moving parts, making service more convenient and helping simplify long-term maintenance.

The 00 Series 3-Speed family includes models designed for a wide range of system requirements. The 0015 3-Speed is built for hydronic heating, radiant, and higher-head systems, with dial-in control for different tubing diameters and loop lengths. The 0010 3-Speed Service Pump is designed as a flexible replacement option for emergency “no heat” service calls and can replace many commonly used residential circulators. The 0012 3-Speed is suited for high-flow, medium-head applications, while the 0013 3-Speed is built for high-head, high-flow residential and light commercial systems.

Stainless steel 00 Series 3-Speed models are NSF 61 and NSF 372 listed, making them suitable for potable water and domestic hot water recirculation applications. Several models also serve as direct replacement options for common Grundfos 3-speed circulators, helping contractors simplify replacement work in the field.

Features

• 3-speed cartridge circulator design
• Designed for hydronic heating, radiant, chilled water, and hot water recirculation systems
• Three selectable speed settings for field performance adjustment
• Replaceable cartridge design for easier service
• Integral Flow Check, or IFC®, helps prevent gravity flow
• IFC design can help reduce installation cost and improve system performance
• Suitable for residential and light commercial applications
• Cast iron models available for closed-loop hydronic systems
• Stainless steel models available for potable water and domestic hot water recirculation
• Stainless steel models are NSF 61 and NSF 372 listed

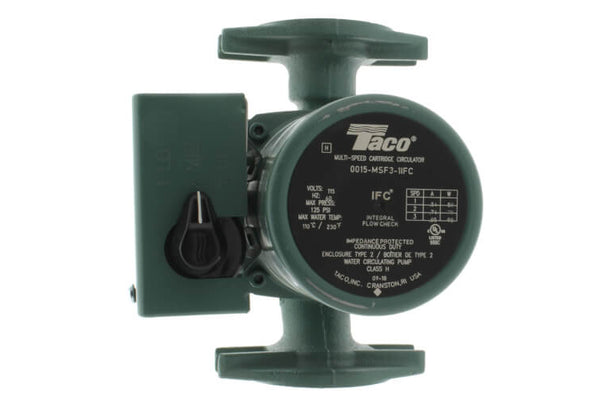

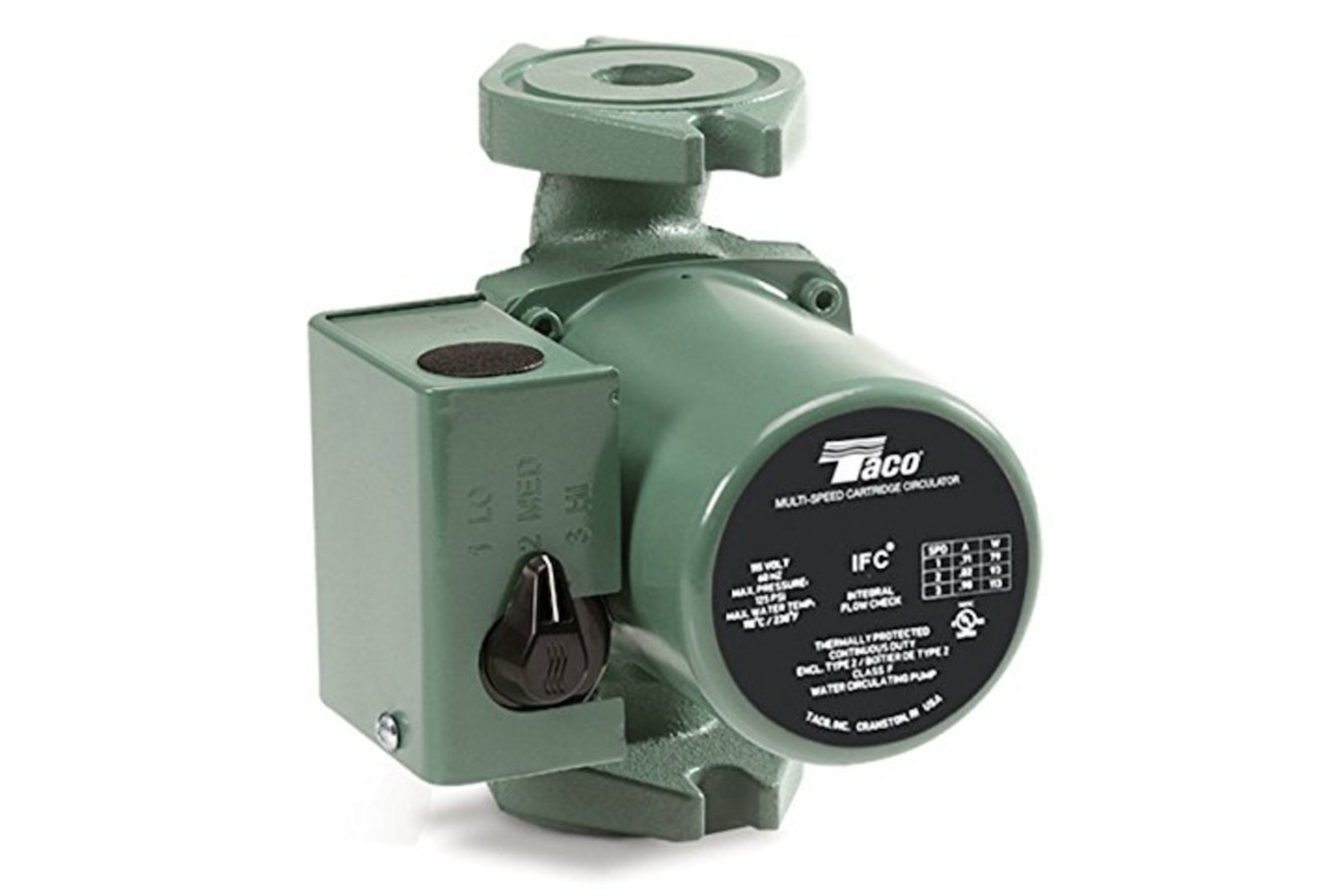

  0015 3-Speed supports radiant and higher-head hydronic applications

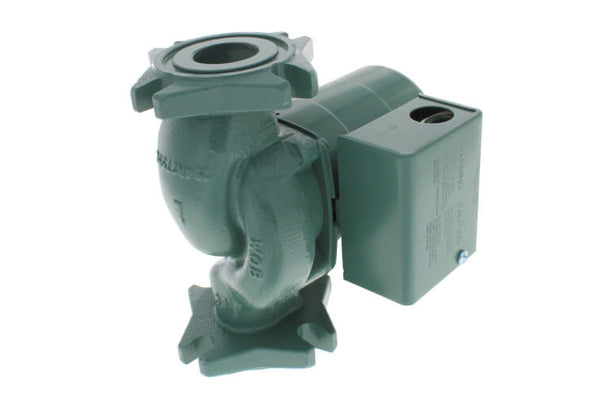

• 0010 3-Speed Service Pump supports emergency replacement applications
• 0012 3-Speed supports high-flow, medium-head applications
• 0013 3-Speed supports high-head, high-flow applications
• Select models provide direct replacement options for common Grundfos 3-speed circulators
• High starting torque available on select models
• Universal flange options available on select models
• Large wiring box and robust switch/knob assembly available on select models

Applications

• Hydronic heating systems
• Radiant heating systems
• Higher-head heating systems
• Chilled water cooling systems
• Domestic hot water recirculation
• Potable water circulation with stainless steel models
• Large residential hydronic systems
• Light commercial hydronic systems
• Primary loops
• High-flow and high-BTU applications
• Emergency circulator replacement
• Service contractor replacement applications
