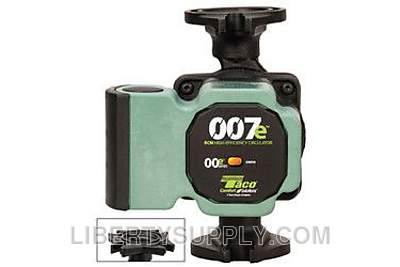

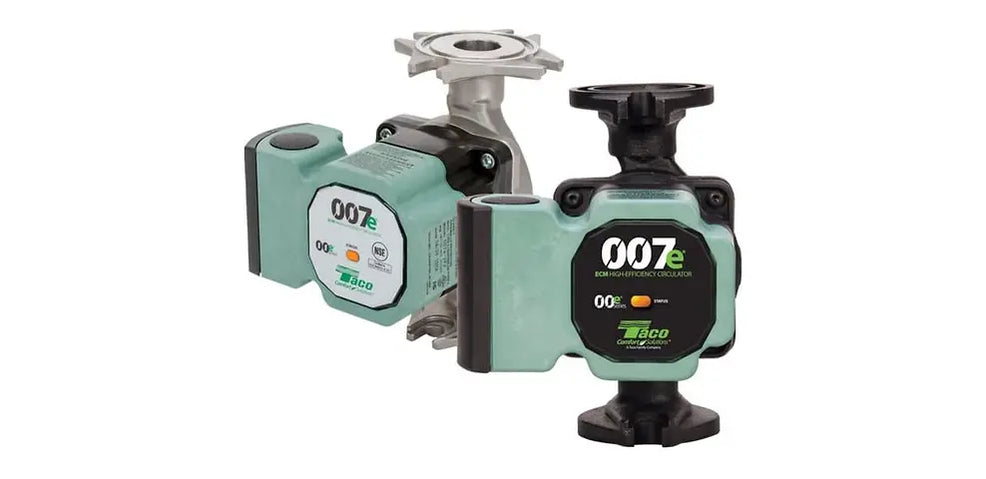

Taco 007e ECM High-Efficiency Circulators

Taco 007e ECM High-Efficiency Circulators for Hydronic Heating, Zone Valve Systems, and Domestic Hot Water Recirculation

Taco 007e ECM High-Efficiency Circulators are designed to deliver the performance of the Taco 007 with the energy-saving benefits of ECM variable speed technology. Built for closed-loop hydronic systems, zone valve systems, circulator-zoned heating layouts, and potable water recirculation applications, the 007e provides dependable circulation while using up to 85% less electricity than a standard circulator.

The 007e combines efficient ECM operation with contractor-friendly installation features. Dual electrical knockouts, 6" stranded wire leads, double-insulated construction, and an included Integral Flow Check, or IFC®, help simplify wiring, reduce installation steps, and prevent unwanted gravity flow in hydronic systems.

Taco’s exclusive SureStart® feature helps reduce service callbacks by automatically purging air and unblocking the pump to support trouble-free operation. Cast iron models also include BIO BARRIER® protection to help protect the circulator from system contaminants in closed-loop applications.

Available in cast iron and stainless steel configurations, Taco 007e circulators can be selected for closed-loop hydronic systems or open-loop potable water and domestic water recirculation applications. With a flow range up to 16 GPM, head up to 10 feet, maximum water temperature of 230°F, and 120V single-phase operation, the 007e is a practical ECM replacement option for many residential and light commercial circulation systems.

Features

• ECM high-efficiency circulator design
• Equivalent performance to the Taco 007 with improved energy efficiency
• Uses up to 85% less electricity than a standard circulator
• Designed for hydronic systems zoned with circulators or zone valves
• Suitable for potable water systems and domestic water recirculation with stainless steel models
• SureStart® automatically purges air and unblocks the pump
• BIO BARRIER® protects cast iron models from system contaminants
• Integral Flow Check, or IFC®, included
• Dual electrical knockouts
• 6" stranded wire leads for easier wiring
• Double-insulated construction with no ground required
• Cast iron casing available for closed-loop systems
• Stainless steel options available for open-loop potable water applications
• Flow range: 0 to 16 GPM
• Head range: 0 to 10 feet
• Maximum operating pressure: 125 PSI for cast iron models
• Maximum operating pressure: 150 PSI for stainless steel models
• Maximum water temperature: 230°F / 110°C
• Minimum water temperature: 36°F / 2°C
• Voltage: 120V, 60 Hz, single phase
• Maximum operating power: 44W
• Maximum amp rating: 0.54
• Connection sizes: 3/4" to 1-1/2"

Applications

• Closed-loop hydronic systems
• Hydronic heating systems
• Zone valve systems
• Circulator-zoned heating systems
• Open-loop potable water systems with stainless steel models
• Domestic water recirculation
• Residential heating systems
• Light commercial circulation systems
• Water or up to 50% water/glycol solution
• Indoor circulation applications
