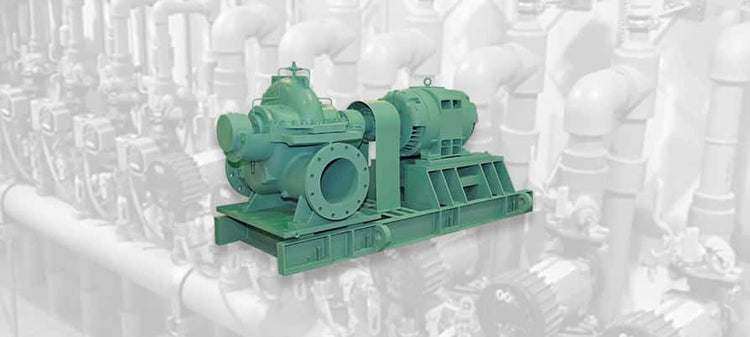

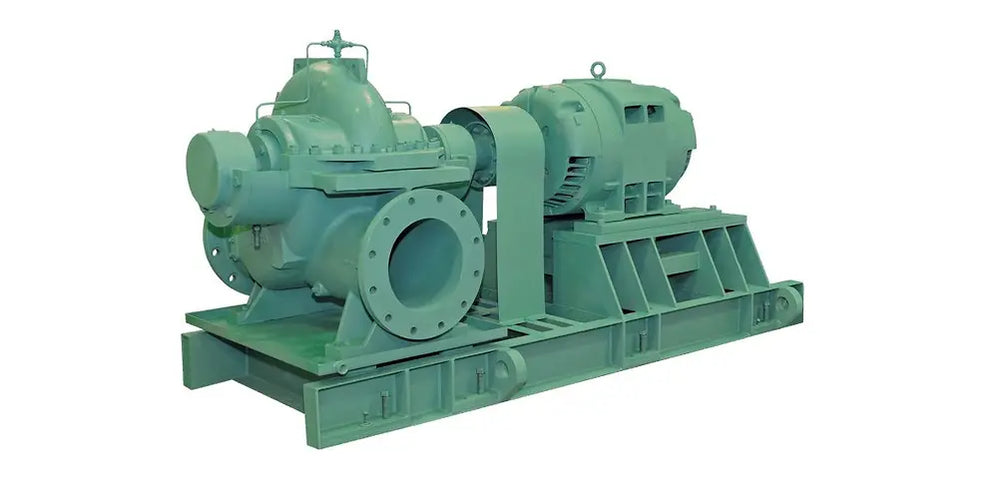

Taco GT Series Horizontal Split Case Pumps for Commercial HVAC, Pressure Boosting, Cooling Water Transfer, and Large Water Supply Systems
Taco GT Series Single-Stage, Double Suction Horizontal Split Case Pumps are designed for high-capacity water movement in commercial HVAC, heating, air conditioning, pressure boosting, cooling water transfer, and water supply applications. Built for large mechanical rooms, central plants, institutional facilities, and industrial water systems, the GT Series provides the flow, head, and durability needed for demanding high-volume pumping service.
The GT Series is Taco’s large-capacity horizontal split case pump platform, with performance ranges that extend well beyond many standard commercial pump families. Taco lists flow capabilities from 870 to 19,150 GPM, head ranges from 20 to 430 feet, horsepower from 50 to 1,500 HP, and pump sizes from 10" to 18", making this series a strong fit for major building systems and large water distribution applications.
The double suction hydraulic design helps support efficient, stable operation in high-flow systems. By bringing flow into both sides of the impeller, double suction pumps can help reduce axial thrust and improve hydraulic balance compared with single-suction configurations. This makes the GT Series especially suitable for applications where pump reliability, bearing life, and continuous operation are important.
Taco GT Series pumps are built with a cast iron pump casing, high-efficiency double suction bronze or stainless steel impeller, carbon steel or stainless steel shaft, bronze or stainless steel shaft sleeve, and mechanical seal construction. Taco describes the GT Series as providing reliability and ease of installation for heating, air conditioning, pressure boosting, cooling water transfer, and water supply applications.
Features
- Single-stage, double suction horizontal split case pump design
- Designed for high-capacity commercial HVAC and water transfer applications
- Horizontal split case construction for large mechanical room and central plant systems
- Double suction hydraulic design supports efficient high-flow operation
- Suitable for heating, air conditioning, pressure boosting, cooling water transfer, and water supply
- Cast iron pump casing
- High-efficiency double suction bronze or stainless steel impeller
- Carbon steel or stainless steel shaft options
- Bronze or stainless steel shaft sleeve options
- Mechanical seal designed for a wide range of applications
- Available for selection through Taco selection tools
- Suitable for water/glycol concentrations up to 50%
Applications
- Commercial HVAC systems
- Hot water heating systems
- Hydronic heating and cooling systems
- Closed cooling circuits
- Air conditioning systems
- Chilled water systems
- Condenser water systems
- Pressure boosting
- Cooling water transfer
- Water supply applications
- Large central plant pumping systems
- Industrial water circulation
- Large commercial buildings
- Solar and geothermal systems
