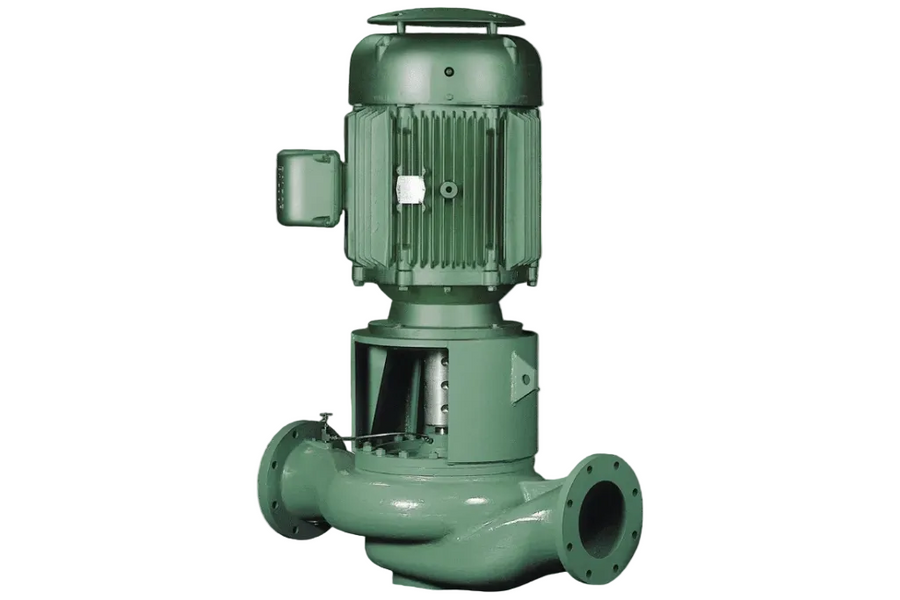

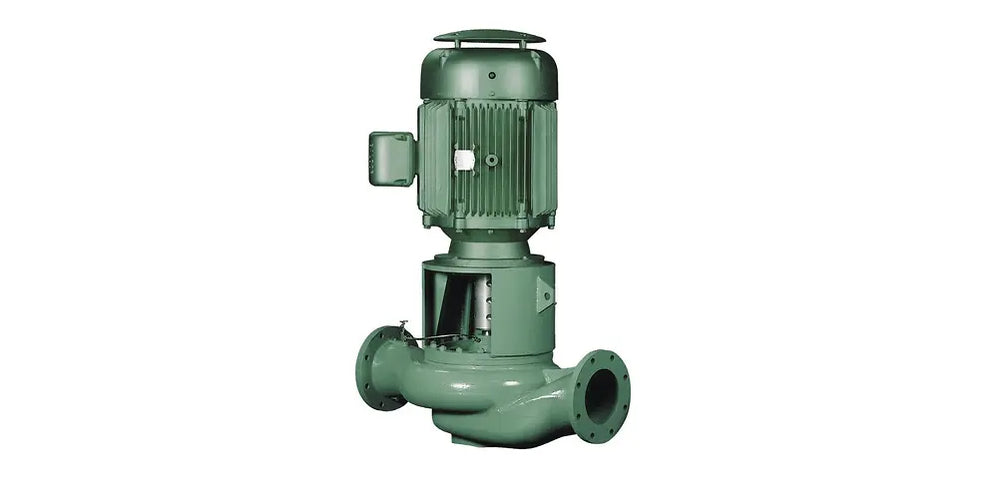

Taco KS Series Vertical Split-Coupled In-Line Pumps

Taco KS Series Vertical Split-Coupled In-Line Pumps for Commercial HVAC, Hydronic Systems, Pressure Boosting, and Industrial Water Service

Taco KS Series Vertical Split-Coupled In-Line Pumps are designed for high-performance water circulation in commercial HVAC, hydronic heating and cooling, pressure boosting, cooling tower, industrial, and domestic water service applications. Built for efficient operation, simplified installation, and easier maintenance, the KS Series provides a space-saving vertical in-line pump solution for demanding mechanical room environments.

The split-coupled design allows the mechanical seal to be changed without disturbing the motor or system piping, helping reduce service time and downtime. This makes the KS Series especially useful in commercial and institutional systems where service access, reliability, and long operating life are important.

Taco KS Series pumps are engineered with hydraulically balanced axial load to help increase bearing life, improve pump efficiency, and reduce NPSH requirements. A recirculating line helps flush the seal faces, supporting longer seal life and reducing downtime caused by seal issues. Close running impeller-to-casing clearances also help improve pump efficiency across the operating range.

With performance capabilities up to 12,000 GPM, heads up to 380 feet, horsepower ranges up to 600 HP, and pump sizes from 1-1/2" to 14", Taco KS Series Vertical Split-Coupled In-Line Pumps are built for large HVAC and industrial pumping systems that require dependable flow, efficient operation, and practical serviceability.

Features

• Vertical split-coupled in-line pump design
• Designed for commercial HVAC, hydronic, industrial, and domestic water service applications
• Space-saving in-line configuration for mechanical rooms
• Split-coupled design allows seal changes without disturbing motor or piping
• Simplified installation helps reduce installed cost
• Hydraulically balanced axial load helps increase bearing life
• Hydraulic design supports improved pump efficiency
• Lower NPSH requirements compared to less optimized designs
• Recirculating line helps flush seal faces and extend seal life
• Close running impeller-to-casing clearances support higher efficiency
• Standard seal design allows flexibility of seal options
• Precision aluminum coupling
• Motor drive is isolated from the system through the split-coupled design
• Standard high-efficiency impellers on all models
• Standard drilled and tapped mounting holes at base of casing
• Throttle bushing helps keep contaminants away from the seal
• Replaceable casing, wear ring, and pump support bracket support lower lifecycle cost
• Easy maintenance without disturbing motor or piping
• Performance range up to 12,000 GPM
• Head range up to 380 feet
• Horsepower range up to 600 HP
• Pump sizes from 1-1/2" to 14"

Applications

• Commercial HVAC systems
• Hydronic heating systems
• Hydronic cooling systems
• Chilled water systems
• Condenser water systems
• Pressure boosting
• Cooling towers
• Domestic water service
• Industrial water circulation
• Mechanical room pumping systems
• Commercial and institutional building systems
• Large-flow water circulation applications
