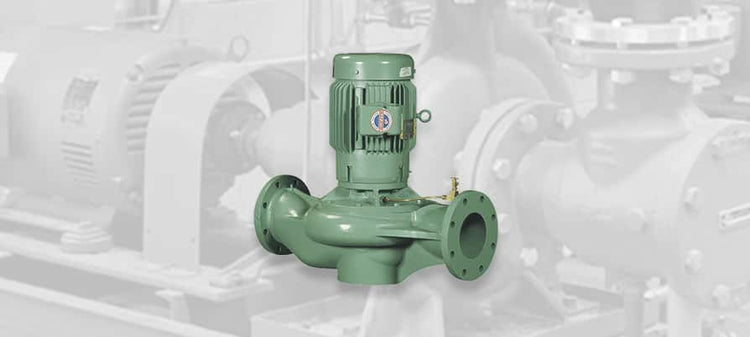

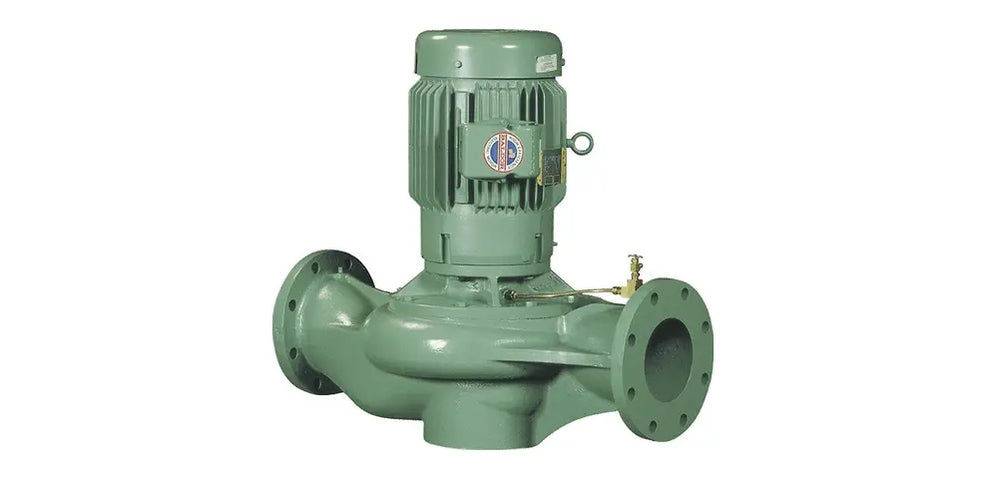

Taco KV Series Vertical In-Line Pumps for Commercial HVAC, Hydronic Heating, Cooling, and Water/Glycol Systems
Taco KV Series Vertical In-Line Pumps are designed for dependable water circulation in commercial HVAC, hydronic heating, closed cooling circuits, air conditioning systems, LoadMatch® systems, solar, geothermal, and water/glycol applications. Built for optimum performance and ease of installation, the KV Series provides a compact vertical in-line pump solution for mechanical rooms where floor space, service access, and reliable operation are important.
The close-coupled design helps improve pump and motor alignment while supporting longer seal life. Because the KV Series uses a simplified in-line configuration, it does not require isolation pads and can help reduce installation time, piping complexity, and overall installed cost. Taco also notes that service is easier because the pump can be pulled out from the back without disconnecting the pump from the piping system.
The KV Series is designed with several hydraulic and service features that support long-term performance. The axial load is hydraulically balanced to help increase bearing life, improve pump efficiency, and lower NPSH requirements. A recirculating line flushes the seal faces to help extend seal life, while the vertical in-line layout helps keep the footprint small in crowded mechanical spaces.
With flow performance from 10 to 2,650 GPM, head range from 11 to 385 feet, standard temperature capability of 250°F, optional temperature capability up to 300°F, standard working pressure of 175 PSIG, optional working pressure of 300 PSIG, horsepower from 3/4 to 60 HP, and sizes from 1-1/2" to 8", Taco KV Series Vertical In-Line Pumps are well suited for commercial heating, cooling, and hydronic distribution systems that require efficient, space-saving pump performance.
Features
- Vertical in-line pump design
- Close-coupled construction for improved alignment
- Compact footprint for mechanical room installation
- Does not require isolation pads
- Simplified in-line layout helps reduce installation time and cost
- Rear pullout service design
- Pump can be serviced without disconnecting it from the piping system
- Hydraulically balanced axial load helps increase bearing life
- Hydraulic design supports improved pump efficiency
- Lower NPSH requirements compared with less optimized designs
- Recirculating line flushes seal faces and helps extend seal life
- Designed for optimum performance and ease of installation
- Suitable for water/glycol concentrations up to 50%
Applications
- Commercial HVAC systems
- Hydronic heating systems
- Hydronic cooling systems
- Hot water heating systems
- Closed cooling circuits
- Air conditioning systems
- LoadMatch® systems
- Chilled water systems
- Water/glycol systems up to 50%
- Solar systems
- Geothermal systems
- Mechanical room pump installations
- Space-sensitive pump replacement applications
