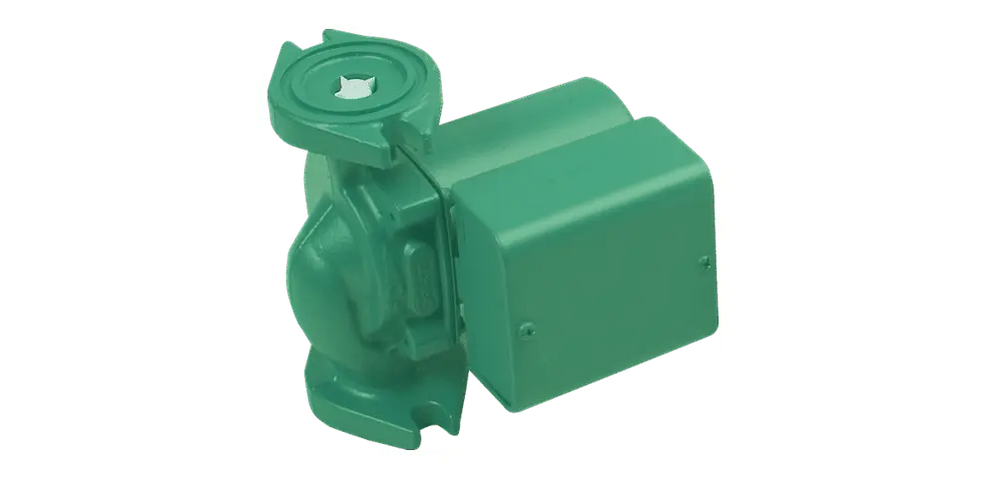

Taco LoadMatch Circulator Pumps

Taco LoadMatch Circulators for Fan Coil Heating, Cooling, and Single-Pipe Hydronic Systems

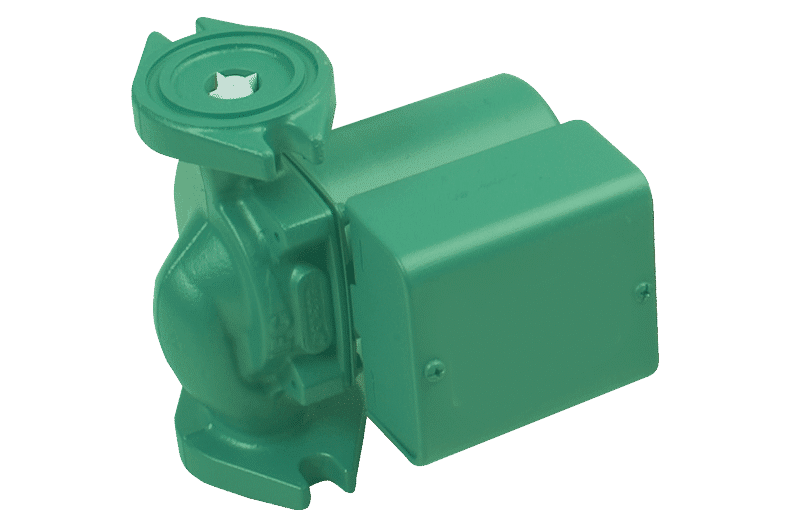

Taco LoadMatch® circulators are designed for quiet, efficient operation in LoadMatch® fan coil heating and cooling systems. Built for closed-loop, single-pipe hydronic designs, these circulators help move water directly to the load while supporting lower pump head, reduced horsepower requirements, and efficient zone-by-zone operation.

Each LoadMatch circulator includes a removable Integral Flow Check, or IFC®, which helps prevent gravity flow and can reduce installed cost by eliminating the need for a separate in-line flow check. For chilled water applications, the exclusive Anti-Condensate Baffle helps protect the motor windings from condensate build-up.

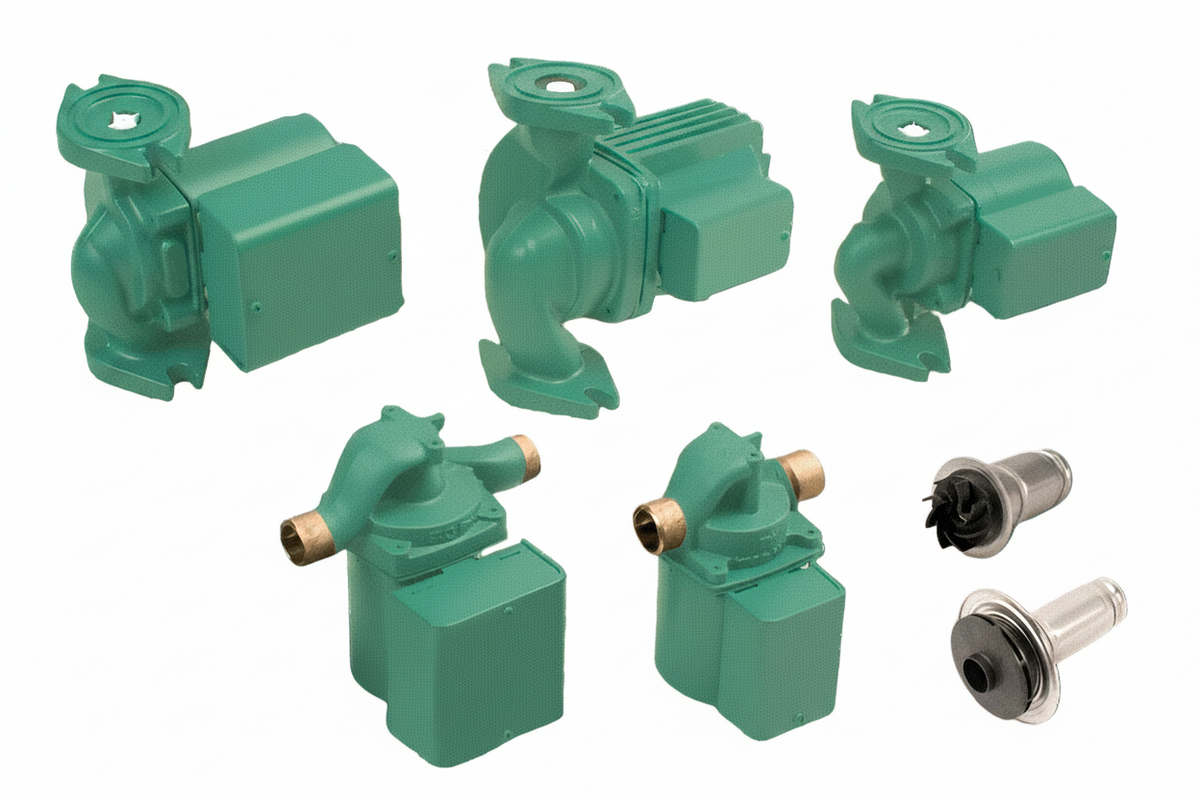

The field-serviceable cartridge design contains all moving parts, allowing the circulator to be rebuilt by replacing the cartridge. With no mechanical seal, a self-lubricating design, and maintenance-free operation, Taco LoadMatch circulators are built for reliable long-term performance in fan coil heating and cooling systems.

Available in multiple voltages and connection sizes, including flanged and sweat options, these circulators provide flexibility for commercial HVAC, hydronic heating, chilled water, and zoned LoadMatch system applications. Optional 0-10V variable speed control is also available for applications that require additional control flexibility.

Features

• Designed for Taco LoadMatch® fan coil heating and cooling systems
• Suitable for closed-loop, single-pipe hydronic system designs
• Quiet, efficient circulator operation
• Helps reduce pump head and horsepower requirements in zoned applications
• Removable Integral Flow Check, or IFC®, helps prevent gravity flow
• IFC design can reduce installation cost by eliminating a separate in-line flow check
• Anti-Condensate Baffle helps protect motor windings in chilled water applications
• Field-serviceable replaceable cartridge contains all moving parts
• Replacing the cartridge rebuilds the circulator
• No mechanical seal
• Self-lubricating, maintenance-free design
• Direct-drive, low-power operation
• Working pressure: 200 PSI
• Available voltages: 115V, 230V, and 277V
• Optional 0-10V variable speed control
• Connection sizes include 3/4", 1", 1-1/4", and 1-1/2" flanged options
• Sweat connection options available

Applications

• LoadMatch® fan coil heating systems
• LoadMatch® fan coil cooling systems
• Closed-loop single-pipe hydronic systems
• Commercial HVAC systems
• Zoned hydronic systems
• Chilled water circulation
• Heating water circulation
• Variable speed circulation applications
