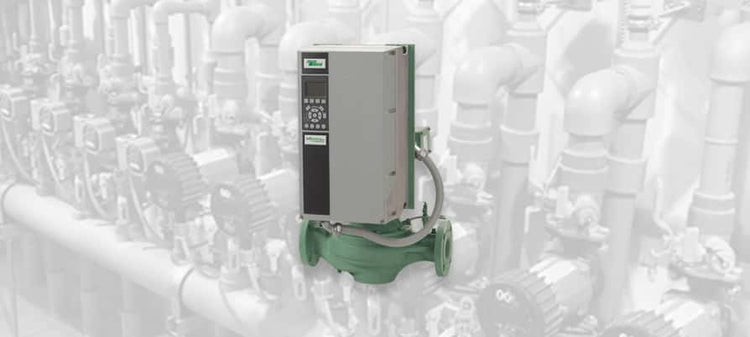

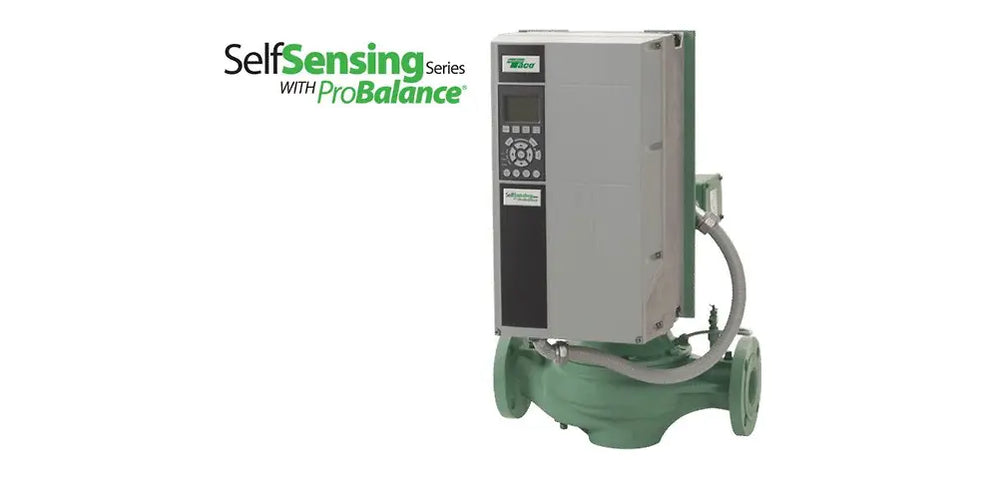

Taco SKV Series SelfSensing Vertical In-Line Pumps for Commercial HVAC, Hydronic Heating, Cooling, and Variable Flow Systems
Taco SKV Series SelfSensing Vertical In-Line Pumps are designed for commercial HVAC, hydronic heating, closed cooling, air conditioning, solar, geothermal, and water/glycol applications. Built as vertical in-line pumps with integrated drive technology, the SKV Series combines efficient pumping performance with advanced variable speed control for modern mechanical room systems.
The SKV Series uses Taco’s SelfSensing ProBalance® technology to simplify system balancing and variable flow operation. In constant flow mode, the pump automatically adjusts speed to maintain a user-defined flow set point, helping make do-it-yourself system balancing faster and more accurate. In variable flow mode, the pump adapts to system pressure changes and follows the system resistance curve to meet demand. This allows the same pump platform to support constant flow chiller and boiler pumping, as well as secondary variable flow applications.
Because the SKV Series integrates the pump and drive, it reduces the need for complex field wiring, remote differential pressure sensors, and separate control components. Taco also notes that the pump automatically responds to system demand changes, with available modes including constant flow, constant pressure, flow compensation, and duplex pump alternation.
With flow performance from 0.1 to 2,647 GPM, head range from 0.1 to 168 feet, standard temperature capability of 250°F, optional temperature capability up to 300°F, standard working pressure of 175 PSIG, optional 300 PSIG construction, horsepower from 1-1/2 to 75 HP, and sizes from 1-1/2" to 8", Taco SKV Series SelfSensing Vertical In-Line Pumps are built for commercial systems where efficiency, control, and simplified commissioning are important.
Features
- SelfSensing vertical in-line pump design
- Integrated pump and variable frequency drive
- Taco SelfSensing ProBalance® technology
- Designed for variable speed pumping applications
- Constant flow mode maintains a user-defined flow set point
- Variable flow mode adapts to system pressure changes
- Automatically follows the system resistance curve to meet demand
- Helps simplify system balancing and commissioning
- Reduces the need for remote sensors
- Reduces complex field wiring compared with separate pump and drive setups
- Pump automatically responds to system demand changes
- Multiple operating modes, including constant flow, constant pressure, flow compensation, and duplex pump alternation
- Parallel pumping operation available with Taco’s
- Modulating Pump Controller
- eLink® connectivity support for device data, performance access, monitoring, and control
- Suitable for water/glycol concentrations up to 50%
- Flow range: 0.1 to 2,647 GPM
- Head range: 0.1 to 168 feet
- Standard temperature rating: 250°F
- Optional temperature rating: 300°F
- Standard working pressure: 175 PSIG
- Optional working pressure: 300 PSIG
- Horsepower range: 1-1/2 to 75 HP
- Pump sizes: 1-1/2" to 8"
Applications
- Commercial HVAC systems
- Hydronic heating systems
- Hydronic cooling systems
- Hot water heating systems
- Closed cooling circuits
- Air conditioning systems
- Chilled water systems
- Boiler pumping systems
- Chiller pumping systems
- Secondary variable flow pumping
- Constant flow pumping applications
- Water/glycol systems up to 50%
- Solar systems
- Geothermal systems
- Mechanical room pump upgrades
- Building automation and monitored pump applications
