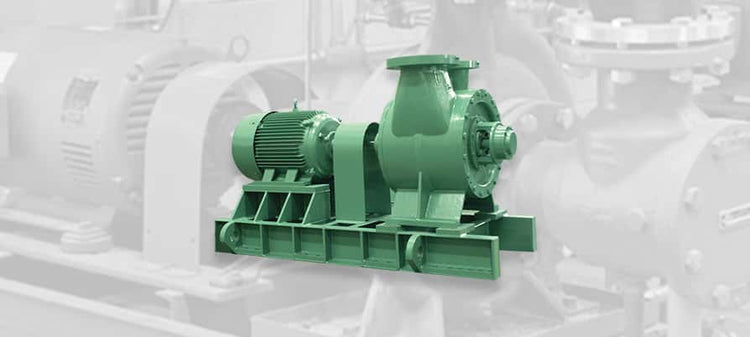

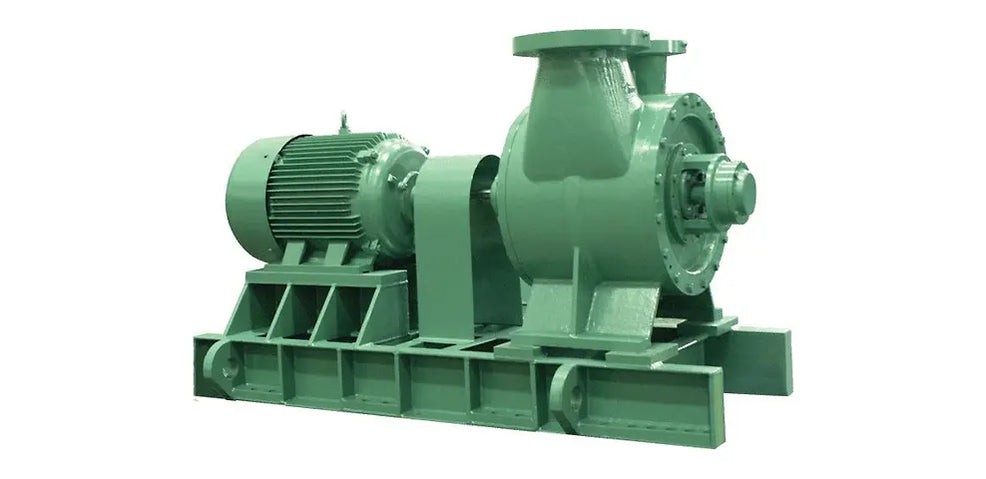

Taco TC Series Vertical Split Case Pumps for Commercial HVAC, Heating, Air Conditioning, Pressure Boosting, and Water Supply Systems
Taco TC Series Single-Stage, Double Suction Vertical Split Case Pumps are designed for reliable high-capacity water movement in commercial HVAC, heating, air conditioning, pressure boosting, cooling water transfer, and water supply applications. Built for large mechanical rooms and central plant environments, the TC Series combines double suction pump performance with a vertical split case layout that helps reduce the space required for installation.
The TC Series uses top suction and top discharge connections, making it a strong option where floor space is limited but high flow and dependable pump performance are still required. This vertical configuration helps minimize the installation footprint while supporting the flow and head demands of large heating and cooling water systems. Taco describes the TC Series as designed for reliability and ease of installation in heating, air conditioning, pressure boosting, cooling water transfer, and water supply applications.
As frame-mounted centrifugal pumps, Taco TC Series pumps feature high-efficiency construction, a rugged vertical split case design, compact layout, foot-mounted volute, center drop-out coupler, and regreasable bearings. These design details help simplify installation, operation, and long-term service in demanding commercial and institutional environments.
The double suction hydraulic design helps virtually eliminate axial thrust and reduce bearing loading, which supports longer bearing life and stable operation. With performance capabilities from 70 to 11,000 GPM, head range from 10 to 560 feet, standard temperature rating of 250°F, standard working pressure of 175 PSIG with optional 300 PSIG construction, horsepower from 2 to 800 HP, and sizes from 3" to 14", Taco TC Series Vertical Split Case Pumps are built for large-scale systems where efficiency, uptime, and serviceability matter.
Features
Single-stage, double suction vertical split case pump design
Designed for high-flow commercial HVAC and water transfer applications
Top suction and top discharge connections help minimize installation footprint
Vertical split case configuration supports easier installation, operation, and service
Frame-mounted centrifugal pump construction
High-efficiency double suction design helps reduce axial thrust
Reduced bearing loading helps promote longer bearing life
Rugged construction for demanding mechanical room environments
Compact design for space-sensitive high-capacity pumping applications
Foot-mounted volute
Center drop-out coupler for improved service access
Regreasable bearings
Weld-reinforced and grout-less base
Standard drip pan
Suitable for heating, air conditioning, pressure boosting, cooling water transfer, and water supply applications
Flow range: 70 to 11,000 GPM
Head range: 10 to 560 feet
Standard temperature rating: 250°F
Standard working pressure: 175 PSIG
Optional working pressure: 300 PSIG
Horsepower range: 2 to 800 HP
Pump sizes: 3" to 14"
Applications
- Commercial HVAC systems
- Heating water systems
- Air conditioning systems
- Chilled water circulation
- Condenser water systems
- Cooling water transfer
- Pressure boosting
- Water supply applications
- Institutional mechanical rooms
- Industrial water circulation
- Central plant pumping systems
- Large commercial buildings
- High-flow hydronic systems
- Mechanical room upgrades where footprint is limited
