Armstrong H65-1, 1HP, 115/230v, 1PH Circulator Pump 116487-132

SKU: AMC01-0125 Part Number: 116487-132 Model: H65-1

Price:
Sale price$3,978.95 Regular price$5,005.00

Save 21% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

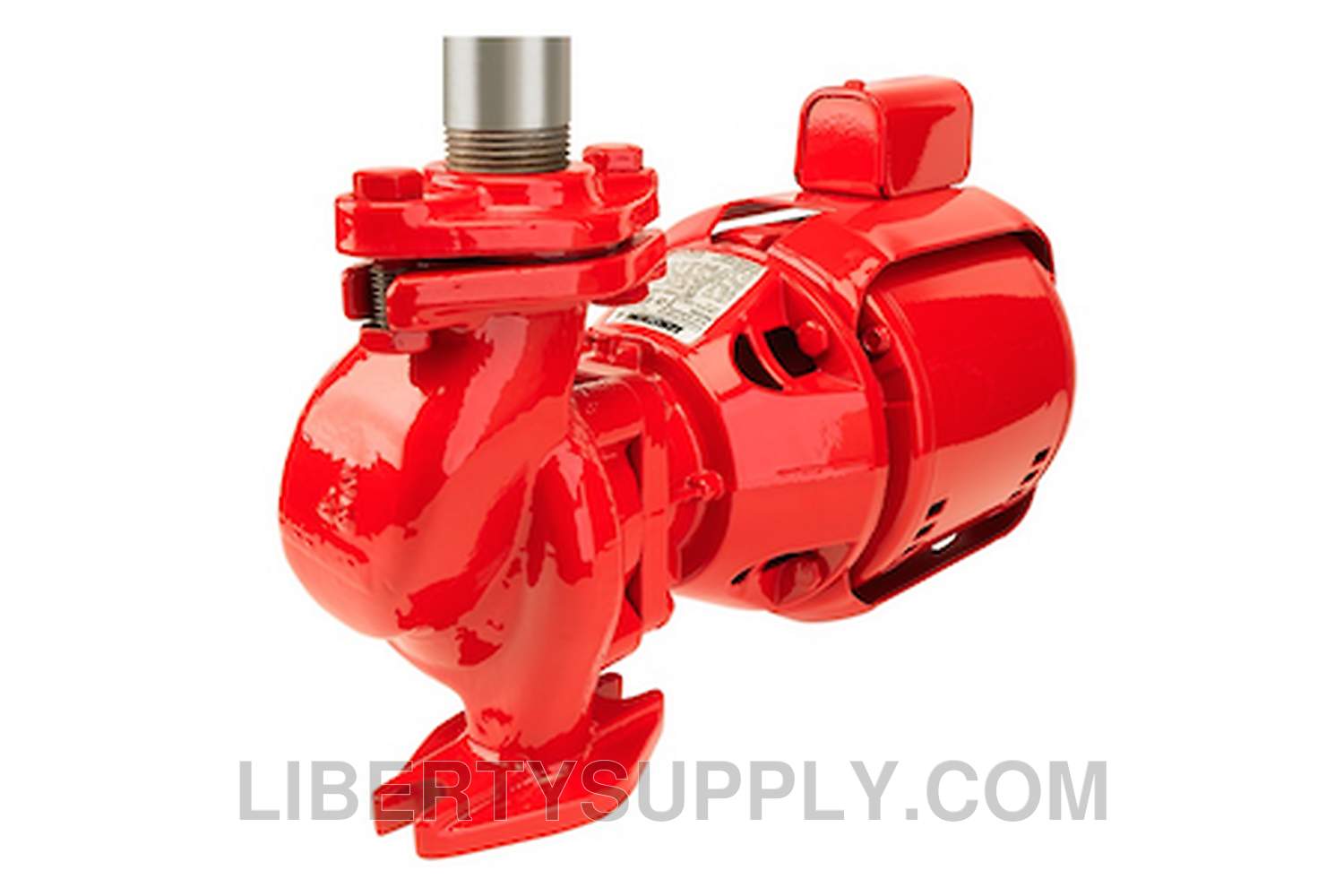

Model H65-1 three-piece circulator pump, that has a universal replacement shaft and bearing module, for HVAC systems. This circulator from Armstrong features a cast iron body with bronze-fitted design and a long-lasting seal design.

Specifications

Manufacturer Armstrong Fluid Technology
Part Number 116487-132
Model H65-1
Series S&H Series
Pump Type Circulator
Piping Configuration In-Line
Application HVAC Systems, General Purpose
Material Cast Iron, Bronze-Fitted
Horse Power 1 HP
Phase Single
Voltage 115/230v
RPM 1750 RPM
Hertz 60Hz
Maximum Pressure 125 psi
Maximum Temperature 225°F
Connection Size 1-1/2"
Connection Type Flanged
Flanges Included Yes
Enclosure ODP
Impeller Material Cast Bronze
Mechanical Seal Assembly EPDM
Bearing Type Sleeve Oil Lubricated
Shaft Material Carbon Steel with Copper Sleeve

About Armstrong Fluid Technology

Armstrong Fluid Technology is a global leader and innovator in intelligent fluid-flow solutions for HVAC, plumbing, and fire safety applications. Armstrong combines high-quality hardware, controls intelligence, and related services into fully integrated building energy solutions.
