Armstrong Series E.2 2/5HP, 3350RPM, 120v, 1PH In-Line Booster Pump 182212-667

SKU: AMC01-0645 Part Number: 182212-667 Model: E22.2

Price:
Sale price$2,174.95 Regular price$2,736.00

Save 21% Call 844-448-0880 for large volume pricing

Stock:
In stock (1 unit), ready to be shipped
 More payment options

Description

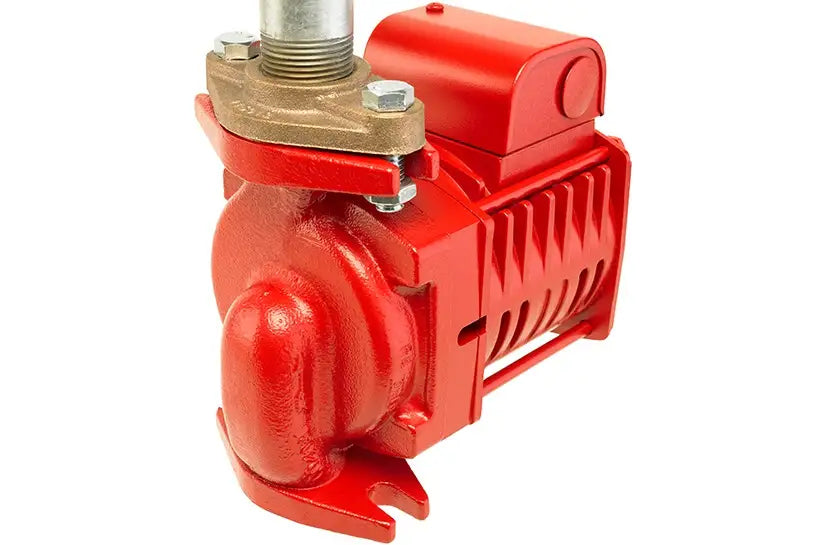

E22.2B 2/5 HP, single phase dry motor cast iron circulator pump that features a stainless steel shaft, permanently lubricated bearings, and a bellows-style mechanical seal with silicon carbide wear surface. Armstrong E.2 Series pumps can perform up to 140 gpm and 60 feet of head. They feature an easy to access mechanical seal and compact design that minimizes flange-to-flange dimensions. The E.2 Series is ideal for heating or cooling systems, such as hot water, geothermal, radiant panel, and snow melt in large residential and light commercial installations.

Specifications

Manufacturer Armstrong Fluid Technology
Part Number 182212-667
Model E22.2
Series Series E.2
Application Heating & Cooling
Pump Type Booster
Body Material Cast Iron
Connection Type Flanged
Flanges Included? No
Flange Connection Size(s) 1", 1-1/2", 1-1/4
Mounting Type In-Line
Motor Included Yes
Horse Power 2/5 HP
RPM 3350 RPM
Voltage 120v
Phase Single
Hertz 60Hz
Enclosure Type ODP
Maximum Temperature 230°F
Maximum Working Pressure 150 PSI

About Armstrong Fluid Technology

Armstrong Fluid Technology is a global leader and innovator in intelligent fluid-flow solutions for HVAC, plumbing, and fire safety applications. Armstrong combines high-quality hardware, controls intelligence, and related services into fully integrated building energy solutions.
