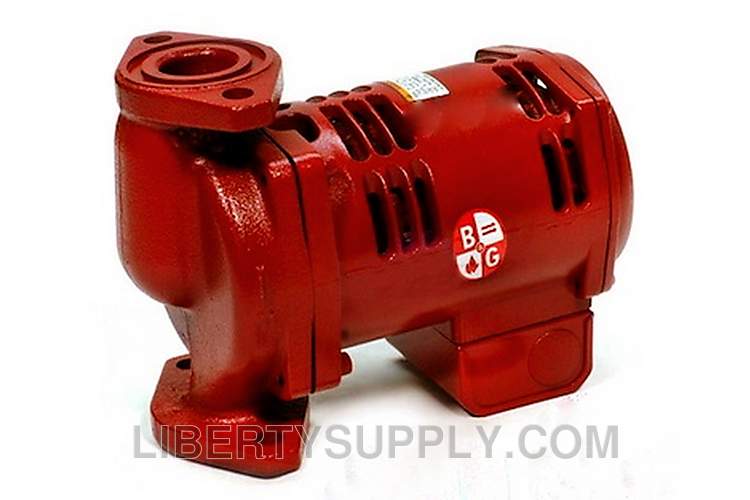

Bell & Gossett Series PL, 1/6 HP, 3300 RPM, 115v Pump 1BL001

SKU: BGC01-0305 Part Number: 1BL001 Model: PL-36

Price:
Sale price$513.95 Regular price$802.00

Save 36% Call 844-448-0880 for large volume pricing

Stock:
In stock (7 units), ready to be shipped
 More payment options

Description

Series PL-36 cast iron close-coupled booster pumps are used for hydronic, radiant, and geothermal heating and cooling systems. PL-36 pumps are permanently-lubricated with a 1/6 HP, 3300 RPM, 115v, single phase motor. Series PL pumps are reliable, in-line close-coupled booster pumps for hydronic, radiant, and geothermal heating and cooling systems. It's maintenance-free system, with a self-cleaning particle shield, and XL11 precision-crafted bearing system protect the shaft and bearings from system start-up debris. Unlike a wet rotor, Series PL pumps do not need to bypass system water via the motor to lubricate and cool the bearings. Mounting hardware and flange gaskets are included. Connections (union or flange) are available separately.

Specifications

Manufacturer Bell & Gossett
Part Number 1BL001
Model PL-36
Series Series PL
Application Heating & Cooling
Pump Type Booster
Body Material Cast Iron
Connection Type Flanged
Flanges Included? No
Flange Connection Size(s) 1", 1-1/2", 1-1/4", 3/4"
Mounting Type In-Line
Motor Included? Yes
Horse Power 1/6 HP
RPM 3300 RPM
Voltage 115v
Phase Single
Hertz 60Hz
Maximum Temperature 225°F

About Bell & Gossett

Bell & Gossett, a Xylem brand, is a world leader in HVAC, wastewater, and plumbing system solutions for the commercial building services industry. They offer numerous energy-efficient pumps, boosters, drives, valves, heat exchangers, controllers, and water systems for multiple applications, including steam and heat t... Learn more
