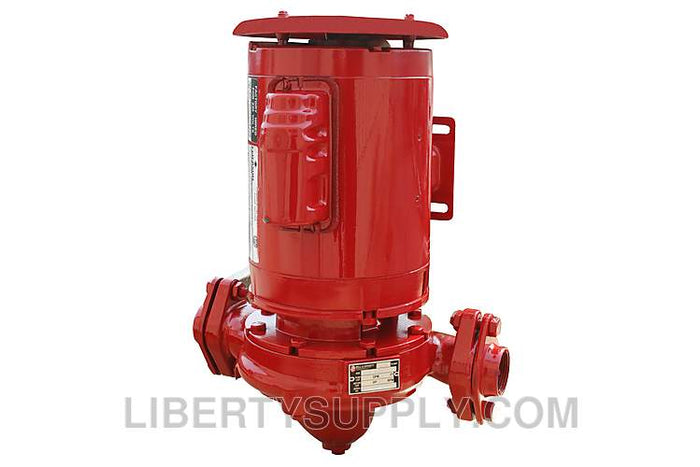

Bell & Gossett Series e-90, 1/3 HP, 1725 RPM, 115/208/230v Pump 179264LF

SKU: BGC01-1290 Part Number: 179264LF Model: e9015S

Price:
Sale price$2,039.95 Regular price$3,138.00

Save 35% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

3AAB Series e-90 3" flanged, cast iron close-coupled in-line centrifugal pump with a 1/3 HP, 115/208-230v, single phase, 60Hz, 1725 RPM, O.D.P motor. Series e-90 pumps have a -10°F to 250°F temperature range and 20-250 GPM range. They feature a back-pull-out design and can be mounted horizontally or vertically.

Specifications

Manufacturer Bell & Gossett
Part Number 179264LF
Model e9015S
Series Series e-90
Application Heating & Cooling
Pump Type Centrifugal
Body Material Cast Iron
Lead Free Yes
Connection Size 3"
Connection Type Flanged
Flanges Included? Yes
Pump Equivalent Size 3AAB
Mounting Type In-Line
Impeller Diameter 3-1/2"
Motor Included? Yes
Horse Power 1/3 HP
RPM 1725 RPM
Voltage 115/208/230v
Phase Single
Hertz 60Hz
Maximum Temperature 250°F
Maximum Working Pressure 175 PSI
