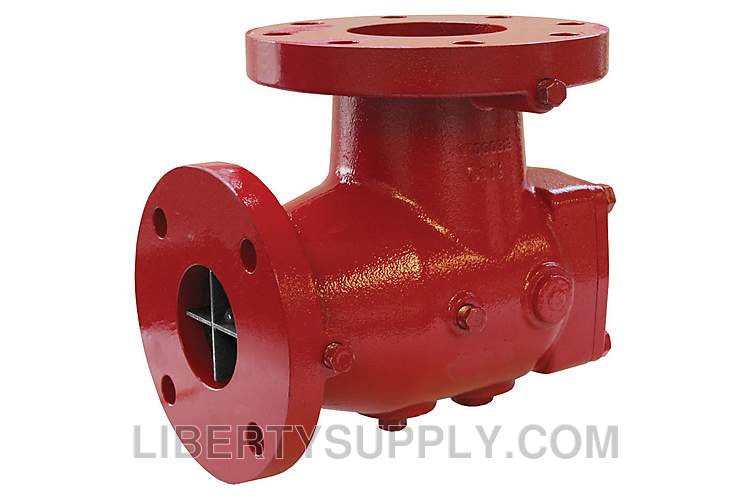

5" grooved (system side) x 5" flanged (pump side) SDG-5 suction diffuser with a cast iron body, 175 psi maximum working pressure, 250°F maximum operating temperature, EPDM o-ring, and 16 mesh bronze strainer. Bell & Gossett suction diffusers are angle-pattern fittings that optimize system performance. The patented Flow Cone eliminates recirculation zones by directing flow toward the pump, which reduces uneven stress on the impeller and shaft.
Specifications
Manufacturer
Bell & Gossett
Part Number
115043
Model
SDG-5
Application
Domestic Water
Body Material
Cast Iron
Inlet Size
5"
Outlet Size
5"
Connection Type
Grooved x Flanged
Screen Material
Bronze
Screen Size
16 Mesh
Maximum Pressure
175 PSI
Maximum Temperature
250°F
About Bell & Gossett
Bell & Gossett, a Xylem brand, is a world leader in HVAC, wastewater, and plumbing system solutions for the commercial building services industry. They offer numerous energy-efficient pumps, boosters, drives, valves, heat exchangers, controllers, and water systems for multiple applications, including steam and heat t... Learn more
