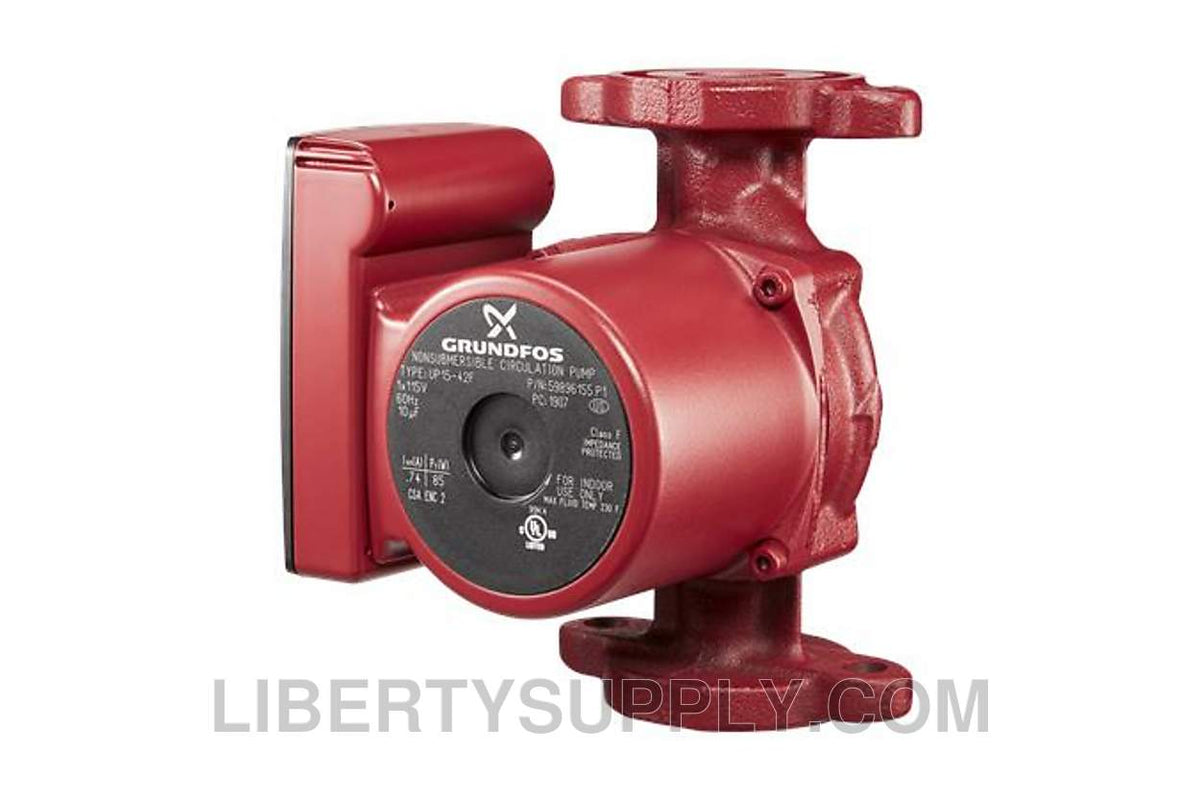

Grundfos 59896155, UP 15-42 F Single-Speed Circulator Pump

Roll over image to zoom in Click on image to zoom

Discontinued Direct Replacement Available

Grundfos 59896155, UP 15-42 F Single-Speed Circulator Pump

SKU:: GNC01-0005
MPN:: 59896155
Model:: UP15-42F

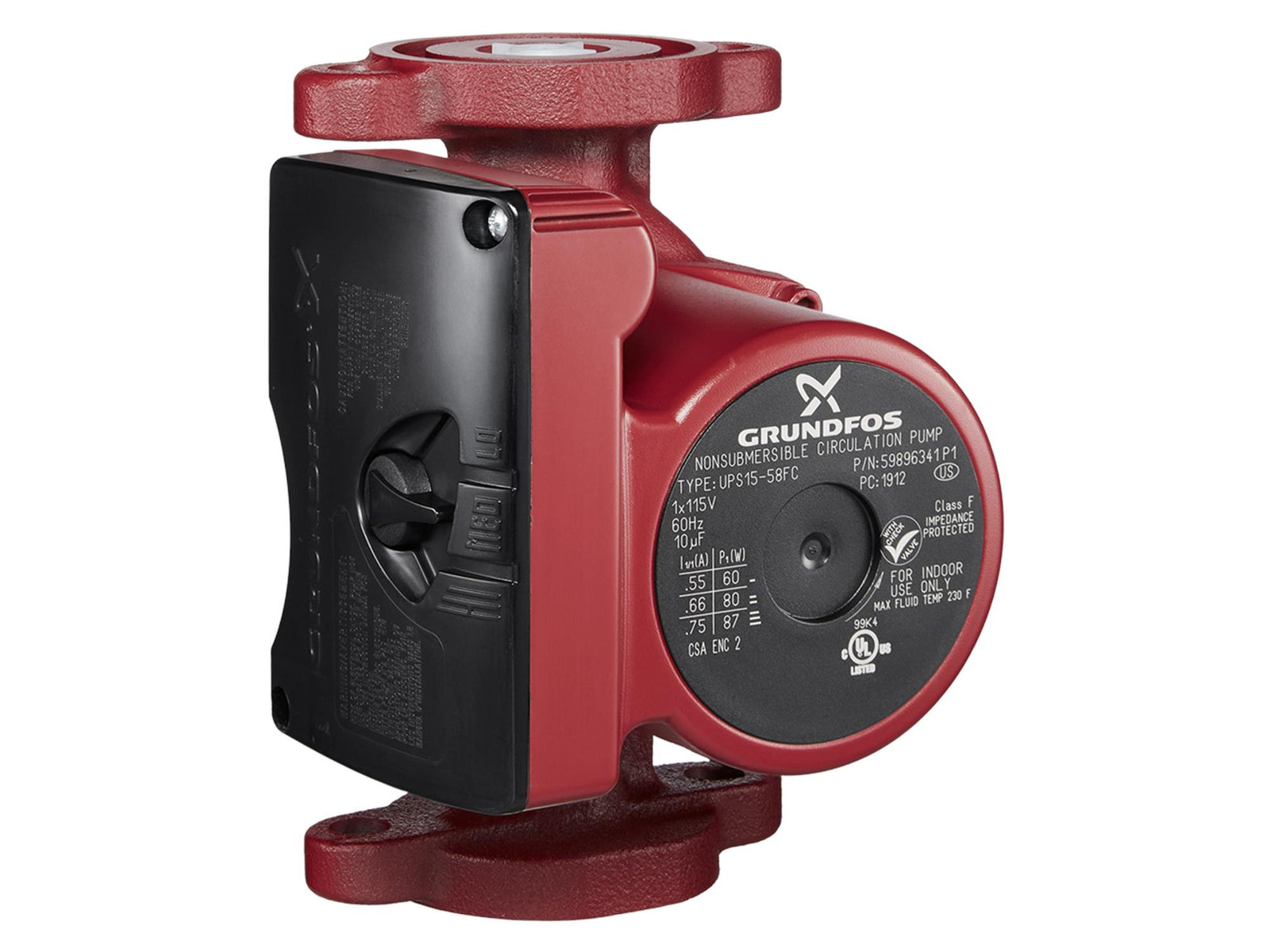

Grundfos 59896341, UPS15-58FC 115V Circulator Pump 1/25HP

$219.95

In stock (50+ units)

View Replacement

UP15-42F wet-rotor, cast iron circulator pump with a 1/25 HP, 3450 RPM, 115v, single phase motor for hydronic heating in closed loop systems. Flange gaskets are included, but flanges are sold separately. Grundfos UP Series pumps feature a canned rotor design in which the pump and rotor form an integral unit without a shaft seal to provide long life, excellent performance, and quiet operation. Internally lubricated bearings eliminate frequent lubrication. The UP Series' impeller is made out of corrosive-resistant, non-metallic material.

Manufacturer	Grundfos
Part Number	59896155
Model	UP15-42F
Speed Number	1
Rated flow	9.07 US gpm
Max flow	17.2 US gpm
Rated head	8.291 ft
Maximum head	15.09 ft
Approvals	UL, CSA
Pump housing	Cast iron, EN 1561 EN-GJL-150, ASTM A48-25B
Impeller	Composite, PES+30% GF
Maximum ambient temperature	104 °F
Ambient max at 176°F liquid	176 °F
Maximum operating pressure	145.04 psi
Type of connection	2-BOLT FLANGE, C.I. Flange
Pipe connection	2-BOLT FLANGE
Pressure rating for connection	PN 10
Port-to-port length	6.54 in
Pumped liquid	Water
Liquid temperature range	35.6 .. 230 °F
Selected liquid temperature	140 °F
Density	61.35 lb/ft³
Max. power input	85 W
Main frequency	60 Hz
Rated voltage	1 x 115 V
Current in speed 3	0.74 A
Number of poles	2
Insulation class (IEC 85)	F
Built-in motor protection	CONTACT
Thermal protec	internal
Terminal box position	9H
Net weight	6.43 lb
Gross weight	6.95 lb
