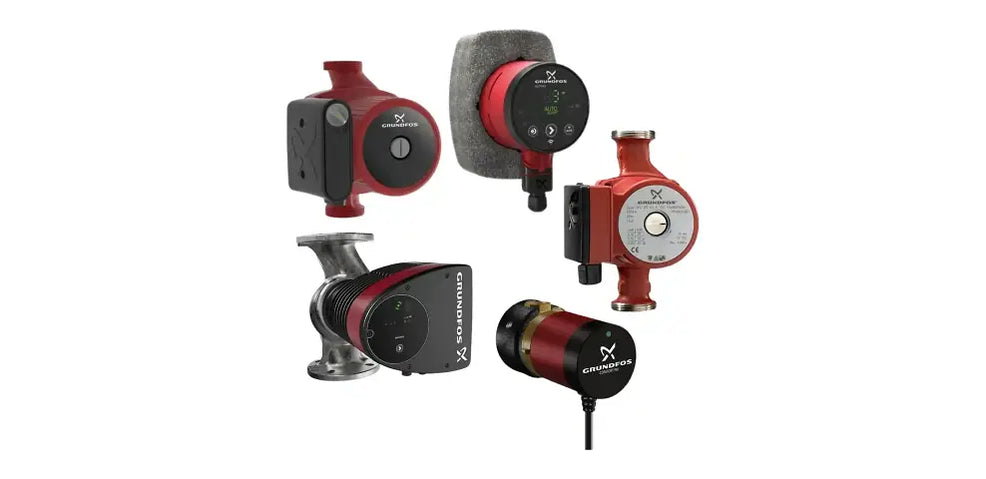

Grundfos circulator pumps are a reliable choice for industrial, commercial, and residential water systems. Known for their durable components and strong reputation for performance, these pumps offer high efficiency and can meet demanding applications.
Even with premium construction, a lack of preventive maintenance can lead to operational problems... Identifying common issues early and knowing how to troubleshoot them can save significant time and cost. Problems such as noise, overheating, or cavitation can negatively impact HVAC, hydronic, or domestic hot water (DHW) systems.
This guide helps you recognize the most common circulation pump issues and provides tips for resolving them. Taking action early ensures reliable operation and minimizes energy waste.
Common Circulation Pump Problems
- Reduced Water Circulation – May indicate blockages in the water line.
- Noisy Operation – Often caused by internal pump issues or trapped air in the system.
- Overheating Issues – Commonly linked to power supply or motor problems.
- Water Leakage – Could result from installation errors or worn components.
- Intermittent Starting and Stopping – Frequently related to a failing thermal sensor.
Electrical Checks Before Troubleshooting
- Power Supply – Verify the pump is receiving power and that all wiring is secure. Ensure the pump is switched on.
- Breakers and Fuses – Check for blown fuses or tripped breakers that may interrupt the circuit.
- Voltage – Use a multimeter to confirm the supply and pump terminals match the pump’s rated voltage.
Hydraulic checks
- Airlocks - Trapped air can cause unusual noise, pulsation, and reduced or intermittent flow. Check for air in high points and verify the system is filled correctly and vented.
- Pump Bleeding - It's the process of removing air trapped in the water system once it's identified; it also ensures the water lines are filled for efficient operation. Below are the steps to execute the pump bleeding and some tips:
- Turn off the pump.
- Locate the system’s bleed point (typically at a high point: bleed valve, vent, or purge point).
- Open the bleed device carefully and keep it open until a steady stream of water begins to flow.
- Re-tighten the valve/screw securely.
- Restart the pump and check whether its operation is quieter and whether the required pressure and flow are being achieved.
- Repeat if necessary.
- Flow and Pressure - Depending on the pump technology, you may have different ways to set up water flow and pressure in the system (electronically with VSD pumps or manually using balance valves for on/off pumps). Ensure that the design criteria are met as required by the project. The correct system design is crucial for optimized, efficient pump operation.
Mechanical Checks
Impeller Inspection - Low water flow rate, excessive vibration, and noise can indicate impeller failure. To check the impeller, you need to follow the steps below:
- Turn off the pump.
- Drain the pump system.
- Remove the housing case or volute casing.
- Perform a visual/manual inspection on the impeller.
- Check for damage, blockages, wear, or any imperfections on the impeller. If there is any problem with the impeller, replace it. (Grundfos impeller kits for replacement)
- Clean it and reassemble it.
- Refill the system and restart the pump.
Shaft Blockage - If the shaft is blocked, the pump will not operate correctly; this can cause overheating, tripped breakers, and no pressure in the system. Below are the steps to check the pump shaft:
- Turn off the pump.
- Drain the pump system.
- Remove the housing case or volute casing.
- Try rotating the shaft manually. It should rotate smoothly and freely. If it's stuck, resistant, or stiff, it may indicate shaft blockage.
- Perform a visual/manual inspection of the shaft, looking for physical obstructions, corrosion, bearing seizure, or damage.
- If the shaft does not rotate freely, inspect for debris, corrosion, bearing seizure, or a damaged seal assembly. Replace the affected parts as follows, step by step: Grundfos shaft kits for replacement.
- Replace it.
- Clean it and reassemble it.
- Refill the system and restart the pump.
Pump Shaft Dismantle
Below is a quick guide to help you to dismantle the pump shaft for blockage inspection:
- Remove the first part of the shaft seal.
- Remove the bearing.
- Remove the shaft seal.
- Use a pair of pliers to hang the stationary shaft part.
- Remove the stationary shaft.
- Remove the stationary shaft seal.
Safety: Isolate power, depressurize, and drain the section before opening any housings.
Common Problems - Troubleshooting Tips
Reduced Water Circulation
Causes
- Water pipe restrictions
- Impeller problems
- Pump sizing
Troubleshoot
- Check the water system pipework and its components for blockages in filters, bends, elbows, and valves.
- Perform an impeller inspection as described previously; if damaged, replace the impeller.
- Consult the pump chart to check if the pump was sized correctly. If the design water flow rate and pressure are outside the pump's operational field, a new well-sized pump will be required. Use the Grundfos Product Center to assist in an optimized selection.
Noisy Operation
Causes
- Airlocks
- Pump Internal issues
- Pump sizing
Troubleshoot
- Check whether the pipework is filled with sufficient water, and perform pump bleeding if required.
- Check the internal pump components, such as the shaft, impeller, and motor, and try to identify any damaged or malfunctioning parts. (Grundfos pump parts for replacement)
- Consult the pump chart to check whether the pump is operating outside the chart limits. If it is, it can cause noise. If possible, try to adapt the water flow rate to an acceptable point in the curve.
Overheating Issues
Causes
- Power supply issues
- Pump Internal issues
- Forced operation
Troubleshoot
- Perform the power supply checks described previously and certify the voltage in the pump terminals.
- Check the pump motors for burn marks or damaged parts, and replace them if required. (Grundfos motors for replacement)
- Check the water system operation and certify that the water is circulating smoothly; identify any pressure variations or pipework blockages that can be corrected to avoid forced operation.
Water Leakage
Causes
- Pipework installation
- Corroded components
- Pump seal
Troubleshoot
- Check for any damage in the pipework, junctions, curves, accessories, and elbows.
- Perform a visual inspection to check for corrosion on any water system components.
- Check the pump seal; it should be dry, with no water coming out. If damaged, it must be replaced. (Grundfos seal kits for replacement), Inspect the pump's NRV for any damage or recirculated water.
Pump Starts and Stops Intermittently
Causes
- Sensors or switches failure
- Blocked pressure line
- Faulty pump controller
Troubleshoot
- Inspect the line for dirt, corrosion, or debris. Further, inspect the thermal sensors and pressure switches and ensure that they are operating correctly.
- Inspect the pipework, especially the small ones, and clean and flush out any debris you find.
- Inspect the pump control panel and terminals, and identify any errors on the pump controller screen. If damaged, the controller must be replaced. (Grundfos pump controllers for replacement), Below is a step-by-step showing how to remove the Grundfos Alpha circulation pump controller cover.
Grundfos Alpha and UPSe online course
If you are troubleshooting Grundfos pumps in the Alpha or UPSe series, the quick course below provides a more didactic demonstration. It consists of a couple of videos showing the most common alarms, errors, and systems in a very dynamic way to make the diagnosis simple for technicians or even homeowners with no technical expertise:
Preventive Maintenance Tips for Longer Pump Life
- Maintenance Schedule - Preventive maintenance is more effective when performed regularly; consult the Grundfos circulation pump maintenance schedule for your model to create an optimized preventive maintenance timeline for your pump and system.
- Cleaning - Remove dirt and debris from the pump casing, housing, internal components, and pipework accessories per the maintenance schedule.
- Mechanical Checks - Inspect the pump seal, O-ring, and gaskets for wear, cracking, or hardening; replace them immediately if any damage is detected.
- Lubrication – Follow the model-specific manual. The pumped fluid lubricates many wet-rotor circulators and eliminates the need for bearing lubrication.
- Vibration and Noise - Perform visual and manual inspections to verify that noise and vibration levels are within acceptable limits.
- Electrical Components - Check the pump electrical terminal, motor, and connections per the preventive maintenance schedule, replacing any components as needed.
- System Test - After maintenance, test the system by monitoring water flow, pressure, electrical readings, and noise to ensure that everything is working correctly.
